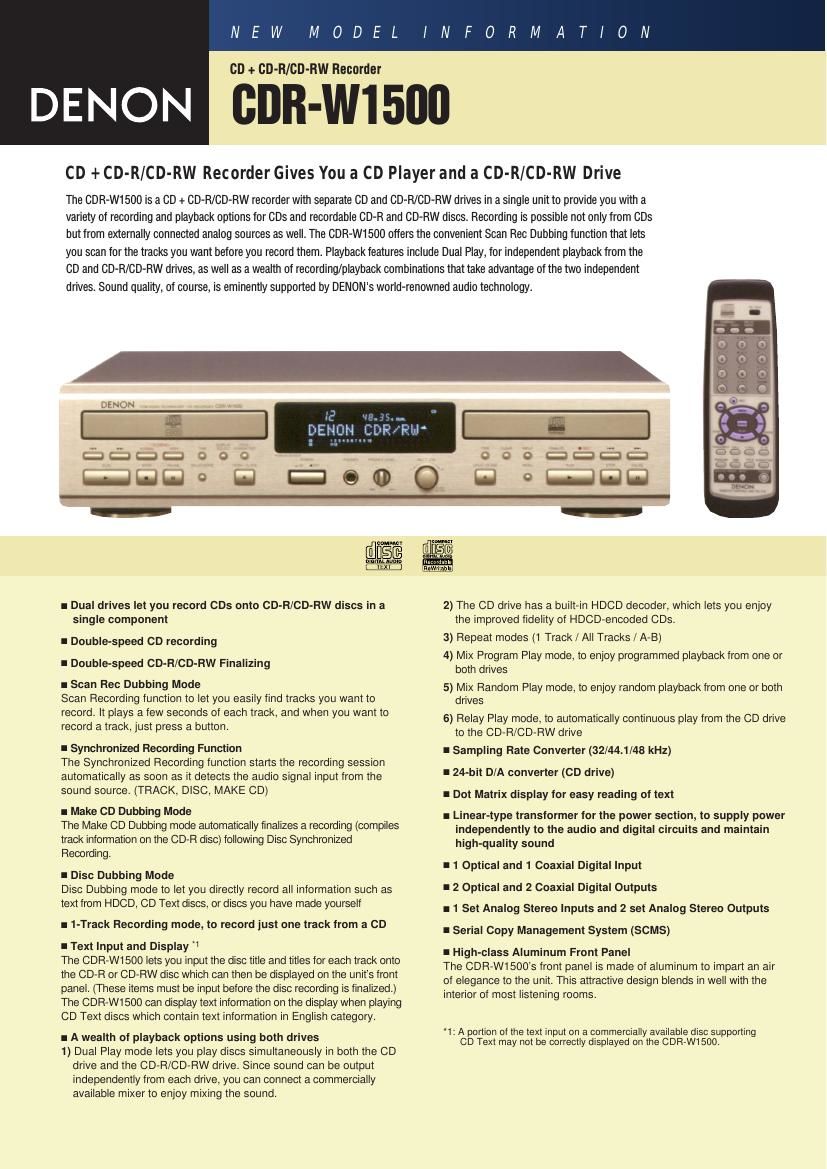

Denon CDR W1500 Brochure

Page 1

NEW MODEL

CD + CD-R/CD-Rw Recorder

NFORMATION

DENON BBB-W150!)

CD + CD-R/CD-RW Recorder Gives You a CD Player and a CD-R/CD-RW Drive

The CDRvW1500 is a CD + CD variety of recording and playback options for CDs and recordable CD~R and CD-RW discs. Recording is possible not only from CDs
but from externally connected analog sources as well. The CDRtWi 500 offers the convenient Scan Rec Dubbing function that lets
you scan for the tracks you want before you record them. Playback features include Dual Play, for independent playback from the
CD and CD-R/CDRW drives, as well as a wealth of recording/playback combinations that take advantage of the two independent
drives. Sound quality, of course, is eminently supported by DENON's world-renowned audio technology.

nun-u"

mm mm
E)

I Dual drives let you record CDs onto CD-Fl/CD-RW discs in a
single component

I Double-speed CD recording
I Double-speed CD-Ft/CD-RW Finalizing

I Scan Rec Dubbing Mode

Scan Recording function to let you easily find tracks you want to
record. It plays a few seconds of each track, and when you want to
record a track, just press a button.

I Synchronized Recording Function

The Synchronized Recording function starts the recording session
automatically as soon as it detects the audio signal input from the
sound source. (TRACK, DISC, MAKE CD)

I Make CD Dubbing Mode

The Make CD Dubbing mode automatically finalizes a recording (compiles
track information on the CD-R disc) following Disc Synchronized
Recording.

I Disc Dubbing Mode
Disc Dubbing mode to let you directly record all information such as
text from HDCD, CD Text discs, or discs you have made yourself

I 1-Track Recording mode, to record just one track from a CD

I Text Input and Display "

The CDR-W1500 lets you input the disc title and titles for each track onto
the CD-R or CD-RW disc which can then be displayed on the units front
panel. (These items must be input before the disc recording is finalized.)
The CDR-W1500 can display text information on the display when playing
CD Text discs which contain text information in English category.

I A wealth of playback options using both drives

1) Dual Play mode lets you play discs simultaneously in both the CD
drive and the CD-R/CD-RW drive. Since sound can be output
independently from each drive, you can connect a commercially
available mixer to enjoy mixing the sound.

2) The CD drive has a built-in HDCD decoder, which lets you enjoy
the improved fidelity of HDCD-encoded CDs.

3) Repeat modes (1 Track / All Tracks / A-B)

4) Mix Program Play mode, to enjoy programmed playback from one or
both drives

5) Mix Random Play mode, to enjoy random playback from one or both
drives

6) Relay Play mode, to automatically continuous play from the CD drive
to the CD-R/CD-RW drive

I Sampling Rate Converter (32/44.1/48 kHz)
I 24-bit D/A converter (CD drive)
I Dot Matrix display for easy reading of text

I Linear-type transformer for the power section, to supply power
independently to the audio and digital circuits and maintain
high-quality sound

I 1 Optical and 1 Coaxial Digital Input

l 2 Optical and 2 Coaxial Digital Outputs

I 1 Set Analog Stereo Inputs and 2 set Analog Stereo Outputs
I Serial Copy Management System (SCMS)

I High-class Aluminum Front Panel

The CDR-WISDO's front panel is made of aluminum to impart an air
of elegance to the unit. This attractive design blends in well with the
interior of most listening rooms.

1 : A ortion of the text input on a commercially available disc supporting
C Text may not be correctly displayed on the CDFl-Wt 500.
