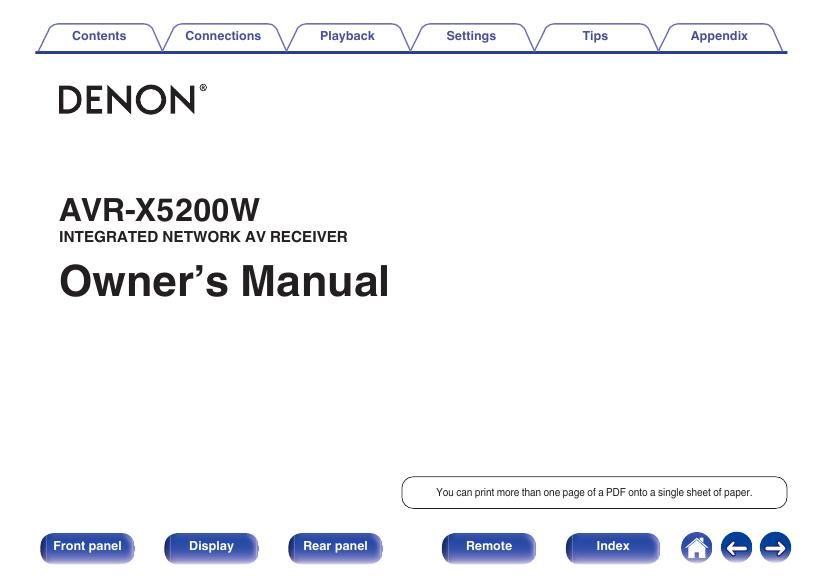

Denon AVR X5200W Owners Manual

Page 1

/ Contents VConnections V Playback V Settings V Tips V Appendix \
DENON®

AVR-X5200W

INTEGRATED NETWORK AV RECEIVER

Owners Manual

[ You can print more than one page oi a PDF onto a single sheet of paper. j

m ace

Page 2

mmmnections V Playback V Settings V Tips V Appendix \

Accessories 8 Connecting a playback device 59
Inserting the batteries 9 Connecting a set-top box (Satellite tuner/cable TV) 60
Operating range of the remote control unit 9 Connecting a DVD player or BIu-ray Disc player 61

Features 10 Connecting a Blu-ray Disc player compatible with the Denon Link
High quality sound 10 HD function 62
High performance 11 Connecting a video camcorder or game console 63
Easy operation 14 Connecting a turntable 64

Part names and tunctions 15 Connecting an iPod or USB memory device to the USB port 65
Front panel 15 Connecting an FM/AM antenna 67
Display 19 Connecting to a home network (LAN) 69
Rear panel 21 Wired LAN 69
Remote control unit 24 Wireless LAN 70

. Connecting an external control device 71

Connections REMOTE CONTROL jacks 71

Connecting speakers 28 TRIGGER OUT JECKS 72
Speaker installation 28 Connecting the power cord 73
Speaker connection 35
Speaker configuration and Amp Assign settings 38

Connecting a TV 55
Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) 56
Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) 57
Connection 3 : TV equipped without an HDMI connector 58

2 m oee

Page 25

/ Contents VConnections V Playback V Settings V Tips V Appendix \

9 666

8

,,m_ifl),
Front panel 1 Display

0 Information button (INFO)

This displays the status information on the TV screen. (It? 9. 244)
9 Cursor buttons (AV<1 [>)

These select items. (@ Q. 161)
® BACK button

This returns to the previous screen. (am)
0 System buttons

These perform playback related operations. (@fl)

- Skip buttons (K4, >>l)

- Play button (>)

- Search buttons (44, »)

- Pause button (II)

- Stop button (I)

Tuning up I Tuning down buttons (TUNE +, -)

These select either FM broadcast or AM broadcast. (@w
m Number / Character buttons

These enter letters or numbers into the unit. (@w, E)
a Remote control signal transmitter

This transmits signals from the remote control unit. (@fl)
(9 POWER button (d))

This turns the power on/off. (@M, E)

"5mm":

Page 101

Listening to Internet Radio

. Internet Radio refers to radio broadcasts distributed over the Internet
Internet Radio stations from around the world can be received

The Internet radio station list on this unit the database service provided
by vTuner radio station.

The audio format types and specifications supported by this unit for
playback are as follows.

0N LIN E See Playing an Internet Radio Station (i? Q 286) for details_
MUSIC m":
@- INTERNET . MPEG-4 AAC
RADIO
CHIPAGE u _
AV<1 D a! @- OPTION
ENTER Il T,"
BACK IQ >
I 53 I
§*\, , J

m 633::

Page 159

/ Contents V Connections V Playback \ In / Tips \ / Appendix \

This mode is not designed for use by the end user, and should only be used by a trained
service technician or custom installation professional.

Setting items Detailed items Description Page
Input Assign Changes input connector assignment. m
Source Rename Changes the display name for input source. &
Hide Sources Removes from the display input sources that are not used. &
Source Level Adjusts the playback level of the audio input. fl
Inputs Input Select Sets the audio input mode and decode mode. m
Audyssey® Setup The acoustic characteristics of the connected speakers and listening room are m
measured and the optimum settings are made automatically.
Manual Setup Sets up the speakers manually or changes the Audyssey® Setup settings. &
Speakers
Information Displays network information. &
Connection Selects whether to connect the home network to a wireless LAN or a wired LAN. @
Settings Used for manually setting the IP address or when using a proxy server. &
IP Control Enables network communication in standby power mode. &
Network Friendly Name The Friendly Name" is the name of this unit displayed on the network. You can change &
the Friendly Name according to your preferences.
Diagnostics Used to check the network connection. &
Maintenance Mode Used when receiving maintenance from a Denon service engineer or custom installer. @

Front panel i

Display

-i m» 633::

Page 170

/ Contents VConnections V Playback \ In / Tips \ / Appendix \

Audio Delay

Compensates for incorrect timing between video and audio.
0 ms - 200 ms (Default: 0 ms)

- Audio Delay for game mode can be set when "Video Mode' is set to Auto" or
Game". (1? g. 183)
. Audio Delay settings are stored for each input source.

Volume

Set the MAIN ZONE (room where the unit is located) volume setting.
I Scale

Set how volume is displayed.

0 - 98
(Default):

Display in the range 0 (Min) f0 98.

Display ---dB (Min), in the range -79.5 dB

-79.5 dB - 18.0 dB: to 18.0 dB.

Scale" settings are reflected in all the zones.

Front panel Display 170

I Limit

Make a setting for maximum volume.
60 (-20 dB) l 70 (-10 dB) l 80 (0 dB)
Off (Default)

Power On Level
Define the volume setting that is active when the power is turned on.

Last Use the memorized setting from the last
(Default): session.
Mute' Always use the muting on condition when

power is turned on.
1 - 98 (-79 dB - 18 dB) : The volume is adjusted to the set level.

Mute Level

Set the amount of attenuation when muting is on.

Full . .

(D elault): The sound Is muted entirely.

-40 dB : The sound is attenuated by 40 dB down.
-20 dB : The sound is attenuated by 20 dB down.

moeo

Page 221

/ Contents V Connections V Playback \ In / Tips \ / Appendix \

I Surr. Back

Set the presence, size and number of surround back speakers.

Use a large speaker that can adequately

I Front Wide

Set the presence and size of the front wide speakers.

Use a large speaker that can adequately

Large: play back very low bass frequencies. Large: play back very low bass frequencies.
Small Use a small speaker that has inadequate Small Use a small speaker that has inadequate
(Default): playback capacny for very low bass (Default): playback-capacity for very low bass
frequenCIes. frequenCIes.
None' Select when the surround back speakers None- Select when the front wide speakers are
' are not connected. ' not connected.
2 spkrs I Front Height
Use two surround back s eakers.
(93): p Set the presence and size of the front height speakers.
Use only one surround back speaker. Lar 9' Use a large speaker that can adequately
1 SP: Sigrahgftfiils- :22??? : i-JZFLOUND g ' play back very low bass frequencies.
9 s e c ' Small Use a small speaker that has inadequate
, (Default)' playback capacity for very low bass
fr ' frequencies.
ll Surr. Back" is None" or 1 spkr, Back Dolby" is automatically None. None- Select when the front height speakers are

Front panel

Display

Rear panel

not connected.

m 666

Page 231

/ Contents VConnections V Playback \ In / Tips \ / Appendix \

Network

To use this unit by connecting it to a home network (LAN), you must configure network settings.
If you set up your home network (LAN) via DHCP, set DHCP to On". (Use the default setting.) This allows this unit to use your home network (LAN).

When assigning an lP address to each device manually, you need to assign an IP address to this unit using the IP Address settings, and enter
information about your home network (LAN) such as the gateway address and subnet mask, etc.

Display network information. Choose whether to connect the home network to a wireless LAN or a
wired LAN.
Friendly Name / Connection / SSID / DHCP / IP Address] When connecting to the network using wired LAN, select Wired
MAC Address (Ethernet)" after connecting a LAN cable,
When connecting to the network using wireless LAN, select Wireless (Wi-
. Fi)" and configure the Wi-Fi Setup.
MAC Address is required to create a vTuner account. I connect Using

Select the method for connecting to the home network (LAN).

Wired (Ethernet): Use a LAN cable to connect to a network.

Wireless (Wi-Fi): gsaertlléewwgrleless LAN (WI-Fl) function to connect

m «sea

Page 232

/ Contents V Connections V Playback \ In / Tips \ / Appendix \

Connect to a wireless LAN (Wi-Fi) router.
The router can be connected in the following ways. Select the connection
method to suit your home environment.

I Scan Networks
Select the network you wish to connect to from the list of possible
networks shown on the TV screen.
1. Select the network you wish to connect to from the list of wireless
networks.

Select Rescan if the network cannot be found.
2. Enter your password and select OKK

I Use iOS Device

Use your iOS device (iPhone/iPod/iPad) to connect to the network. By
connecting your iOS device to this unit, the unit can be automatically
connected to the same network as your device.

This unit can be connected to your iOS device in two ways, using a
USB cable and using Wi-Fi.

Front panel Display 232

El When connecting using Wi-Fi

. Select Wireless connection" on the TV screen.

. Check that your iOS device is connected to the wireless LAN
(Wi-Fi) router and select Denon AVR-X5200W from SET UP
NEW AIRPLAY SPEAKER... at the bottom of the Wi-Fi
configuration screen of your iOS device.

. Tap Next" on the screen of the iOS device.

T e iOS device firmware version needs to support i057 or later.

N4

9:

El When using a USB cable

. Select USB cable on the TV screen.

. Check that your iOS device is connected to the wireless LAN
(Wi-Fi) and connect it to the USB port on the front panel using a
USB cable.

. Select Connect" on the TV screen.

. Tap Allow" when the connection message appears on the
screen of your iOS device

it

The iOS device firmware version needs to support i035 or later.

"-5

ho)

moeo

Page 242

/ Contents VConnections V Playback \ In / Tips \ / Appendix \

Zone Rename

Change the display title of each zone to one you prefer.
MAIN ZONE / ZONEZIZONES
Set Defaults: The default setting is restored for the edited zone name.

Up to 10 characters can be input.
For character input, see Using the keyboard screen' (@ Q. 163).

O k Select Names

Change the quick select name that appears on the TV screen to one you
prefer.

Quick Select 1 /Quick Select 2 I Quick Select 3 I Quick Select 4

The default setting is restored for the edited quick select
name.

Set Defaults:

Trigger t 1 / Trigger Out 2

Select the conditions for activating trigger out.
For details about how to connect the TRIGGER OUT jacks, see
TRIGGER OUT jacks" (It? 9. 72).

El When setting for zone (MAIN ZONE IZONE2l
ZONE3)

Trigger out is activated through linkage to the power of the zone set to
0an

El When setting for input source
Activates trigger out when the input source set to On" is selected.

CI When setting for HDMI monitor
Activates trigger out when the HDMI monitor set to On" is selected.

On: Activate trigger on this mode.

- - -: Do not activate trigger on this mode.

Up to 16 characters can be input.
For character input, see Using the keyboard screen' (@ Q. 163).

Front panel Display 24

2-mooo

Page 273

/ Contents VConnections V Playback V Settings

Tips

I Music files on PC or NAS cannot be played back

Symptom Cause I Solution Page

Files stored on a computer . Files are stored in a non-compatible format. Record in a compatible format. &
cannot be played. - Files that are copyright protected cannot be played on this unit. ,

. The sets USB port cannot be used for connection to a computer. ,

- Media sharing settings are not correct. Change media sharing settings so that the unit can access the m

folders on your computer.

Server is not found, or it is - The computers or routers firewall is activated. Check the computers or routers firewall settings. ,
not possible 0 connect to . Computers power is not turned on. Turn on the power. ,
the server.

- Server is not running. Launch the server. ,

. Set's IP address is wrong. Check the sets IP address. a
Music files on PC cannot - Even if PC is connected to the USB port on this unit, music files on it cannot be played back. Connect PC Q
be played back. to this unit through the network.
Files on PC or NAS are not . Files of a type not supported by this unit are not displayed. &
displayed.
Music stored on a NAS . If you use a NAS in conformity with the DLNA standard, enable the DLNA server function in the NAS ,
cannot be played. setting.

- If you use a NAS that does not conform with the DLNA standard, play the music via a PC. Set Windows fl

Media Players media sharing function and add NAS to the selected play folder.

- If connection is restricted, set audio equipment as the connection target. ,

l Various online services cannot be played
Symptom Cause I Solution Page

Various online services
cannot be played.

. The online service may have been discontinued.

Front panel i

Display 1

» mi ooo
