Denon AVR X1200W Owners Manual

Page 1

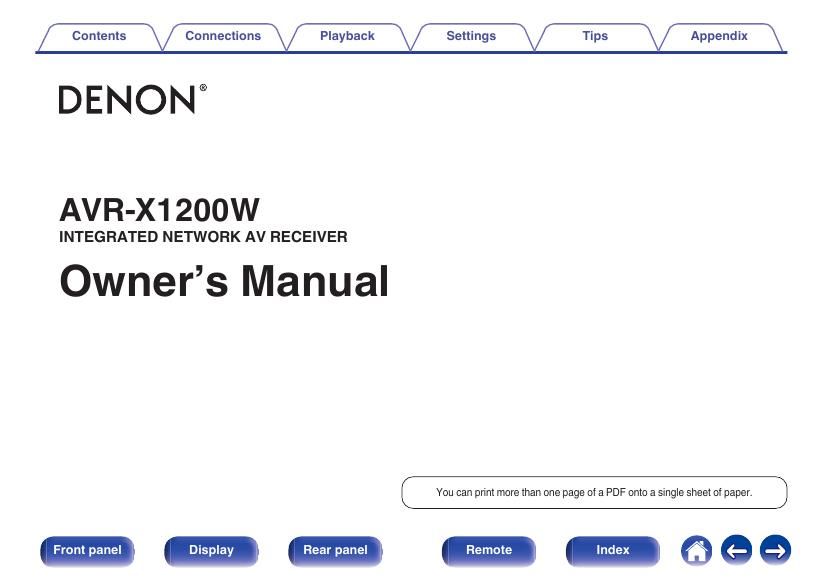

/ Contents VConnections V Playback V Settings V Tips V Appendix \
DENON®

AVR-X1200W

INTEGRATED NETWORK AV RECEIVER

Owners Manual

[ You can print more than one page oi a PDF onto a single sheet of paper. j

~ m «we

Page 2

mmmnections V Playback

V Settings V Tips V Appendix \
Connecting a playback device 51
Connecting a set-top box (Satellite tuner/cable TV) 52
Connecting a DVD player or BIu-ray Disc player 53
Connecting a video camcorder or game console 54
Connecting an iPod or USB memory device to the USB port 55
Connecting an FMIAM antenna 57
Connecting to a home network (LAN) 59
Wired LAN 59
Wireless LAN 6O
Connecting the power cord 61
Playback
Basic operation 63
Turning the power on 63
Selecting the input source 63
Adjusting the volume 64
Turning off the sound temporarily (Muting) 64
Playback a DVD player/BIu-ray Disc player 64

Accessories 7
Inserting the batteries 8
Operating range of the remote control unit 8

Features 9
High quality sound 9
High performance 9
Easy operation 12

Part names and tunctions 13
Front panel 13
Display 16
Rear panel 18
Remote control unit 21

Connections

Connecting speakers 25
Speaker installation 25
Speaker connection 32
Speaker configuration and Amp Assign settings 86

Connecting a TV 47
Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) 48
Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) 49
Connection 3 : TV equipped without an HDMI connector 50

; 2 m ooo

Page 44

Connections Playback V Settings V Tips V Appendix \

l Applied configuration and connection

CI 5.1 -channel (bi-amp connection of front speaker)

This is a method of connecting separate amplifiers to the tweeter terminals and woofer terminals of bi-amp compatible speakers This connection

enables back EMF (power returned without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a
higher sound quality.

NOTE

. When making bi-amp connections, be sure to remove the short-circuiting plate or
wire between the speakers woofer and tweeter terminals.

~ 44 m 6363

Page 174

/ Contents VConnections V Playback \ In / Tips \ / Appendix \
Error messages

An error message is displayed if Audyssey® Setup could not be completed due to speaker placement, the measurement environment, etc. If an error
message is displayed, check the relevant items and perform the necessary measures Be sure to turn off the power before checking speaker connections.

Examples Error details Measures
No speakers found. . Sound calibration microphone is not - Connect the included Sound calibration microphone to the
detected. SETUP MIC jack of this unit.
. Not all speakers could be detected. - Check the speaker connections.
Ambient noise is too high or level is too . There is too much noise in the room. - Either turn off any device generating noise or move it away.
low - Perform again when the surroundings are quieter.
. Speaker or subwoofer sound is too low. - Check the speaker installation and the direction in which the
speakers are facing.
- Adjust the subwoofers volume.
Front Fl : None . The displayed speaker could not be . Check the connections of the displayed speaker.
detected.
Front R : Phase . The displayed speaker is connected with the - Check the polarity of the displayed speaker.
polarity reversed. - For some speakers, this error message may be displayed
even if the speaker is properly connected. If you are sure the
connection is correct, press l> to select Ignore", then press
ENTER.

moo:

Page 191

/ Contents V Connections V Playback \ In / Tips \ / Appendix \

Configure the proxy settings and IP address. Selects how to connect to the network.

. If you are using a broadband router (DHCP function), the information On Configure the network settings
required for network connection such as the IP address will be (Default): automatically from your router.
automatically configured since the DHCP function is set to On" in the off: Configure the network settings manually.

default settings of this unit.
. Set up the IP Address, Subnet Mask, Default Gateway and DNS server I IP AddIESS
information only when assigning a fixed IP address or when connecting
to a network without DHCP function.
. Configure the proxy settings when using a proxy server to connect to
the Internet.

Set the IP address within the ranges shown below.
. The Network Audio function cannot be used if other IP addresses
are set.
CLASS A:10.0.0.1 - 10.255.255.254
CLASS B:172.16.0.1 -172.31.255.254
CLASS C:192.168.0.1 - 192.168.255.254

I Subnet Mask

When connecting an xDSL modem or connector adapter directly to
this unit, input the subnet mask indicated in the documentation
supplied by your provider. Normally input 255.255.2550.

5 Settings

DHCP

m 695

Page 247

/ Contents VConnections V Playback V Settings V Tips

WEP Key (network key)

This is key information used forencrypting data when conducting data
transfer. On this unit, the same WEP key is used for data encryption and
decryption, so the same WEP key must be set on both devices in order for
communications to be established between them.

Wi-Fi®

Wi-Fi Certification assures tested and proven interoperability by the Wi-Fi
Alliance, a group certifying interoperability among wireless LAN devices.
WPA (Wi-Fi Protected Access)

This is a security standard established by the Wi-Fi Alliance. In addition to
the conventional SSID (network name) and WEP key (network key), it also
uses a user identification function and encrypting protocol for stronger
security.

WPA2 (Wi-Fi Protected Access 2)

This is a new version of the WPA established by the Wi-Fi Alliance,
compatible with more secure AES encryption

Front panel Display 1

WPA-PSKIWPAZ-PSK (Pre-shared Key)

This is a simple authentication system for mutual authentication when a
preset character string matches on the wireless LAN access point and
client.

WPS (Wi-Fi Protected Setup)

This is a standard drawn up by the Wi-Fi Alliance to ease the task of
setting up wireless LAN connections and configuring security.
Network Names (SSID: Service Set Identifier)

When forming wireless LAN networks, groups are formed to prevent
interference, data theft, etc. These groups are based on SSID (network
names)". For enhanced security, a WEP key is set so that communication
is unavailable unless both the SSID and the WEP key match. This is
suitable for constructing a simplified network.

mace
