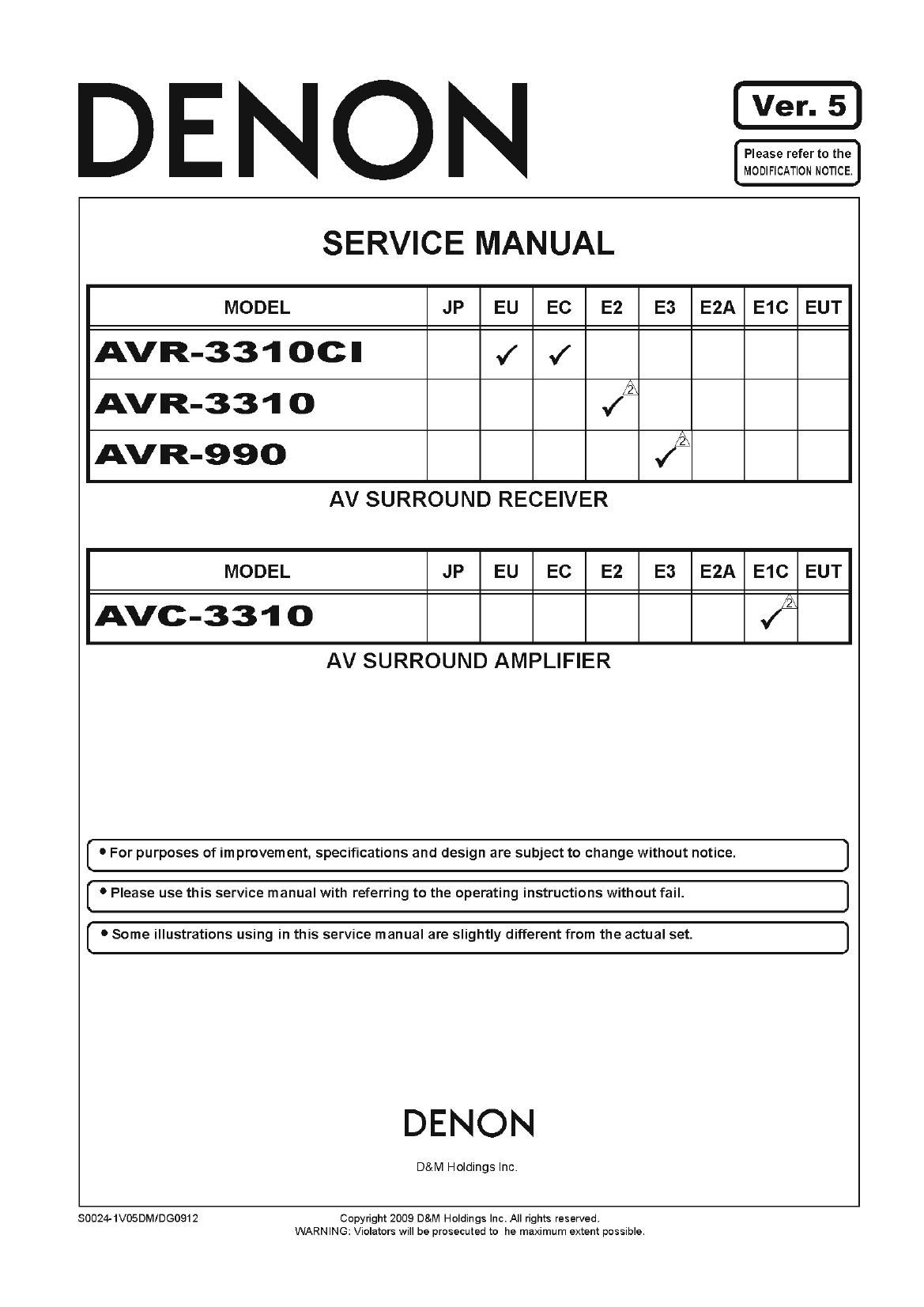

Denon AVR 3310 CI Service Manual

Page 1

D I Please refer to the
MODIFICATION NOTICE.

SERVICE MANUAL

MODEL JP EU EC E2 E3 E2A E1C EUT

AVR-331 OCI \/ \/
AVR-331 O \/
AVR-990 \/

2

AVSURROUNDRECHVER

MODEL JP EU EC E2 E3 E2A E1C EUT
Ave 33 1 0 «Q
AVSURROUNDAMPUFER
[ ' For purposes of improvement, specifications and design are subject to change without notice. ]
[ 0 Please use this service manual with referring to the operating instructions without fail. J
[ 0 Some illustrations using in this service manual are slightly different from the actual set. ]

DENON

D&M Holdings Inc.

800241V05DM1DG091 2 Copyright 2009 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to he maximum extent possible.

Page 2

SAFETY PRECAUTIONS

The following check should be performed for the continued protection of the customer and service technician.

LEAKAGE CURRENT CH ECK

Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the

power cord is less than 460 kohms, the unit is defective.

CAUTION

©Heed the cautions!

Spots requiring parljcular attention when servicing, such
as the cabinet, parts, chassis, etc., have cautions indicated
on labels or seals. Be sure to heed these cautions and the
cautions indicated in the handling instructions.

©Caution concerning electric shock!

(1) An AC voltage is impressed on this set, so touching in-
ternal metal parts when the set is energized could
cause electric shock. Take care to avoid electric shock,
by for example using an isolating transformer and
gloves when servicing while the set is energized, un-
plugging the power cord when replacing parts, etc.

(2)There are high voltage parks inside. Handle with extra
care when the set is energized.

©Caution concerning disassembly and
assembly!

Though great care is taken when manufacturing parts from
sheet metal, there may in some rare cases be burrs on the
edges of parts which could cause injury if fingers are
moved across them. Use gloves to protect your hands.

©0nly use designated parts!

The sets parts have specific safety properties (fire resis-
tance, voltage resistance, etc.). For replacement parts, be
sure to use parts which have the same properties. In par-
ticular, for the important safety parts that are marked A on
wiring diagrams and parts lists, be sure to use the desig-
nated parts.

©Be sure to mount parts and arrange
the wires as they were originally!

For safety reasons, some parts use tape, tubes or other in-
sulating materials, and some parts are mounted away from
the surface of printed circuit boards. Care is also taken with
the positions of the wires inside and clamps are used to
keep wires away from heating and high voltage parts, so
be sure to set everything back as it was originally.

2

Please heed the points listed below during servicing and inspection.

© Inspect for safety after servicing!

Check that all screws, parts and wires removed or discon-
nected for servicing have been put back in their original po-
sitions, inspect that no parts around the area that has been
serviced have been negatively affected, conduct an insu-
lation check on the external metal connectors and between
the blades of the power plug, and otherwise check that
safety is ensured.

(Insulation check procedure)

Unplug the power cord from the power outlet, disconnect
the antenna, plugs, etc., and turn the power switch on. Us-
ing a 500V insulation resistance tester, check that the in-
sulation resistance between the terminals of the power
plug and the externally exposed metal parts (antenna ter-
minal, headphones terminal, microphone terminal, input
terminal, etc.) is 1M0 or greater. If it is less, the set must
be inspected and repaired.

CAUTION Concerning important safety

parts

Many of the electric and structural parts used in the set
have special safety properties. In most cases these prop-
erties are difficult to distinguish by sight, and using re-
placement parts with higher ratings (rated power and
withstand voltage) does not necessarily guarantee that
safety performance will be preserved. Parts with safety
properties are indicated as shown below on the wiring dia-
grams and parts lists is this service manual. Be sure to re-
place them with parts with the designated part number.

(1) Schematic diagrams Indicated by the A mark
(2) Parts lists Indicated by the A mark.

Using parts other than the designated
parts could result in electric shock, fires or
other dangerous situations.

I AVR-331 OCIIAVR-3310/AVR990/AVC-3310 I

Page 8

(3) Disconnect the FFC Cables. @
FFC Cable

Direction of photograph: C

(4) Remove the screws

a e

\,

T - ilWfifluwfi'C-lfi

Please referto "EXPLODED VIEW" for the disassembly method of each P.W.B included in FRONT PANEL ASSY.

[Attention of assembling]

When mounting the FRONT PANEL ASSY on the CHASSIS, do so with the DOOR open so as to prevent
breaking the EARTH PLATE(DOOR).
If the FRONT PANEL ASSY is mounted on the chassis with the DOOR closed, the EARTH PLATE(DOOR) will
hit the CHASSIS and break.

DOOR open

EARTH PLATE (DOOR)

Direction of photograph: A

DOOR closed (EARTH PLATE (DOOR) will be broken.)
EARTH PLATE (DOOR)

Direction of photograph: A

I AVR-331OCI/AVR-3310/AVR990/AVC-331O I

Page 19

2.3. Clearing the protection history

There are two ways to clear the protection history, as described below.
(1) Start up the error (protection history display) mode, display the error, then press and hold in the "ENTER" button for 3

seconds.
EEBEEEEDHEEEBEMD
DEEEEMEEDDDDDDDD

lPress and hold in the "ENTER" button for 3 seconds

EEEEEEEDHEEEEEMD
HEDGE

D EEEDDDDDDD
lThe above is displayed and the protection history is cleared.
misssssssssssss
(2) Initialize.

>'< If you want to save a backup, use the method in 2.3.(1) above.

Warning indication by the STANDBY LED

If the power is turned off when a protection incident has been detected, the STANDBY LED (red) flashes as follows as
warning according to the conditions in which the protection incident occurred.
(1) ASO/DC PROTECTION : Flashes in cycles of 0.5 seconds (0.25 seconds lit, 0.25 seconds off)

(2) THERMAL PROTECTION : Flashes in cycles of 2 seconds (1 second lit, 1 second off)

3. Mode for switching tuner frequency step ---E2 model only--- A
3.1. Operation specification
Change tuner frequency step to FM:200kHz/AM:1 OkHz STEP.

Starting up:
1.With the "STANDARD" and "DIRECT/STEREO" buttons pressed; press the "ON/OFF"
button to turn the power on.

"*Tuner FRQ Set" appears on the display.

*Tuner FRQ Set
4 AMQ/FMSO P

2.Use flb and select "".

3.Press the "ENTER" button.
4. Press the "ON/OFF" button to turn the power off.

5. Then, press the "ON/OFF" button to turn the power on.

NOTE: Backup data(Remove settings for Installer Setup) initialization is carried out automatically.

1 9
I AVR-331OCII'AVR-3310fAVR990IAVC-3310 I

Page 42

Input

I

Check i 5VA and +5VD.
+5VA: cy152_13,14pin HG To troubleshooting 1.1 Power not
-5VA : CY152-12pin -h turn on.
+5VD : CX141-1pin
I OK
Check inputloutput of analog SW.
'"p" YE $103139" us Chec" mg SW 5_efl'"95' us Check Ic301, IC303 and CX141
Input C _ lC107-13pln lC1039,10,11pIn _ L(0V) soldenn or DIGITAL UNIT flaw
Output Y: IC103-3pin I IC107-9,10,11pin : L(0V) I g, '
Output C : IC107-3pin
I OK
OK Check soldering of IC103 and IC107.
Check inputloutput of AMP.
'"p" YE £11339" us Check soldering of IC113, IC114
Input C ' IC114-3pln -b and surroundin arts
Output Y: lC113-1pin 9 p '
Output C : IC11 +1 pin
4, OK
Check inputfoutput of MIX AMP. ll G
Input Y: IC116-3pin | Check soldering of IC116.
Input C : IC116-1pin
I 0K
Check Inputloutput ofanalog SW. It G Check analog _S\III settings. It G Check I0303 and CX141 sol der-
lnput _ IC105-14pln IC105-11pln _ L(0V) in or DIGITAL UNIT flaw
Output : lC105-3pin I IC105-10pin : H(+5V) I 9 '
I OK
OK Check soldering of IC105.
Check inputloutput of AMP. ll G
Input : IC112-3pin Check soldering of IC112.
Output : IC112-1pin

¢0K

Check cable between main unit and mon-

itor or Check monitor.

>'< Unless specified, 8U-210081-1 A.V|DEO UNIT part.

42

I AVR-331 OCIIAVR-3310/AVR990/AVC-3310 I
