Denon AVP 8000 Owners Manual

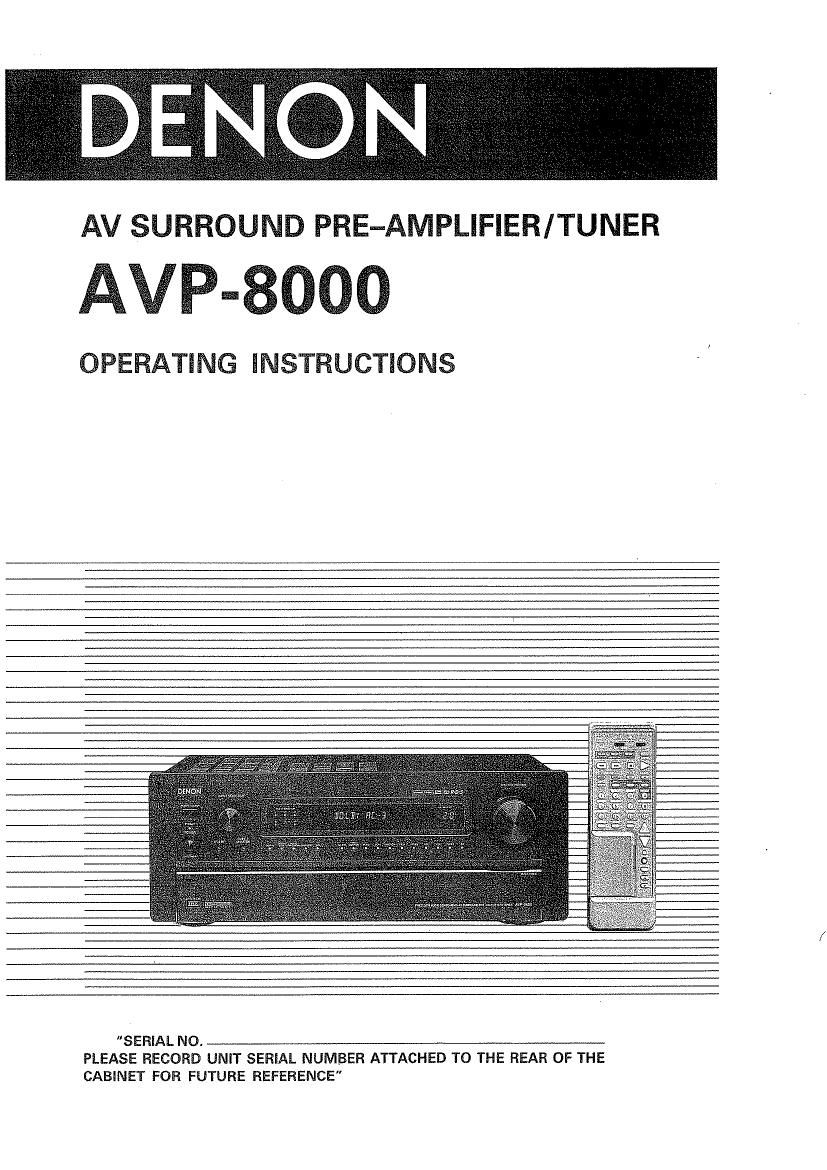

Page 1

AV SURROUND PRE-AMPLIFIER/TUNER

AGsOOO

OPERATING INSTRUCTBONS

SERIAL N0.
PLEASE RECORD UNIT SERIAL NUMBER ATTACHED TO THE REAR OF THE
CABINET FOR FUTURE REFERENCE"

Page 2

SAFETY PRECATIONS

ON , . ,.
RISK OF ELECTRIC SHOCK
DO NOT OPEN

SERVICE PERSONNEL.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK). NO USER SERVICE-
ABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED

The lightning flash with arrowhead symbol, within an equilateral triangle,
is intended to alert the user to the presence of uninsulated dangerous
voltage within the product's enclosure that may be of sufficient
magnitude to constitute a risk of electrlc shock to persons.

The exclamation pointwithin an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance

WARNING: TO REDUCE THE RISK OF FIRE 0R ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE T0 RAIN OR MOISTURE.

CAUTION

ATTENTION

TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLA-
RIZED) PLUG WiTH AN EXTENSION CORD, RECEPTACLE OR
OTHER OUTLET UNLESS THE BLADES CAN BE FULLY le
SERTED TO PREVENT BLADE EXPOSURE,

POUR PREVENIR LES CHOCS ELECTRIQUES NE PAS UTILISER
CETTE FICHE POLARISEE AVEC UN PROLONGATEUR UNE
PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT,
SAUF SI LES LAMES PEUVENT ETRE INSEREES A FOND SANS
EN LAISSER AUCUNE PARTIE A DECOUVERTV

Page 14

3 Use the CURSOR buttons to select Setting Start" and Yes.
cunson

Q
v97 %7

The screen changes (screen 13} and a test noise is output from the subwooferr

(Clear the subwoolers peak limit level setting by specifying "Setting Clear and 1"

., YesjJ 1.;

4- Use the right CURSOR button to increase the test noise output level until the loud-
speaker system's bass sound is distorted. Bass distortion can be heard as an obvious
overload,

When you hear that the bass sound is distorted. press the down CURSOR button.

CURSOR CURSOR

N.

CURSOR

This unit automatically sets the subwoofer peak limit level so the bass level will never
be louder than the test noise signal,

5. Press the ENTER button to complete the setting. or press the left CURSOR

button and select Want To Try Again?" and Yes" to redo the setting. (screen
Mi

6. To redo the setting, press the left CURSOR button at the new screen to select
"Are You Sure and "Yes (screen 15}, then repeat from step 3 above.

6-6 Digital Input Setup

Input the types of components connected to the digital input terminals

1. Use the CURSOR buttons to specify "Digital inputs from the "System Setup
Menu" screen. (screen 16)

CQR
v Q;

2. Press the ENTER button.
ENTER

The "Digital input Setup screen appears. (screen 17)

14

Subwoofer Peak
Limit Level Setting

Push v when Distortion
Begins while Turning
Up The Uolume

B9 Cursor > Button.

(C-lBfl)?

( screen 13 )

Subwoofen Peak
Limit Level Settine

want To Try again? It

( screen 14 )

Subwoofer Peak
Limit Level Setting

fine You Sure? .4

( screen 15 )

System Setup Menu

Speaker Configuration
Delay Time
Channel Level
Awwmnr Peak Limit Lev.
wDigital Inputs
vac-3
auto Tuner Presets
Setup Menu Off

( screen is )
