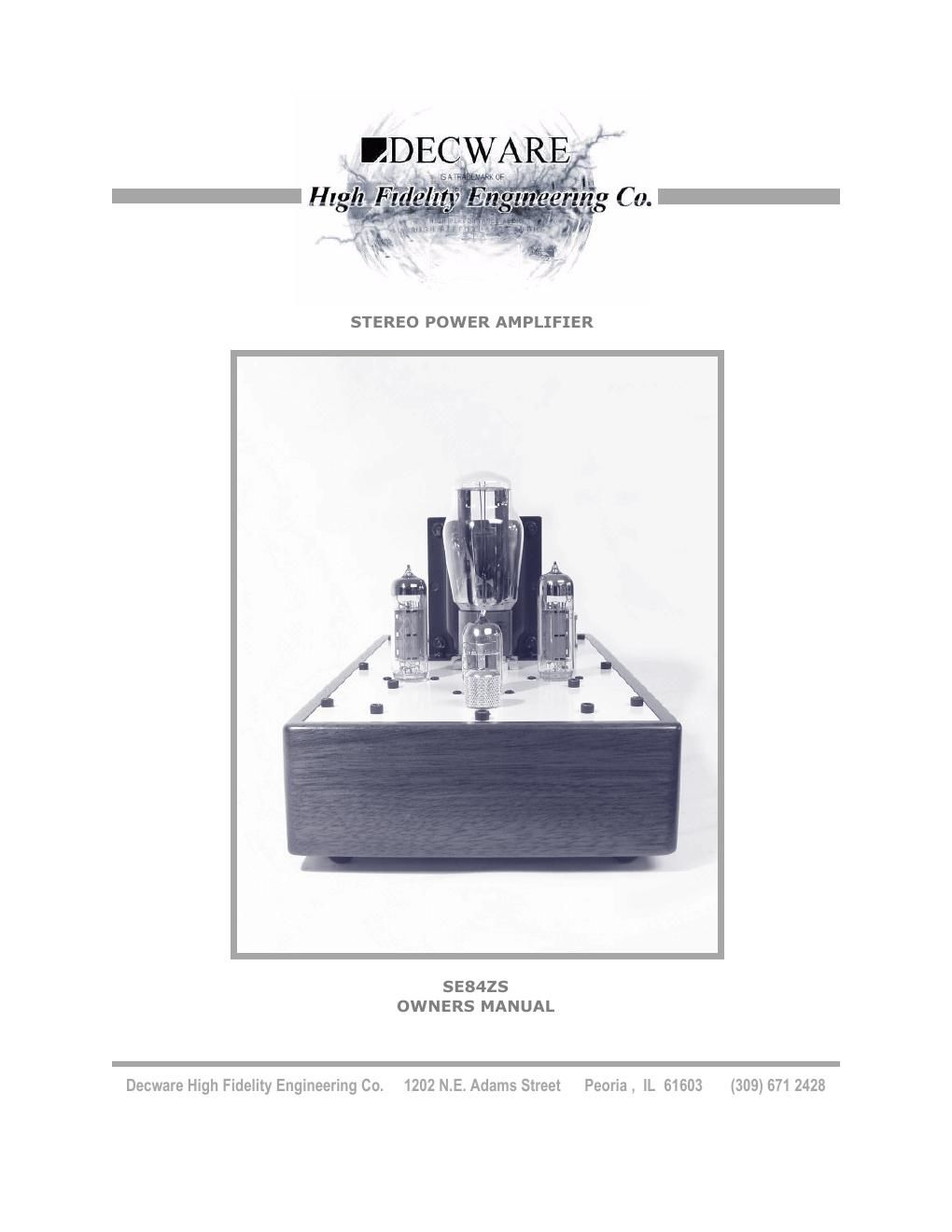

Decware se 84 zs owners manual

Page 2

3 Thank You By purchasing the Zen Triode Select ampli- fier you have illustrated a desire to rise past the normal hi-end hype and own a truly ex- ceptional piece. It is a product based on the old school way of doing things when it was fashionable to push quality to an art form. Your amplifier was hand-built by the very best artisans who have perfected the craft through the experience of building well over one thousand amplifiers, each one at a time. Please Take a Moment The serial number and date of your amplifier are recorded on the bottom of the amplifier. These are important to keep on the amplifier for identification purposes. You may need them for insurance claim or future service. Please use the spaces below to record this information for safe keeping. Serial Number: Purchase Date: Model Number: Technical Assistance You can reach technical assistance by simply contacting Decware directly. You can also e- mail us directly from our web site at www.decware.com Please feel free express any questions you may have about your pur- chase or how it can be best utilized in your present system. You can also find help on- line in our support forums on decware.com Decware / High Fidelity Engineering Co. 1202 N.E. Adams St. Peoria, IL 61603 Phone: (309) 671 2428 Fax: (309) 672-1060 www.decware.com Table of Contents Safety Instructions........................ 2 Thank You.................................... 3 Technical Assistance...................... 3 Table of Contents.......................... 3 Important Information.................... 4 Connector Information.................... 4 Fuse Location / Information............. 4 WARNING..................................... 4 Output tube warning...................... 5 Other output tube information......... 5 Tube life..................................... 5 Input tube information................... 6 Rectifier tube information............... 6 Where everything goes.................. 7 Introduction................................ 7 Performance features.................... 7 Dimensions.................................. 8 Placement................................... 8 Heat Output................................ 8 Stereo / Mono operation................ 9 How to Operate........................... 9 Burn-in Process............................ 9 Specifications.............................. 10 Schematic.................................. 11
