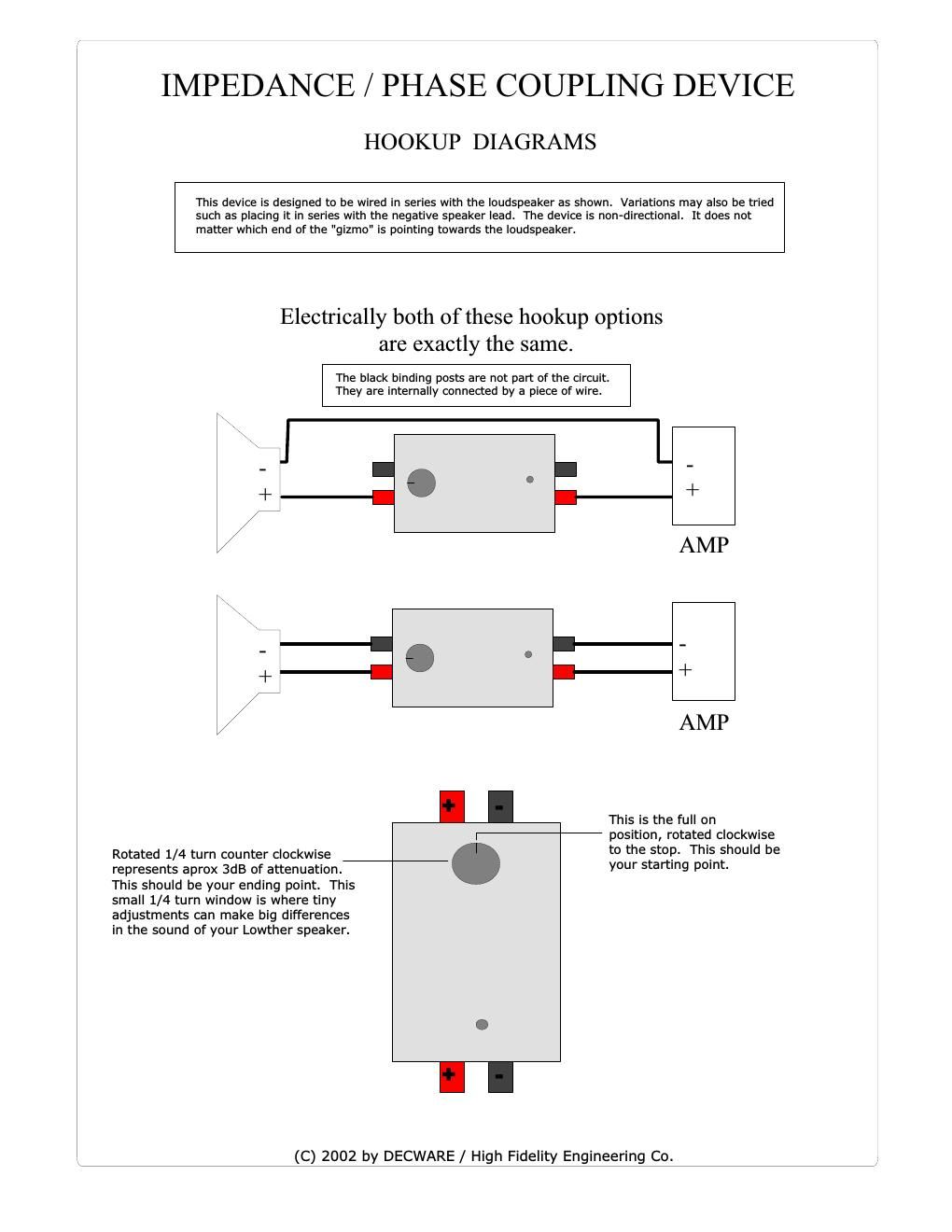

IMPEDANCE / PHASE COUPLING DEVICE
HOOKUP DIAGRAMS
This device is designed to be wired in series with the loudspeaker as shown
matter which end of the "gizmo" is pointing towards the loudspeaker.
such as placing it in series with the negative speaker lead. The device is non-directional. It does not
. Variations may also be tried
Electrically both of these hookup options
are exactly the same.
The black binding posts are not part of the circuit.
They are internally connected by a piece of wire.
J
:+-:- -:-'+
Li
AMP
AMP
L This is the full on
M
Rotated 1/4 turn counter clockwise
represents aprox 3dB of attenuation.
This should be your ending point. This
small 1/4 turn window is where tiny
adjustments can make big differences
in the sound of your Lowther Speaker.
0
position, rotated clockwise
to the stop. This should be
your starting point.
(C) 2002 by DECWARE / High Fidelity Engineering Co.
