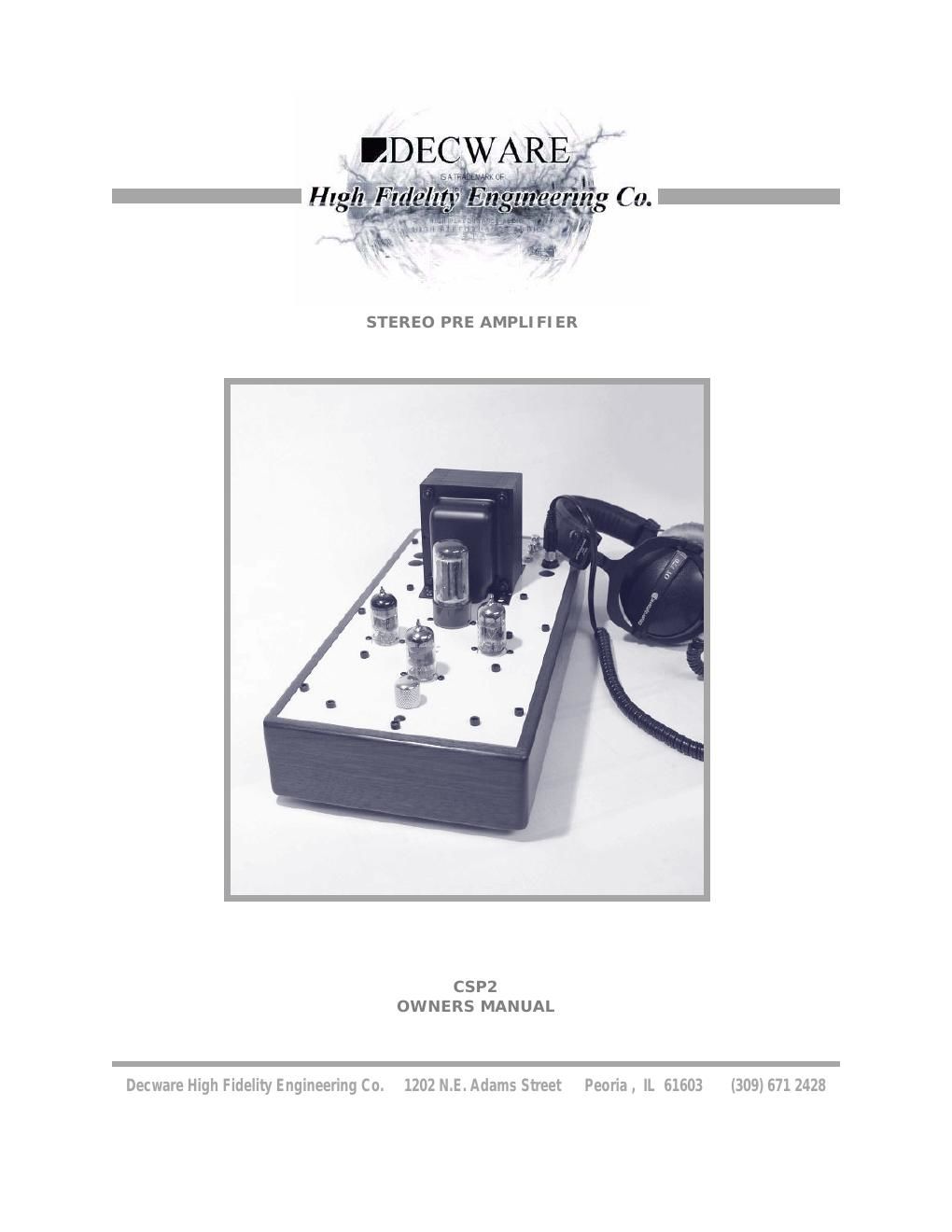

Decware csp 2 owners manual
This is the 10 pages manual for decware csp 2 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from decware csp 2 owners manual (Ocr-read)
Page 1
2 lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of unin- stalled dangerous voltage within the products enclosure that may be of risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and mainte- nance (servicing) instructions in the literature accompanying the appli- ance. AVIS RISQUÉ DE CHOC ELECTRIC-NE PASOUVRIR. WARNING- TO REDUCE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. To prevent the risk of electrical shock, do not remove cover or bottom. No user serviceable parts inside. IMPORTANT SAFETY INSTRUCTIONS! PLEASE READ THEM BEFORE OPERATING THIS EQUIPMENT. 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with a dry cloth. 7 Do not set things on top of apparatus. 8 Install in accordance with manufactur- ers instructions. 9 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 10 Do not defeat the safety purpose of the polarized or grounding-type plug. A po- larized plug has to blades with one wider then the other. A grounding type plug has to blades and a third ground- ing prong. The wide blade or the third grounding prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electri- cian for replacement of the obsolete outlet. 11 Protect the power cord from being walked on or pinched particularly at plugs, conve- nience receptacles, and the point where they exit from the apparatus. 12 Only use attachments/accessories specified by the manufacturer. 13 Do not attempt to move this apparatus until after it has been turned of and cooled down to room temperature. 14 Unplug this apparatus during lighting storms or when unused for long periods of time. 15 Refer all servicing ot qualified service per- sonnel. Servicing is required when the ap- paratus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not oper- ate normally, or has been dropped. 16 Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquid, such as vases, are placed on or near the equipment. 17 To completely disconnect this equipment from the A.C. mains, disconnect the power supply cord from the A.C. receptacle. 18 The mains plug of the power supply cord shall remain readily operable. 19 Never touch a vacuum tube while it is oper- ating. Some can reach temperatures of al- most 400 degrees F. 20 Turn apparatus off when not in use.
Page 2
3 Thank You By purchasing the Zen Triode CSP pre- amplifier you have illustrated a desire to rise past the normal hi-end hype and own a truly exceptional piece. It is a product based on the old school way of doing things when it was fashionable to push quality to an art form. Your amplifier was hand-built by the very best artisans who have perfected the craft through the experience of building well over one thousand amplifiers, each one at a time. Please Take a Moment The serial number and date of your amplifier are recorded on the bottom of the amplifier. These are important to keep on the amplifier for identification purposes. You may need them for insurance claim or future service. Please use the spaces below to record this information for safe keeping. Serial Number: Purchase Date: Model Number: Technical Assistance You can reach technical assistance by simply contacting Decware directly. You can also e- mail us directly from our web site at www.decware.com Please feel free express any questions you may have about your pur- chase or how it can be best utilized in your present system. You can also find help on- line in our support forums on decware.com Decware / High Fidelity Engineering Co. 1202 N.E. Adams St. Peoria, IL 61603 Phone: (309) 671 2428 Fax: (309) 672-1060 www.decware.com Table of Contents Safety Instructions........................ 2 Thank You.................................... 3 Technical Assistance...................... 3 Table of Contents.......................... 3 Important Information.................... 4 Connector Information.................... 4 Fuse Location / Information............ 4 WARNING..................................... 4 Output level adjustment................. 5 Tube layout installation.................. 5 Tube life..................................... 5 Input tube information................... 6 Rectifier tube information............... 6 Where everything goes.................. 7 Introduction................................ 7 Performance features.................... 7 Dimensions.................................. 8 Placement................................... 8 Heat Output................................ 8 Headphone Use............................ 9 How to Operate........................... 9 Burn-in Process............................ 9 Specifications.............................. 10
