Decca ffss owners manual

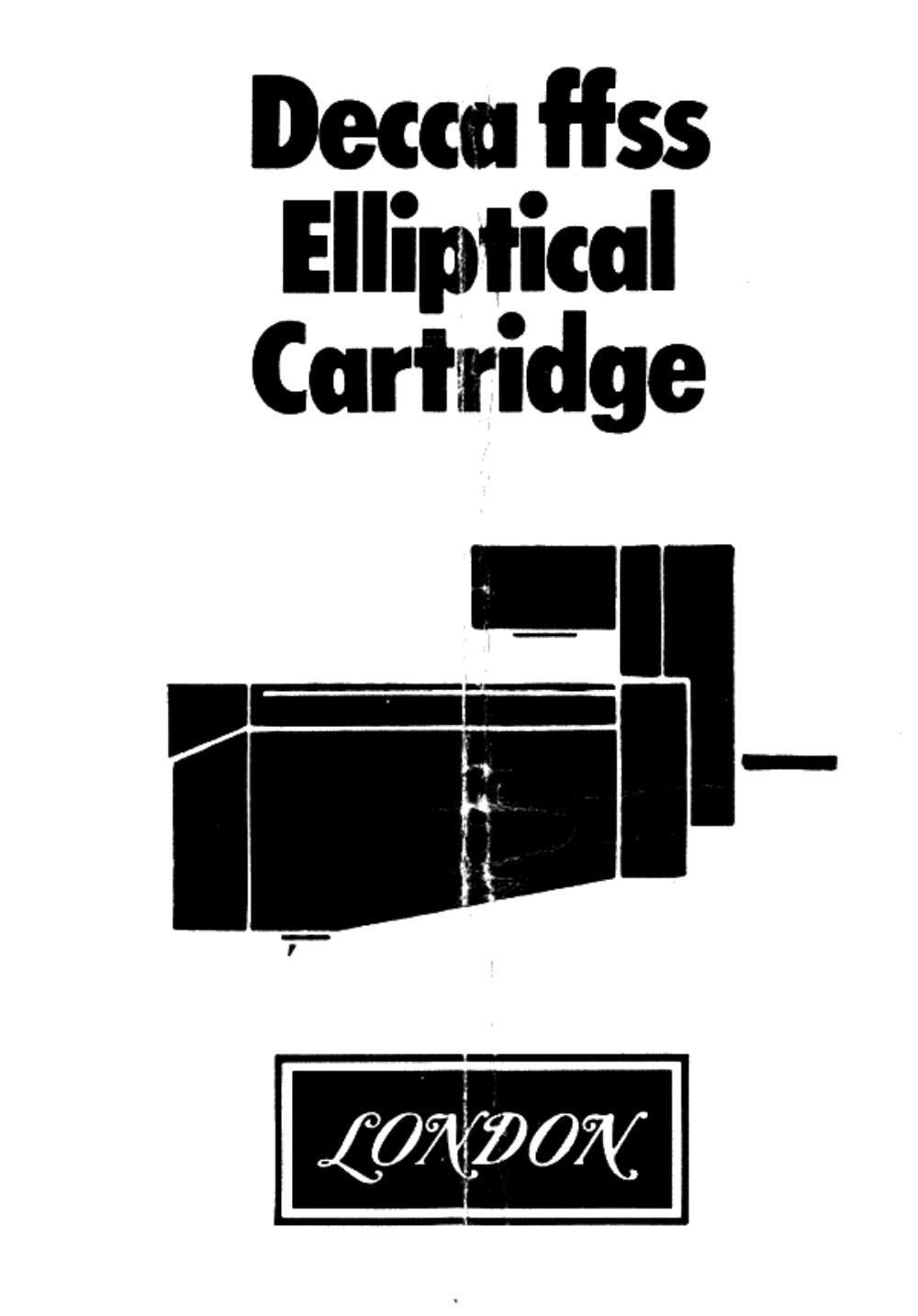

Page 1

Decca fiss
Ellimicul
Cartridge

Page 2

(are of your cartridge

Your London cartridge is the result of continual research by the
world's leading record and pick-upmanufacturer. It will give you
superb results and years of good service providing reasonable care

is taken with its installation and use. Although its construction is
fairly rugged, nevertheless a precigon product deserves careful
installation and handling.

Mounting

Y0ur cartridge is supplied with ai adaptor bracket having standard
a" centres designed to fit most heail shells. The bracket fixing holes
are tapped 68A and alternative length screws are supplied. Extra
length screws can be shortened to Suit various mountings.

Figure I shows how 68A and otherfscrews are used.

Nylon screw easily cut to length

Connection

Solder connections should be made to the tags supplied with the head
shells but soldering must not be done while the tags are connected
to the bracket pins. To obtain l5 (racking angle the top of the
cartridge should be parallel to the record surface.

Figure 2 shows how the head fits to the bracket, i.e. the head slides on
and off the bracket.
