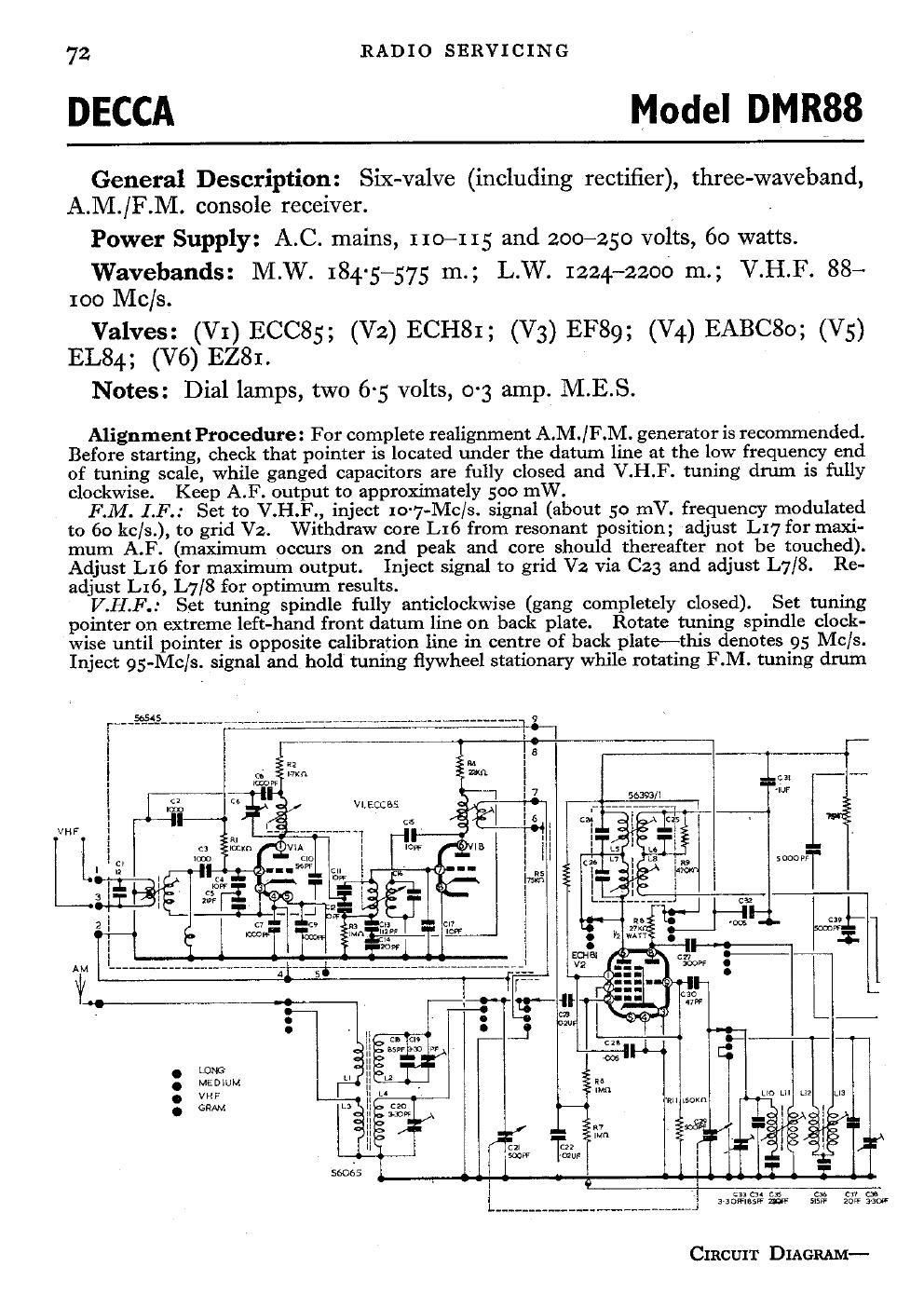

Decca dmr 88 service manual
This is the 2 pages manual for decca dmr 88 service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from decca dmr 88 service manual (Ocr-read)
Page 2
DECCA 73
for maximum signal. Adjust R.F. brass slug at bottom side of tuner for maximum signal.
Re-align aerial slug. Set gang fully open, and after loosening grub screw adjust bush at
rear end of tuner hard against locating lug. Re-tighten grub screw.
A.M. I.F.: Set to M.W., and short C29 t0 chassis. Inject 472 kc/s. A.M. signal to grid
of V2. Adjust cores of L5, L6, L14, L15 for optimum results.
M. W.: Inject 600 kc/s. via dummy aerial to A.M. sockets, set to 500 m. and adjust LIZ/L13
and L3/L4. Inject 1200 kc/s., set to 250 m., and adjust C38 and C20, Repeat adjustments
as necessary.
L.W.: Inject 150 kc/s., set to 2000 m., and adjust L10/L11 and L1/L2. Inject 250 kc/s.,
set to 1200 m., and adjust C33 and C19. Repeat adjustments as necessary.
R25 m AU. RESlSTORS k: WATT
2.7m mu m DWATY ,
j . «fl UNLESS omzaws- STATED
~ ,7 ma 23597.7, h. 3IOV
SLOW BLOW
*Ml
l
: AL MAINS
|
I
i
|
m7
v v .
won
cu 2MFD
can
our
49
m
DECCA MODEL DMRSS
750W FUSE
