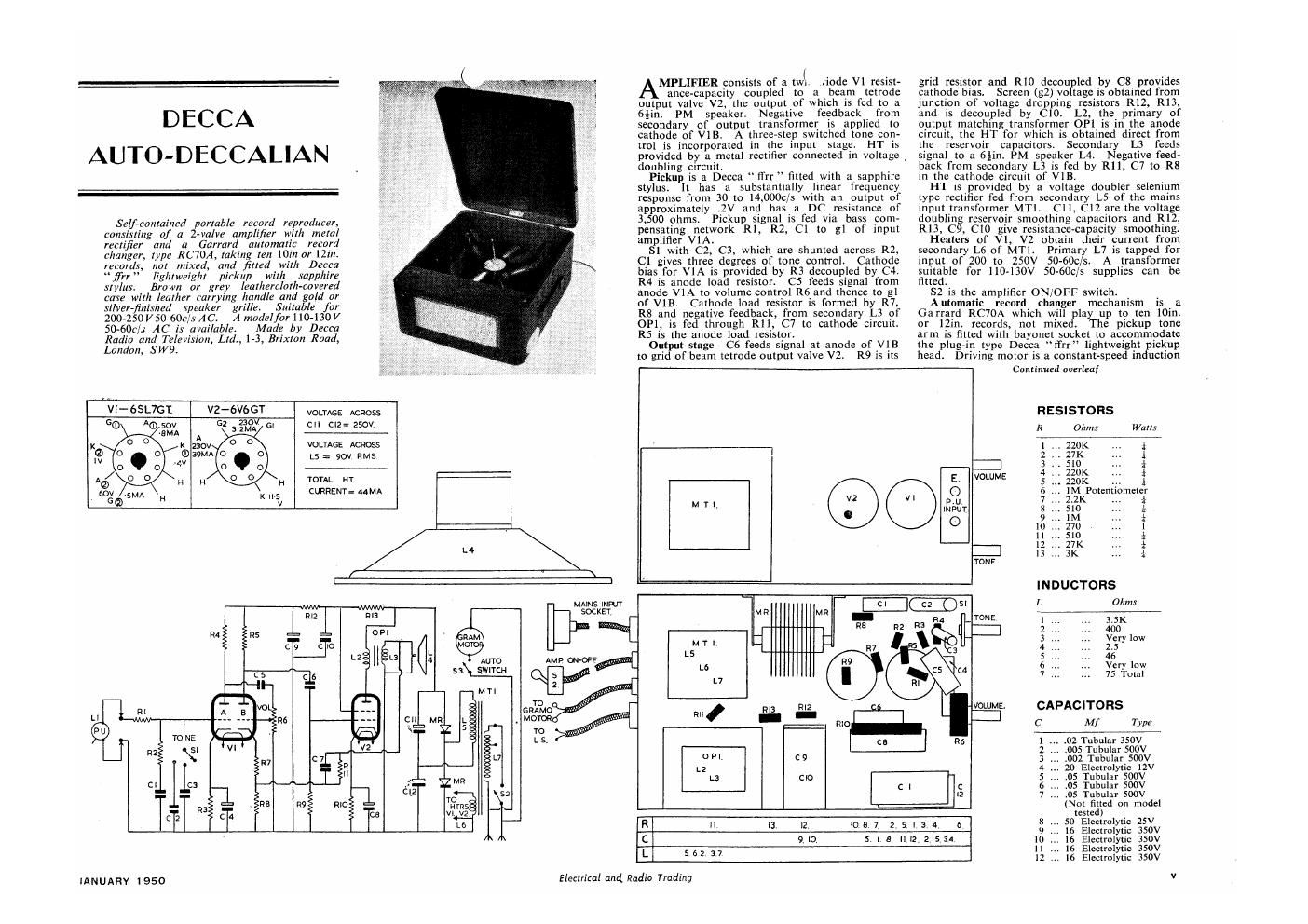

DECCA
AUTO-DECCALIAN

Self-contained portable record "producer.
consisting of a Z-valve amplifier with metal
rectifier and a Garrard «aromatic record
changer, type RC70A, taking ten 10in ar 12in
records, no! mixed, and finzd with Decca
frr lightweight pickup with sapphire
stylus. Brown or grey lent/rerclnIh-covererl
case with lea/her carrying handle and gold pr
silver»finished speaker grille. Suitable jar
200-250 VSOGOC/x AC. A madelfor 110-130 V
50-60c/s AC is available. Made by Decca
Radio and Television, Ltd. 1-3, Brixton Road,
London. S .

Vl-6SL7GT. VZ-GVGGT

230v
62 32MA

VOLTAGE ACROSS

VOLTAGE ACROSS
L5 = 90v EMS

H TOTAL HT
CURRENT. aaMA

Cl| C12: 250V.

L4

MPLIFIER consists of a twl riode V1 resist-
ance-capacily coupled to a beam tetrode
output valve V2. the output of which is fed to a
in. PM speaker. Negative feedback from
secondary of output transformer is applied to
cathode of VIE. A threestep switched tone con-
trol is incorporated in the input stage. HT is
provided by a metal rectifier connected in voltage ,
doubling circuit.

Pickup is a Decca fTrr " fitted with a sapphire
stylusl It has a substantially linear frequency
response from 30 to 14,000c/s with an output of
approximately ,2V and has a DC resistance of
3,500 ohms. Pickup signal is fed via bass com-
pensating network R1, R2, C1 to g] of input
amplifier VIA.

S] with C2. C3, which are shunted across R2,
Cl gives three degrees of tone control. Cathode
bias for VlA is provided by R3 decoupled by C4.
R4 is anode load resistor. C5 feeds signal from
anode VIA to volume control R6 and thence to g1
of V113. Cathode load resistor is formed by R7.
R8 and negative feedback, from secondary L3 of
01], is fed through R11, C7 to cathode circuit.
R5 is the anode load resistor.

Output stage-C6 feeds signal at anode of V113
to grid of beam tetrode output valve V21 R9 is its

grid resistor and R10 decoupled by C8 provides
cathode bias. Screen (g2) voltage is obtained from
Junction of voltage dro ping resistors R12. R13,
and is decoupled by 10, L2, the primary of
output matching transformer OP! is in the anode
circuit, the HT for which is obtained direct from
the reservoir capacitors. Secondary L3 feeds
srgnal to a 6§in. PM speaker L4. Negative feed-
back from secondary L3 is fed by R11. C7 to R8
in the cathode circuit of VlB.

HT is provided by a voltage doubler selenium
type rectifier fed from secondary L5 of the mains
input transformer MT]. C11, C12 are the Voltage
doubling reservoir smoothing capacitors and R12,
RI], C9, C10 give resistance-capacity smoothing,

Heaters of V1, V2 obtain their current from
secondary L6 of MT]. Primary L7 is tapped for
input of 200 to 250V 50-600/5. A transformer
Euttaible for 110-130V 50-60c/s supplies can be

ttc .

$2 is the amplifier ONJOFF switch.

Automatic record changer mechanism is a
Garrard RC70A which will play up to ten 10in.
or 12in. records. not mixed. The pickup tone
arm is fitted with bayonet socket to accommodate
the plugdn type Decca firr lightweight pickup
head. Driving motor is a constant-speed induction

E.

O
M T ». or.

0

Continued overleaf

RESISTORS
R Ohm:

VOLUME

wN-Owwuamwa-

TONE

Ter-

IANUARY 1950

MANS INFUr
SOCKET

INDUCTORS

MTI.

R7
m3 m2 .
r" - - _

mo

OPI. c9
L2

.5 4 l \
cos

no

TONE

MR MR -CI ( c2 ( )st 1: ohm:

R8 n2 as R
its

3.5K
400

Very low
75 Total

CAPACITORS
C 114/ Type

02 Tubular 350V
5 Tubular 500V

02 Tubular 500V
20 Electrolytic 12V

LE

L3 C0

cit

.os Tubular soov
.05 Tubular 500v
.05 Tubular 500V
(Not fitted on model

c
I:

tested)

103.725134 6

.. so Elcctrolytic 25v
l6 Electrolytic 350V

ts re ll.r2,2 534

16 Electrolytic 350V

L 562 37

. 16 Electrolytic 350V
. 16 Electrolytic 350V
