Page 1

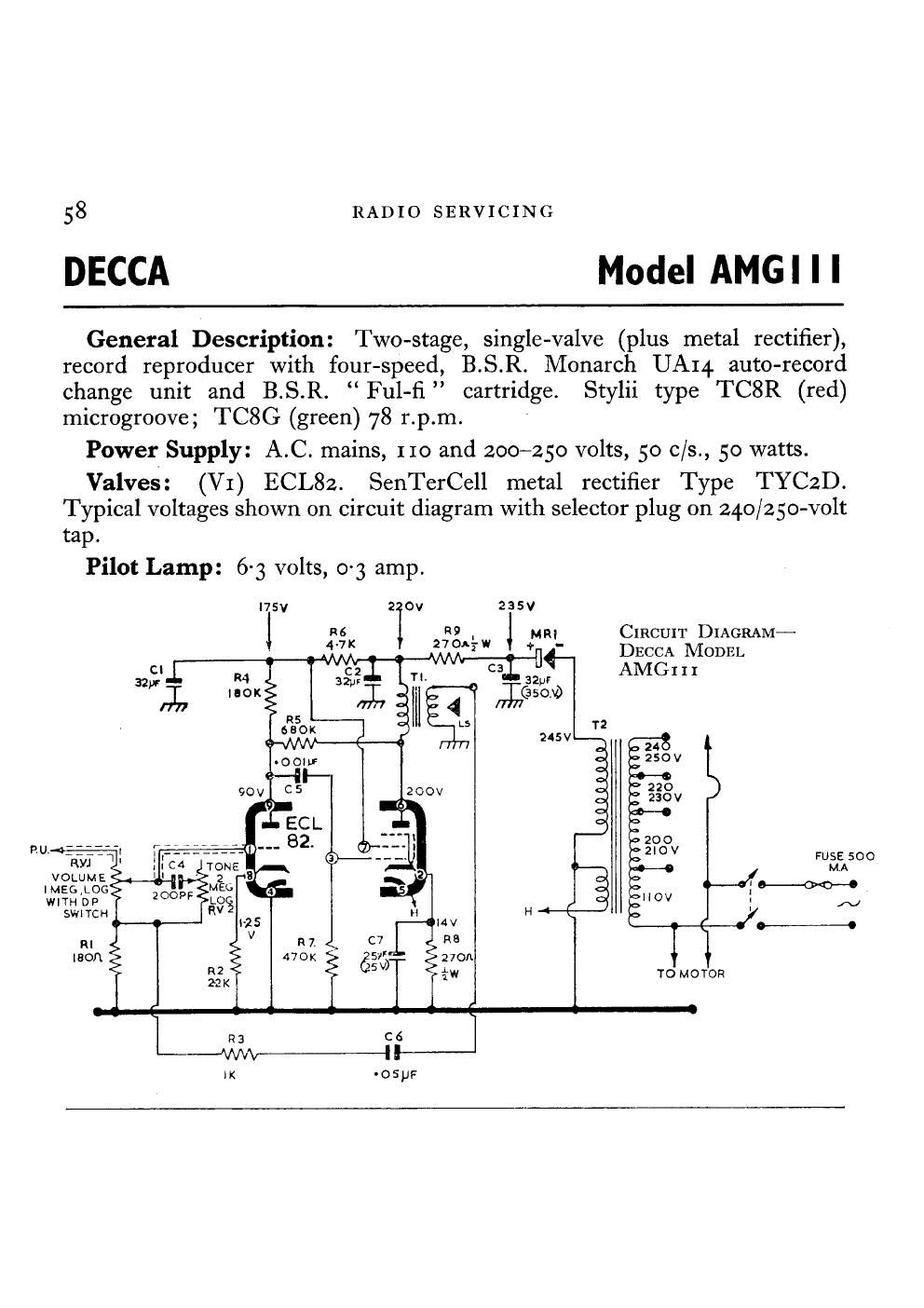

58 RADIO SERVICING

DECCA Model AMGI I I

General Description: Two-stage, single-valve (plus metal rectiﬁer),
record reproducer with four-speed, B.S.R. Monarch UAI4. auto-record
change unit and B.S.R. Ful-ﬁ cartridge. Stylii type TC8R (red)
microgroove; TCSG (green) 78 rpm.

Power Supply: A.C. mains, 110 and zoo~250 volts, 50 c/s., 50 watts.

Valves: (VI) ECL82. SenTerCell metal rectiﬁer Type TYC2D.
Typical voltages shown on circuit diagram with selector plug on 240/2 50-volt
tap.

Pilot Lamp: 6' 3 volts, 0-3 amp.

I75V 210V 235V
1 R6 R9 . l mu CIRCUIT DIAGRAM-
. WK 27m?" * " DECCA MODEL
c' AMGI I r

Pu. 221:! ,
RYJ 1. .
VOLUME
|MEG,LOG
WITHDP
SWITCH

FUSE 500

RI
[80R

TO MOTOR
