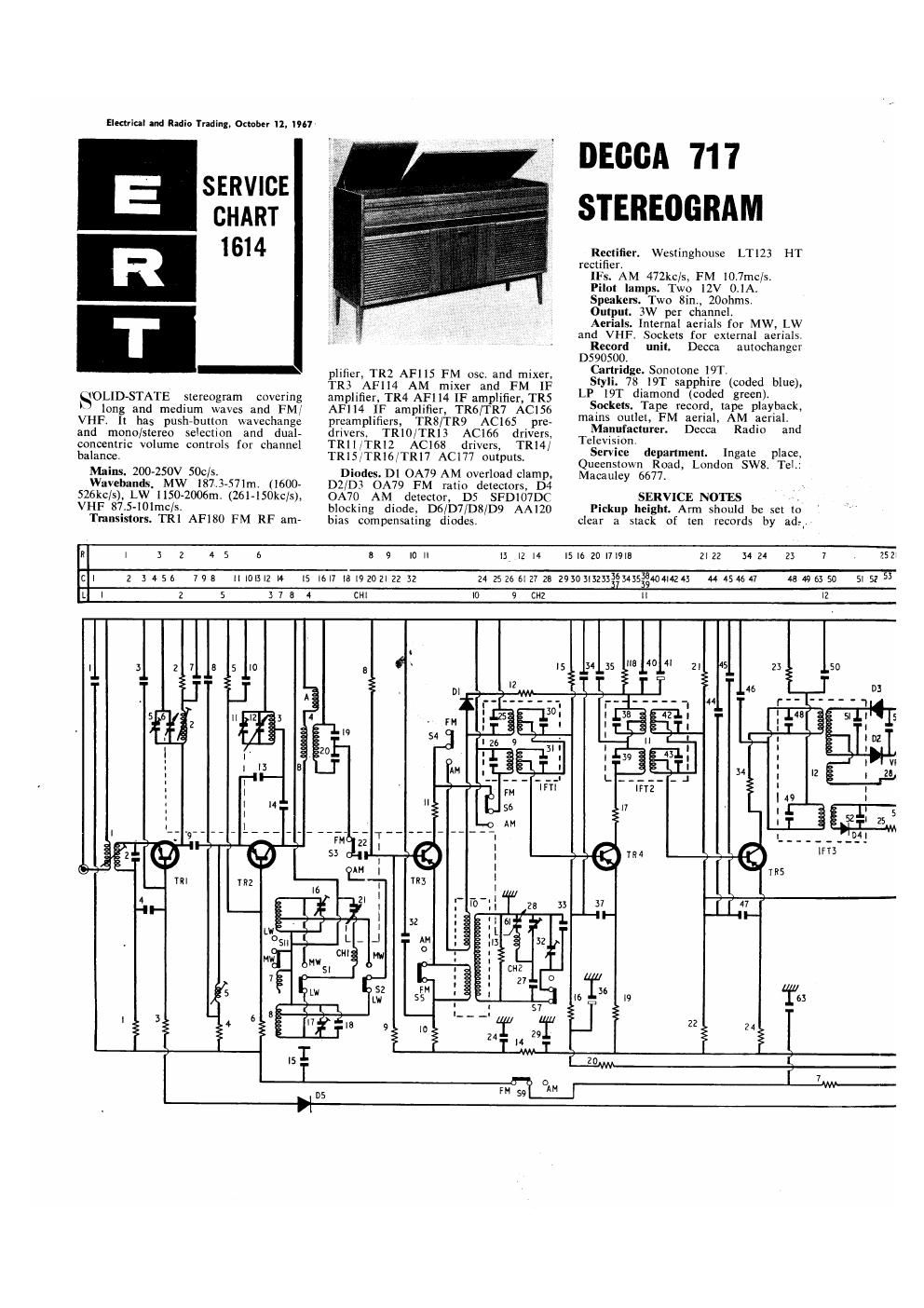

Decca 717 service manual

Page 1

Elemlczl and Ridio Trading, October 11, I967

1614

-_

VOLIDSTATE stereogram covering

long and medium waves and FM,
VHF. It has push-button \Iavechange
and mono/stereo selection and dual-
conoenrric Volume controls for channel
balance.

Mains. 200-250V SOC/s.

Wavebands. MW 187-.3-S7lm. (1600-
526kc/S), LW 1150-2006m. (261-l50kc/s),
VHF 87.5-101mc/s.

Transistors. TRl AFISO FM RF am-

SERVICE
CHART

plifier, TRZ AFHS FM use, and mixer,
TR} AFII4 AM mixer and FM 1F
amplifier, TR4 AH 14 IF amplifier, TRS
AFIM IF amplifier, TR6/TR7 AC156

prcamplifiers, TR8/TR9 AC165 pre-
drivcrs. TRIOiTRl3 AC166 drivers,
TRll/TRIZ ACI68 drivers. TRl4/
TRIS/TRlfi/TRH AC177 outputs.

Diodes. DI OA79 AM overload clamp,
DMD} OA79 FM ratio detectors, D4
0A70 AM detector, D5 SFD107DC
blocking diode, D6/D7/D8/D9 AAIZO
hias compensating diodes.

DEGGA 717
STEREOGRAM

Westinghouse LTl23 HT
rectifier.

IFS. AM 472kc/s, FM 10,7mc/s.

Pilot lamps. Two 12V 0.1A.

Speakers. Two 8in., ZOohms.

Output. 3W per channel.

Aerials. Internal aerials for MW, LW
and VHF, Sockets for external aerials.

Record unit. Decca autochanger
D590500.

Canridge. Sonotone l9T.

Styli. 78 191 sapphire (coded blue),
LP l9T diamond (coded green).

Sockets. Tape record, tape playback,
mains outlet, FM aerial, AM aerial.

Manufacturer. Decca Radio and
Television.
Service depanment. In gate place,

Queenstown Road, London SW8. Tel;
Macauley 6677.

SERVICE NOTES .
Pickup height. Arm should be set to

clear a stack of ten record: by ad:'

R I 3 2 4 5 6 a 9 IO U I3 I2 i4 [5 I6 20 I7I9Ia zI 22 34 24 25 'I 252
c l 2 3 4 5 5 7 9 a II IOBlZ 14 I5 I6I7 Ia I9 20 2| 22 32 24 25 as 6} 27 25 2950 suzssggsusggomuzu 44 45 46 61 43 I» 63 so 51 52 53
I 2 5 3 7 e 4 CHI l0 9 cuz II I2

2. l

_T
32

MB 40 M
