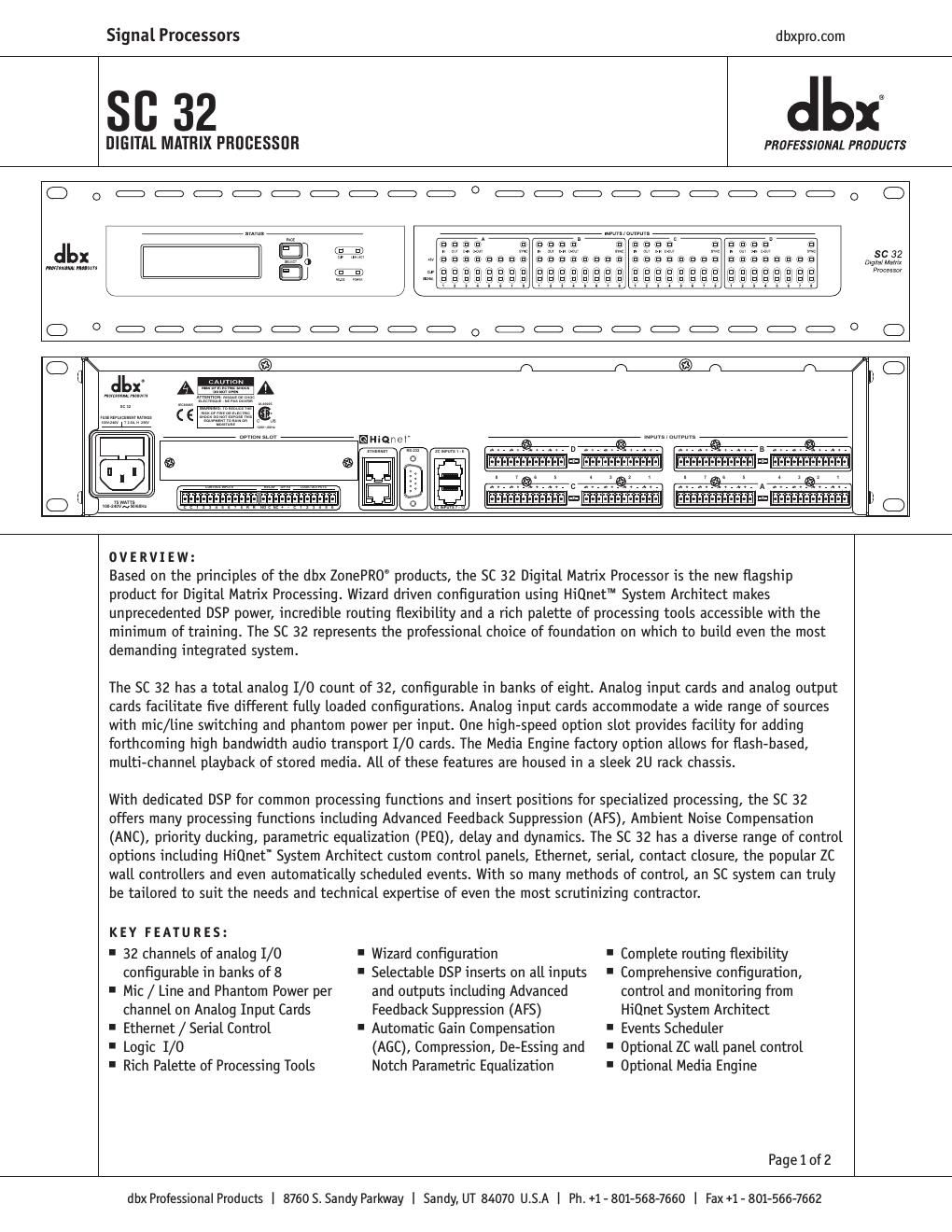

Page 1

dbxpro.com Signal Processors dbx Professional Products | 8760 S. Sandy Parkway | Sandy, UT 84070 U.S.A | P h. +1 - 801-568-7660 | F ax +1 - 801-566-7662 SC 32 Digital Matrix Processor tEchnIcal SPEcIFIcatIOnS: Front Panel led Indicators: Per Input: Signal Present, Clip, 48V Phantom Power, SYNC, I/O card type (IN, OUT, D-IN, D-OUT) Other: LCD Display, Page Button, Select Button and LED indicators for: Global CLIP, Link/Active, RS-232 and Power card Slots: Audio Cards: 4 Card Slots (A, B, C, D) High Speed Option Slot: 1 Card Slot analog Inputs: (8) per Input Card Connectors: Phoeni x/Combicon, 3.5mm pitch Mic/Line Inputs: Nominal gain 0 dB, Electronically switchable to +6, +12, +18, +24, +30, +36,+42, +48 dB Type: Electronically balanced, RF filtered Impedance: 3.5 k Ω Maximum Input Level: +20 dBu CMRR: >40 dB typical, >50 dB at 1 kHz Phantom Power: +48 VDC, selectable per input analog Outputs: (8) per Output Card Connectors: Phoeni x/Combicon, 3.5mm pitch Type: Electronically balanced, RF filtered Impedance: 44 Ω Max Output Level: +20 dBu System Performance: Dynamic Range: 107 dB unweighted, 110 dB A-weighted Internal Processing: 32 bit floating point THD + Noise: 0.0045% typical at 0 dBu, 1 kHz, 0 dB input gain Frequency Response: 20 Hz- 20 kHz, +/-0.50 dB Sample Rate: 48 kHz GPIO Ports: 8 Control Inputs and 6 Logic Outputs (Phoenix/Combicon, 3.5mm pitch) Control Input Voltage: 0 to 4.5v Control Input Impedance: 4.7 k ohm to +5V (2-wire mode) Logic Output Voltage: 0 or +5V unloaded Logic Output Impedance: 440 ohm Logic Output Current: 10mA source, 60mA sink Relay contact closure: Connector: Phoeni x/Combicon, 3.5mm pitch Contacts: Common (C), Normally Open (NO), Normally Closed (NC) Contact Rated Load: 0.3A at 125VAC, 1A at 30VDC Watchdog Output: Phoenix/Combicon, 3.5mm pitch for failsafe control Opto-isolated Output Current: 14mA maximum Withstanding Voltage: 80V maximum (Off) Series Impedance: 220Ω (isolated) Input Signal Processing per channel Delay: Up to 5120ms of input delay EQ: 4 Band Parametric Gate: Downward Expander Insert Processing: Two selectable Input Processing blocks per input Insert Types: Advanced Feedback Suppression, Automatic Gain Control, Compressor, De-Esser, 12-Band Notch EQ, 12-Band Parametric EQ, Sub-Harmonic Synthesizer Ducker: 24 level priority ducker Routing/Mixing: 24x1 mixer per output channel Output Signal Processing per channel: Insert Processing: One selectable Output Processing block per output. Insert Types: Gain, Automatic Gain Control, Ambient Noise Compensation, Auto-Warmth™ Crossover Configurations: 1x1, 1x2, 1x3, 1x4 Crossover Types: Bessel 6, 12, 18 and 24 dB/Octave, Butterworth 6, 12, 18 and 24 dB/Octave, Linkwitz-Riley 12 and 24 dB/Octave EQ: 6 Band Parametric Limiter: dbx PeakStopPlus™ Delay: Up to 5120ms of output delay Miscellaneous: Control: Ethernet, RS-232, Optional dbx ZC Wall Panels Power Requirements: 100V to 240VAC 50/60Hz, 75 Watts Dimensions (H(U) x W x D): 3.5" (2U) x 19" x 15" (89mm x 483mm x 381mm) Weight: 15.7 lbs. / 7.12 kgs. (with all audio cards installed) Page 2 of 2
