Dbx 150 x service manual

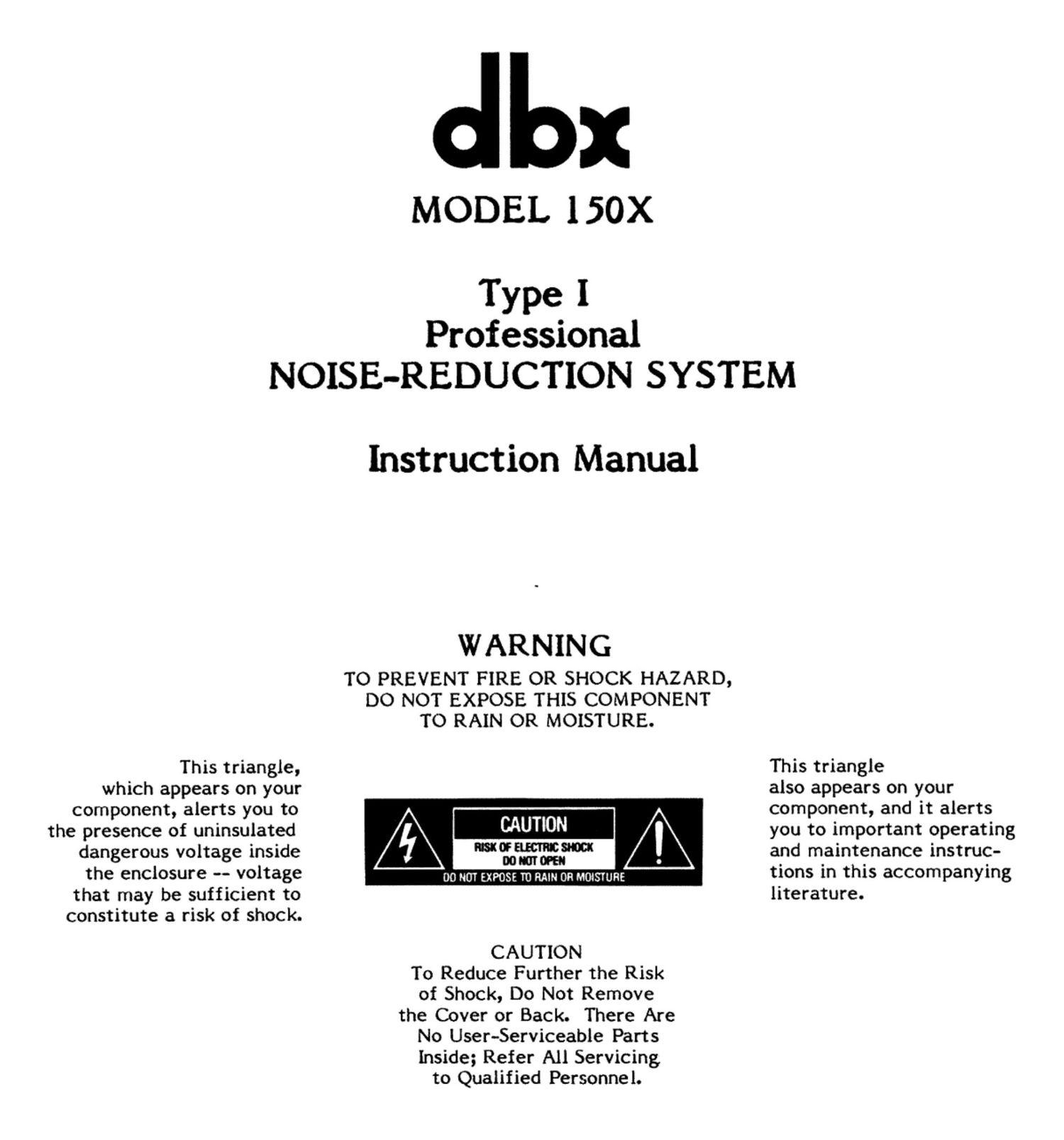

Page 1

all»:

MODEL 150x

Type I
Professional
NOISE-REDUCTION SYSTEM

Instruction Manual

WARNING

TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS COMPONENT
TO RAIN OR MOISTURE.

This triangle,

which appears on your
component, alerts you to
the presence of uninsulated
dangerous voltage inside
the enclosure -- voltage
that may be sufficient to
constitute a risk of shock.

the Cover or Back.

f: CAUTION i:
statesman:
ammonia

DO NOT EXPOSE TU RAIN OR MOISTURE

CAUTION
To Reduce Further the Risk
of Shock, Do Not Remove

No User-Serviceable Parts
Inside; Refer All Servicing
to Qualified Personnel.

There Are

This triangle

also appears on your
component, and it alerts
you to important operating
and maintenance instruc-
tions in this accompanying
literature.

Page 2

INSPECTION and INSTALLATION

Your unit was carefully packed at the factory in a protective carton. Nonetheless,
be sure to examine the unit and the carton for any signs of damage that may have
occurred during shipping. If there is such evidence, don't destroy the carton or packing
material, and notify your dealer immediately.

It's a good idea in any case to save the carton and packing should you ever need to
ship the unit.

In the event of initial problems, first contact your dealer; your unit was thoroughly
inspected and tested at the factory.

The carton should contain this owner's manual, a l§OX of course, and a warranty /
registration card. Please fill the card out and send it to us. The carton also should con-
tain hardware for rack-mounting both a single unit (screws, a long ear [half-rack width],
a small L-bracket, and a short rack ear) and two units together (side plates along with a
screwdriven joiner). See below.

No special ventilation is required in any installation; other components may be
stacked above or below your 150X provided they don't generate excessive heat.

Here's rack-mounting for a single unit:

l

It may help to line everything up on a table as you tighten the screws.

Here's rack-mounting for a pair of lSOXes or for a ISOX and dbx 163x Compressor/
Limiter, 263x De-Esser, or 463x Noise Gate or other "-63X" series units:
1 6r 2) Attach side panels;
3) Bring units together, lining up the side panels with the screw-joiner
catches, and then gently tighten the screw to close the catches.
