Dbx 10122 owners manual

Page 1

cllox

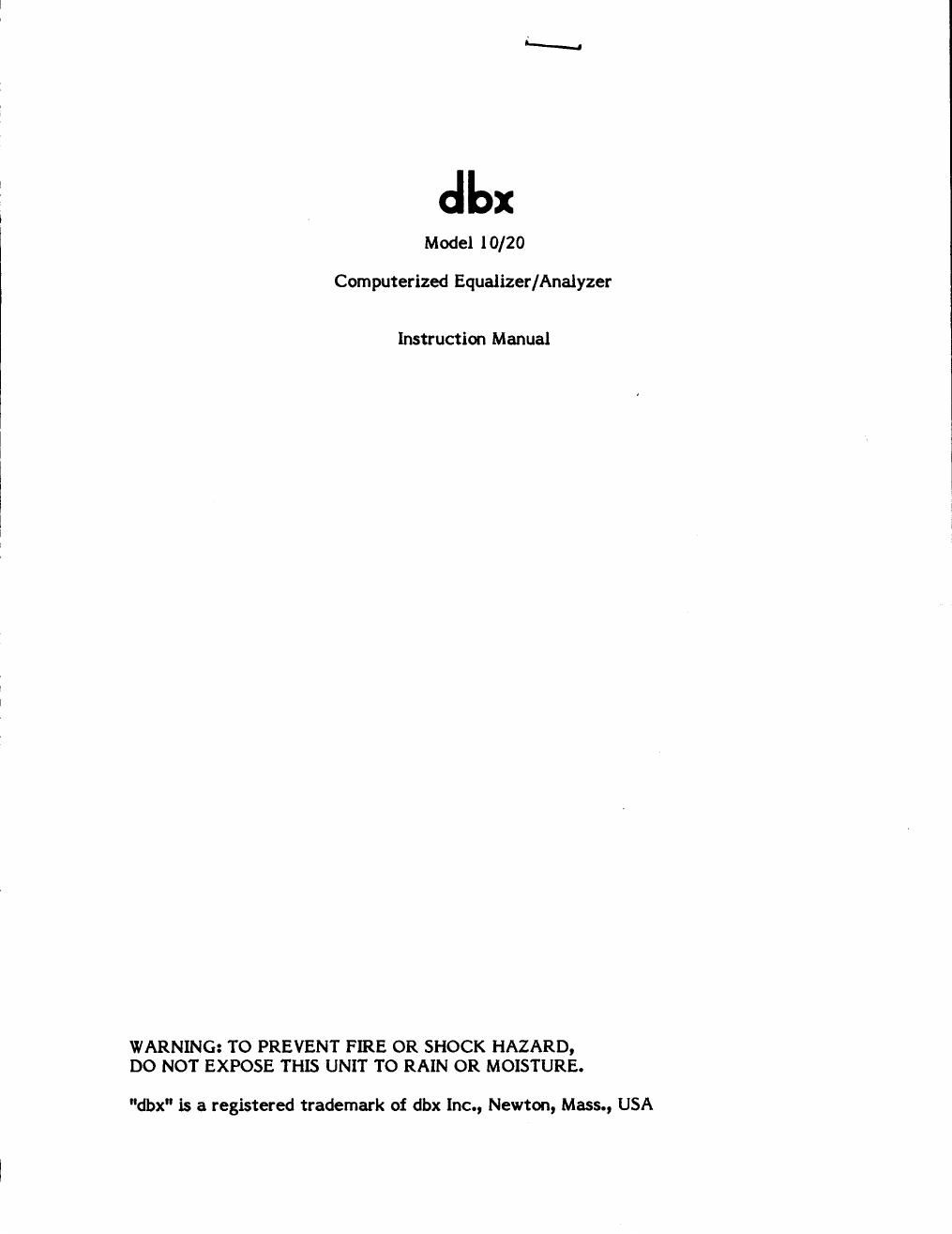

Model 10/20

Computerized Equalizer/Analyzer

Instruction Manual

WARNING: TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE. THIS UNIT T0 RAIN OR MOISTURE.

"de" is a registered trademark of dbx lnc., Newton, Mass., USA

Page 2

(mm

INSPECTION and INSTALLATION

Your unit was carefully packed at the factory in a carton designed to protect
it. Nevertheless, we recommend examining both carton and contents for any signs
of damage. If there is such evidence, don't destroy the carton or any of the packing
material, and notify your dbx dealer immediately.

In any case it is a good idea to save the carton and packing materials should
you ever need to ship your unit in the future.

In addition to a model 10/20 and this instruction manual, the carton should
contain hookup cables with conventional RCA phono (pin) plugs, a microphone
calibrated for your unit, mounting brackets, and a warranty/registration card.

The 10/20 is mountable into any standard 19-inch (48.3-cm) equipment rack
with the supplied brackets. (The feet on the unit may have to be removed first if
the installation is close.) No special cooling or ventilation is required in any installa-
tion; other components may be stacked above or below the 10/20 provided that they
don't generate excessive heat.

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

This symbol is intended to alert
you of the presence of uninsulat-
ed dangerous voltage within the
unit's enclosure that may be of
sufficient magnitude to constitute
a risk of electric shock,

you of the presence of important
operating and maintenance
instructions in the literature
accompanying the unit.

i: This symbol is intended to alert
