Crown XTi 1002 2002 4002 6002 Operation Manual
This is the 52 pages manual for Crown XTi 1002 2002 4002 6002 Operation Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Crown XTi 1002 2002 4002 6002 Operation Manual (Ocr-read)
Page 1

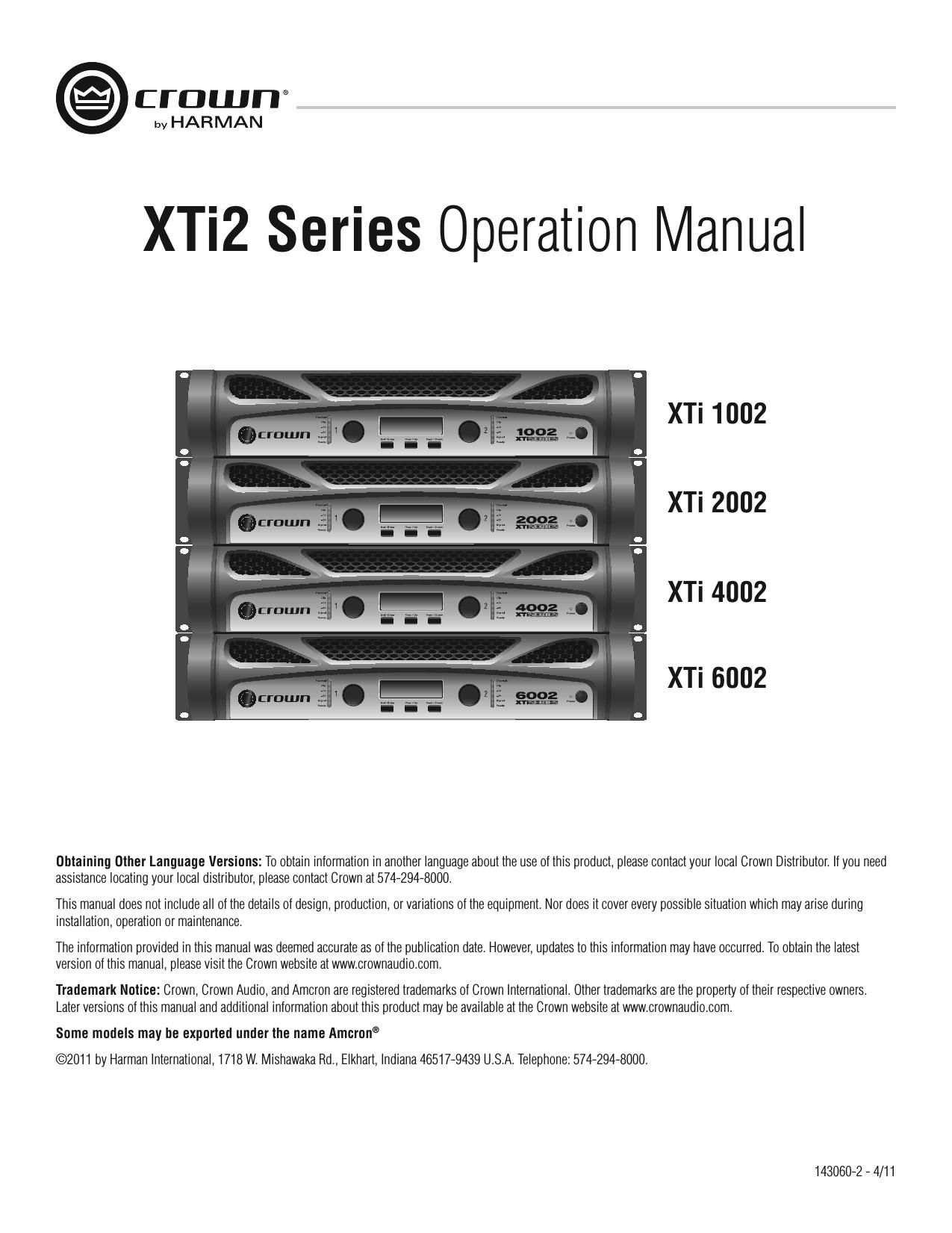

XTi2 Series Power AmplifiersOperation Manual page 2 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 8. Do not install near any heat sources such as radiators, heat registers, \ stoves, or other apparatus (including amplifiers) that produce heat.\ 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician fo\ r replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table specified by th\ e manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power- supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. Use the mains plug to disconnect the apparatus from the mains. 16. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. 17. DO NOT EXPOSE THIS EQUIPMENT TO DRIPPING OR SPLASHING AND ENSURE THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, ARE PLACED ON THE EQUIPMENT. 18. THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY OPERABLE. TO PREVENT ELECTRIC SHOCK DO NOT REMOVE TOP OR BOTTOM COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. TO COMPLETELY DISCONNECT THIS EQUIPMENT FROM THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE. THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY OPERABLE. WATCH FOR THESE SYMBOLS: The lightning bolt triangle is used to alert the user to the risk of ele\ ctric shock. The exclamation point triangle is used to alert the user to important operating or maintenance instructions. IMPORTANT XTi2 Series amplifiers require Class 2 output wiring. MAGNETIC FIELD CAUTION! Do not locate sensitive high-gain equipment such as preamplifiers or tape decks directly above or below the unit. Because \ this amplifier has a high power density, it has a strong magnetic field which can induce hum into unshielded devices that are located nearby. The field is strongest just above and below the unit. If an equipment rack is used, we recommend locating the amplifier(s)\ in the bottom of the rack and the preamplifier or other sensitive equipme\ nt at the top. Important Safety Instructions FCC COMPLIANCE NOTICE This device complies with part 15 of the FCC rules. Operation is subject\ to the following two conditions: (1) This device may not cause harmful\ interference, and (2) this device must accept any interference receive\ d, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC \ Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipme\ nt generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installati\ on. If this equipment does cause harmful interference to radio or television\ reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: t 3 F P S J F O U P S S F M P D B U F U I F S F D F J W J O H B O U F O O B t * O D S F B T F U I F T F Q B S B U J P O C F U X F F O U I F F R V J Q N F O U B O E S F D F J W F S t $ P O O F D U U I F F R V J Q N F O U J O U P B O P V U M F U P O B D J S D V J U E J G G F S F O U G S P N U I B U to which the receiver is connected. t $ P O T V M U U I F E F B M F S P S B O F Y Q F S J F O D F E S B E J P 5 7 U F D I O J D J B O G P S I F M Q
Page 2
XTi2 Series Power Amplifiers page 3 Operation Manual DECLARATION OF CONFORMITY Issued By: Harman International. 1718 W. Mishawaka Rd. Elkhart, IN 46517 U.S.A.FOR FIELD SERVICE QUESTIONS CALL: 1 800 342 6939 European Representatives Name and Address: David J. Budge 10 Harvest Close Yateley GU46 6YS United Kingdom Equipment Type: Power amplifiers Family Name: XTi2 Series Model Names: XTi1002, XTi2002, XTi4002, XTi6002 EMC Standards: EN 55103-1:1997 Electromagnetic Compatibility – Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 1: Emissions EN 55103-1:1997 Magnetic Field Emissions-Annex A @ 10 cm and 1 M EN 61000-3-2:2005 & Amd 1: 2008 Limits for Harmonic Current Emissions (equipment input current ≤16A per phase) EN 61000-3-3:1998 Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply Systems Rated Current ≤16A EN 55022:2006 Limits and Methods of Measurement of Radio Disturbance Characteristics of ITE: Radiated, Class B Limits; Conducted, Class B EN 55103-2:1997 Electromagnetic Compatibility – Product Family Standard for Audio, Video, Audio-Visual and Entertainment Lighting Control Apparatus for Professional Use, Part 2: Immunity EN 61000-4-2:2001 Electrostatic Discharge Immunity (Environment E2-Criteria B, 4k V Contact, 8k V Air Discharge) EN 61000-4-3:2006 Radiated, Radio-Frequency, Electromagnetic Immunity (Environment E2, Criteria A) EN 61000-4-4:2007 Electrical Fast Transient/Burst Immunity (Criteria B) EN 61000-4-5:2006 Surge Immunity (Criteria B) EN 61000-4-6:2006 Immunity to Conducted Disturbances Induced by Radio-Frequency Fields (Criteria A) EN 61000-4-11:2001 Voltage Dips, Short Interruptions and Voltage Variation Safety Standard: IEC 60065: 2001: 7Ed & Amd 1: 2005 Safety Requirements - Audio Video and Similar Electronic Apparatus I certify that the product identified above conforms to the requirements of the EMC Council Directive 89/336/EEC as amended by 92/31/EEC, and the Low Voltage Directive 73/23/EES as amended by 93/68/EEC. Signed ______________________ Scott Potosky Title: Director of Engineering Date of Issue: February 1, 2011
