Crown PS 200 Brochure

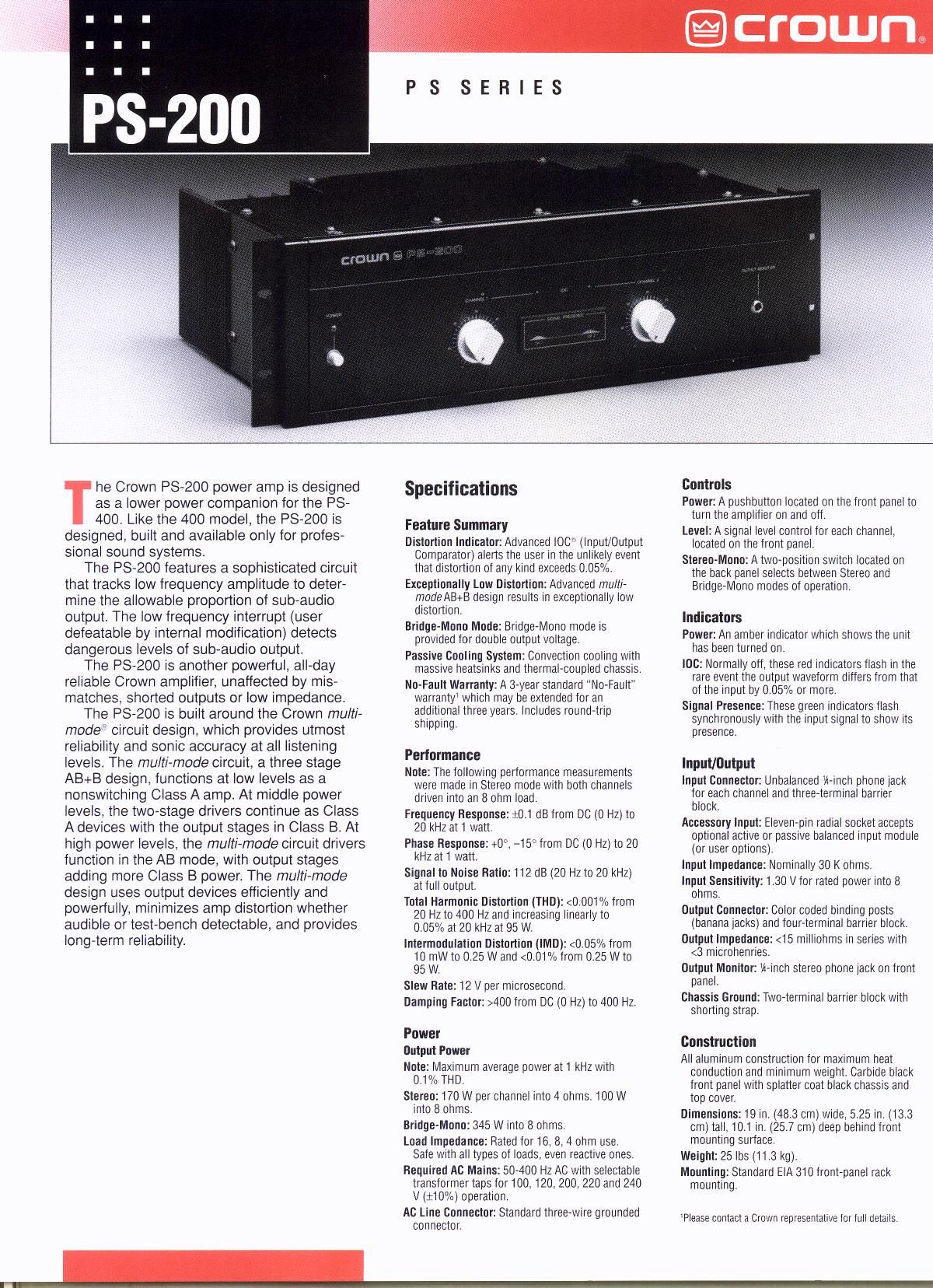

Page 1

MM

PS SERIES

,.,..,.....m .-

he Crown PS-2OO power amp is designed

as a lower power companion for the PS,

400. Like the 400 model, the PS-200 is
designed, built and available only for profes-
sional sound systems.

The PS-200 features a sophisticated circuit
that tracks low frequency amplitude to deter,
mine the allowable proportion of subaudio
output. The low frequency interrupt (user
defeatable by internal modification) detects
dangerous levels of sub-audio output.

The P8200 is another powerful, all-day
reliable Crown amplifier, unaffected by mis-
matches, shorted outputs or low impedance.

The Fs-200 is built around the Crown multi-
mode: circuit design, which provides utmost
reliability and sonic accuracy at all listening
levels. The mud/mode circuit, a three stage
AB+B design, functions at low levels as a
nonswitching Class A amp. At middle power
levels, the two-stage drivers continue as Class
A devrces With the output stages in Class B, At
high power levels, the mum-mode circuit drivers
function in the AB mode, with output stages
adding more Class B power. The multilmode
design uses output devices efficiently and
powerfully, minimizes amp distortion whether
audible or test-bench detectable, and provides
long-term reliability.

Specifications

Feature Summary

Distortion Indicator: Advanced lOC (input/Output
Comparator) alerts the user in the unlikely event
that distonion of any kind exceeds 0.05%.

Exceptionally Low Distortion: Advanced multi-
inodeAB+B destgn results in exceptionally low
distortion.

Bridge-Mono Mode: BridgerMono models
provided for double output voltage.

Passive Cooling System: Convection cooling with
massive heatstnks and thermal-coupled chassis,

No-Fault Warranty: A 3-year standard "Notault"
warranty which may be extended for an
additional three years Includes round-trip
shipping

Performance

Note: The following pedormance measurements
were made in Stereo mode With both channels
driven into an 8 ohm load

Frequency Response: 10.1 dB from DC (0 Hz) to
20 kHz at 1 watt.

Phase Response: +0", 45" from DC (0 Hz) to 20
KHZ at 1 watt.

Signal to Noise Ratio: 112 dB (20 Hz to 20 kHz)
at full output.

Total Harmonic Distortion (THU): <0 001 /a from
20 Hzto 400 Hz and increasing linearly to
0.05% at 20 kHz at 95 W.

lntermodulation Distortion (IMD): <0 05% from
10 mW to 025 W and <0.01% from 025 W to
95 W.

Slew Rate: 12 V per microsecond.

Damping Factor: >400 from DC (0 Hz) to 400 Hz,

Power

Output Power

Note: Maximum average power at1 kHz With
0 1% THDt

Stereo: 170 W per channel into 4 ohms, 100 W
into 8 ohms,

Bridge-Mono: 345 W into 8 ohms

Load Impedance: Rated for 16. 8, 4 ohm use
Safe with all types of loads, even reactive ones

Required AC Mains: 50400 Hz AC with selectable
translormer taps for 100, 120. 200, 220 and 240
\/ (110%) operation

AC Line Connector: Standard three-Wire grounded
connector

Controls

Power: A pushbutton located on the front panel to
turn the amplifier on and off,

Level: A Signal level control for each channel.
located on the front panel,

Stereo-Mono: A tworposition sviitch located on
the back panel selects between Stereo and
Bridge-Mono modes of operation.

Indicators

Power: An amber indicator which shows the unit
has been turned on,

IOC: Normally ott, these red indicators flash in the
rare event the output waveform differs from that
of the input by 0.05% or more.

Signal Presence: These green indicators flash
synchronously with the input Signal to show its
presence.

Input/Output

Input Connector: Unbalanced 1ii-inch phone Jack
for each channel and three-terminal barrier
block.

Accessory Input: Elevenspin radial socket accepts
optional active or passrve balanced input module
(or user options)

Input Impedance: Nominally 30 K ohms.

Input Sensitivity: 1.30 V tor rated power into 8
ohms.

Dutput Connector: Color coded binding posts
(banana jacks) and fourrterminal barrier block.

Dutpul Impedance: <15 milliohms in series wtth
<3 microhenries

Output Monitor: 1pinch stereo phone tack on front
panel

Chassis Ground: Two-terminal barrier block with
shorting strap,

Construction

All aluminum construction for maximum heat
conduction and minimum weight, Carbide black
front panel With splatter coat black chassts and
top cover.

Dimensions: 19 In, (48.3 cm) wide. 5.25 in (133
cm) tall, 101 in (25.7 cm) deep behind front
mounting surface.

Weight: 25 lbs (11.3 kg).

Mounting: Standard ElA 310 front-panel rack
mounting

'Please contact a Crown representative for full details

Page 2

PS SERIES

MODEL _ psm
Ac vans A 1212

AMPS . e
50th Hz

Max, POWER IN - 751: war-rs

|*(IUTFUTAJ

135 wRuls pen cmNMEL lNTO
mums. 2a HZ-Zo wtm
no MORE mm

nlspuz a:
SEHLEIAEHT

.1
CAUTIO . OCIAL COIINECYOH
inrsunzn row psuonx on
PSAMDDA ACCESSORIES arm

FTC Continuous Average Mix Average Single Cycle Tone Burst 40 m8 Tone Burst EiA Watts
_ . Power at 0.1% THD 0 (39de Watts at <0.05% THD Watts at <0 059/c THD at 1% THD
Configuration (See note 1) lSee onote 2) (See note 3) (See note 4) iSee note 5)
8 Load (ohms) 20H2720i Stereo 4 135 155 170 170
(both channels 8 95 95 100 105 110 120 105 105 100 100
powered) 1e 50 50 55 55 so 50 55 55 55 55
Bridge-Mono s 280 310 345 355 395 245 350 365 245 330 7*
(balanced output) 16 190 195 200 21 o 225 240 205 210 205 205

Architects Specifications

The power amplifier, being of two channels, shall
deliver a minimum of 95 watts into 8 ohms with both
channels operating. or 135 watts into loads of 4 ohms
each with both channels operating. When strapped
into mono it shall be capable of delivering 190 watts
into a 16 ohm load or 280 watts Into 8 ohm loads. The
amplifiers outputs shall have internal protection
against poSSlble shorted. mismatched and open
circuits. The circuitry shall Incorporate voltage
amplifiers whose slew rate is controlled to protect the
overall amplifier whose slew rate is controlled to
protect the overall amplifier against RF burnout. The
PS-ZOO shall provide (in dual channel operation) a
voltage gain of 20 0 12% or 26.3 :2 dB at maximum
gain, have an input senSitiVity 0t i.30 volts 1 2% for
full rated output and be capable of drivtng any load
safelyiincluding completely reactive loads (.775 V
input sensttlvity optional) Hum and noise shalt be 112
dB below rated output from 20 Hz to 20 kHz.
lntermodulation distortion shall be less than 0.05%
from 0.01 watts to 0.25 watts, and less than 01%
from .25 watts to 95 watts into 8 ohms. per channel.
The dimensions shall allow for standard 19 (48.26
cm) ElA rack mounting. it shall be 5% (13.34 cm)
high and 10%;" (25 72 cm) deep from the mounting
surface it shall weigh 25 pounds (11 3 Kg) net. The
power requirements shall be 50400 Hz All with taps
for 100. 120. 200. 220, or 240 V 110% At idle the
amplifier shall draw 30 watts or less. The amplifier
shall be class AB+B (multirmode) and be of
completely solid state design With a frequency
response from D020 kHz, 101 dB at 1 watt into 8
ohms. The power amplifier shall be a Crown PS-200

@o

i 1990 crown international Inc -Ciown lnteinatlcnal in: reserves
the ngm in make changes in speciricanors or products WithOLlf uflof
notice Crown loc and Multlrivludearorcolsfefedfmdemalhs of
Crown international inc

Crowns 3-Year No-Fault
Amplifier Warranty And 3+3
No-Fault Extended Warranty

Crown lnternational now offers a 3»
Year NoiFault Warranty for every new
Crown amplifier-an industry standard.
With this unprecedented NoAFault
protection, your new Crown amplifier is
warranted to meet or exceed original
specifications for the first three years of
ownership. During this time, if your
amplifier fails for any reason or does not
perform to original specifications, it will
be repaired or replaced at our expense.
This includes parts, labor and round-trip
shipping, even a shipping carton should
you need one. About the only things not
covered by this warranty are those
losses normally covered by insurance
and intentional abuse. And the coverage
is transferable should you ever decide to
sell your amp.

Thats not all; for a modest fee, Crown
will extend that protection for an addis
tional three years with our 3+3 No-Fault
Extended Warranty. Now thats commit
ment.

See your Crown dealer for full war-
ranty disclosure and details on the No-
Fault and 3+3 No-Fault Extended
Warranty.

. Continuous power in the context of Federal Trade Commis-
sron testing is understood to he a minimum of five minutes of
operation, Harmonic distortion is measured as the RMS sum
total as a percentage 01 the fundamental otitpiil loitage Thls
distortion specification applies fol all wattages greater than
0 25 Watts

2 A 1 kHz sine wave is presented to the amplifier and the output

monitored for nonlinear distortion. The level is increased

until the THD reaches 0.1%. At this level the average power
per channel is reported

A Single cycle of sine wave is presented to the amplifier and

monitored for nonlinear distortion The average power during

the burst is reported Speakers must be able to Withstand this
level if they are to be safely used With this amplifier

A 40 millisecond burst or two cycles of sine wave (whichever

is of greater duration) is used and the power computed as the

average power during the burst, The duty cycle 0 this test is

10 percent This power level is a measure of how loud an

amplifier is as perceived by the hearing process

EiA standard its-490 (both channels driven)

co

as

5

CfOLUl'I.

Made in USA Exported as Amcrorn

F.O Box 1000

Elkhart lndlana 4651551000

TEL: 219/29478000

FAX. 219/29478329 Crown DlVlSIOi'l
219/294-8346 Arncron Divtsion

TWXI BTU/29472160

K-107275
