Crown 280A Brochure

Page 1

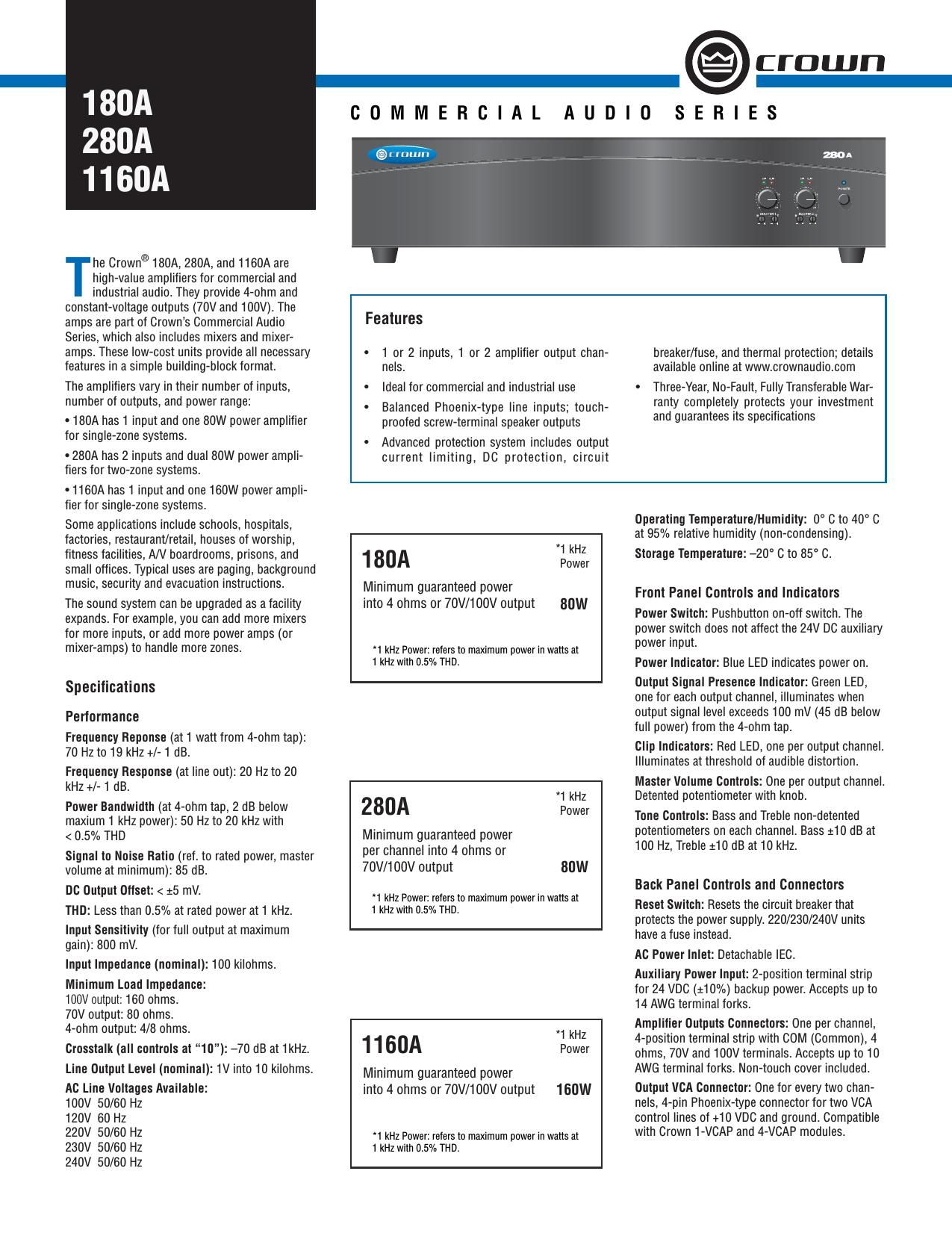

Crown International 1718 W. Mishawaka Rd. Elkhart, IN 46517-9439 TEL: 574-294-8200 FAX: 574-294-8FAX www.crownaudio.com 9/07 138118-\ 2A Speci cations subject to change without prior notice. Latest information available at www.crownaudio.com. Crown and Crown Audio are registered trademarks of Crown International. Other trademarks are the property of their respective owners. Printed in U.S.A. © 2007 Crown Audio ®, Inc. Line Out Connector: One 3-pin balanced Phoenix- type connector per output channel. Post master, pre-VCA. Level controlled by master volume control. Amp Input Connector: 3-pin Phoenix-type, high-impedance balanced, one per amplifer channel. CoolingConvection cooled. ProtectionCurrent Limit Protection: Included. Thermal Limit Protection: Over-temperature thermal cutout. DC-Fault Load Protection: Included. Included Accessories Power cord Detachable rack ears Screws for rack ears Non-touch cover for output connectors Phoenix-type connectors Spade lugs Optional Accessories 1-VCAP remote volume control for one channel. 4-VCAP remote volume control for four channels. DimensionsEIA Standard 19-inch (48.3-cm) rack mount width (EIA RS-310-B) with rack ears, 3.5-inch (8.9-cm) height and 12.2-inch (31.0-cm) depth behind the mounting surface (not including non-touch cover). 4.1 inches (10.5 cm) high including feet. 13.9 inches (35.2 cm) deep from front of knobs to back of non-touch cover. Weight Net Weight: 180A: 21.0 lb (9.5 kg) 280A: 25.3 lb (11.5 kg) 1160A: 25.3 lb (11.5 kg) Shipping Weight: 180A: 26.0 lb (11.8 kg) 280A: 30.3 lb (13.7 kg) 1160A: 30.3 lb (13.7 kg) 280A back panel. 180A and 1160A are similar except for the number of ch\ annels. Crowns Three-Year, No-Fault, Fully Transferable Warranty Crown offers a Three-Year, No-Fault, Fully Transferable Warranty for every new Crown ampli er--an unsurpassed industry standard. With this unprecedented No-Fault protection, your new Crown \ ampli er is warranted to meet or exceed original speci cations for the rst three years of ownership. During this time, if your ampli er fails, or does not perform to original speci cations, it will be repaired or replaced at our expense. About the only things not covered by this warranty are t\ hose losses normally covered by insurance and those caused by intentional abuse. And the coverage is tra\ nsferable, should you sell your ampli er. See your authorized Crown dealer for full warranty disclosure and detail\ s. For customers outside of the USA, please contact your authorized Crown distributor for warranty infor\ mation or call 574-294-8200. 180A 280A 1160A
