Crest Audio XCVA 40 Schematic

This is the 7 pages manual for Crest Audio XCVA 40 Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 7
Crest Audio XCVA 40 Schematic

Extracted text from Crest Audio XCVA 40 Schematic (Ocr-read)

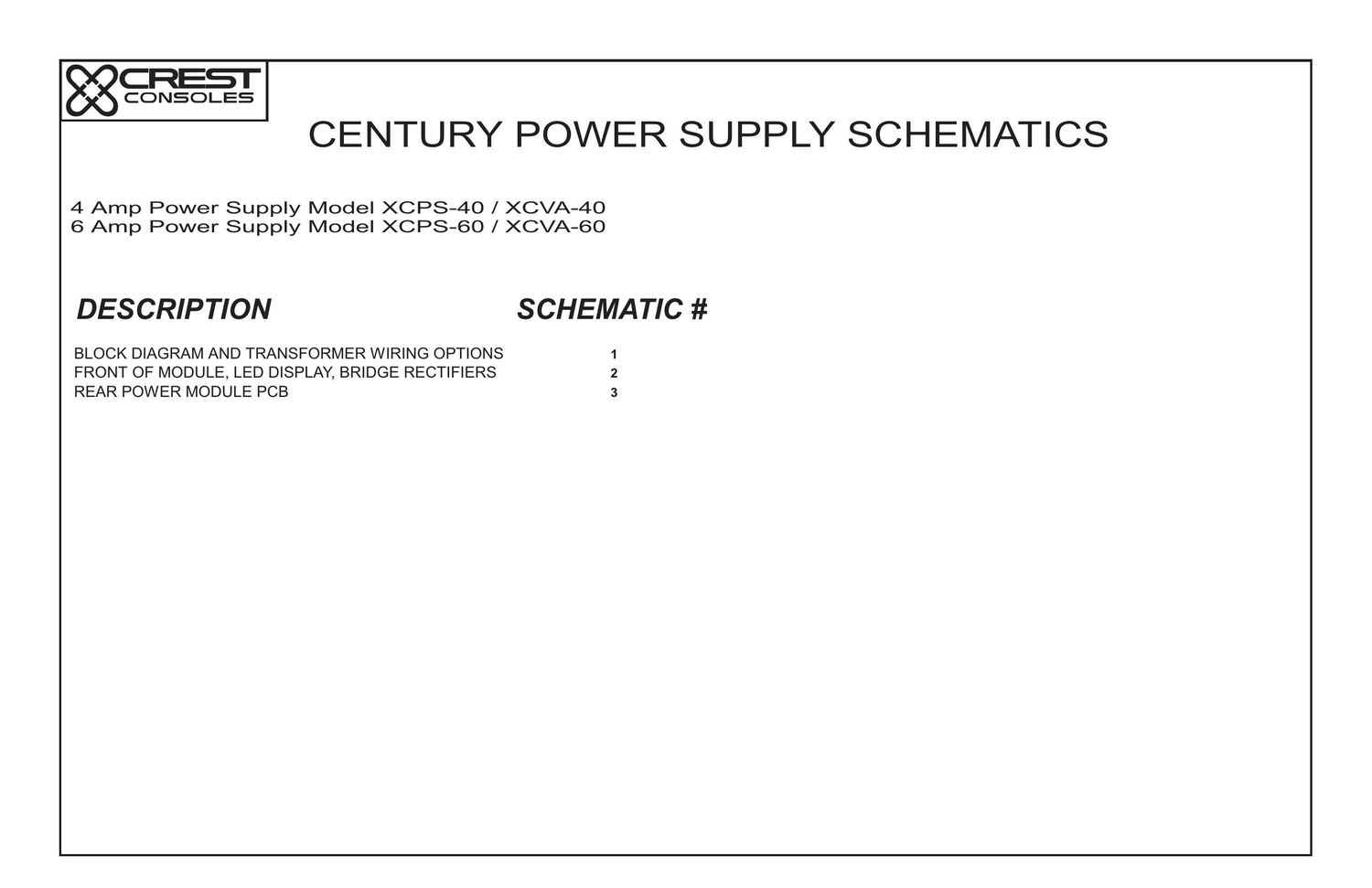

Page 1

CRESI'

CONSOLES

CENTURY DOWER SU DDLY SCHEMATICS

4 Amp Power Supply Model XCPS-4O / XCVA-4O
6 Amp Power Supply Model XCPS-SO / XCVA-60

DESCRIPTION S CHEMATIC #
BLOCK DIAGRAM AND TRANSFORMER WIRING OPTIONS 1
FRONT OF MODULE, LED DISPLAY, BRIDGE RECTIFIERS 2

REAR POWER MODULE PCB 3
