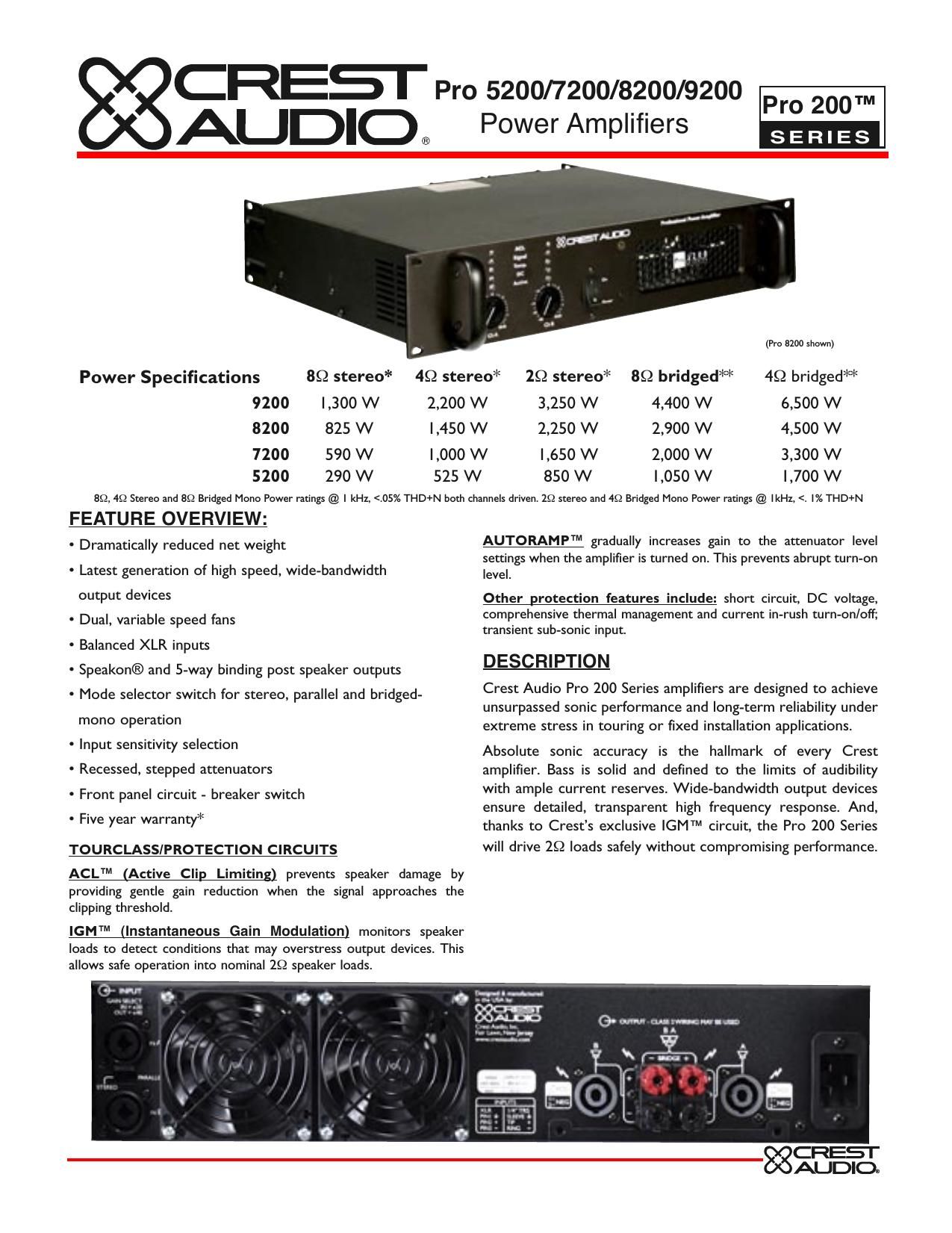

Product Specifications Pro 200™ Series 5200 720082009200 Stereo Power: 8Ω290 W 590 W 825 W1,300 W 4Ω 525 W 1,000 W 1,450 W2,200 W 2Ω 850 W 1,650 W 2,250 W3,250 W Bridged Mono Power: 8Ω1,050 W 2,000 W 2,900 W4,400 W 4Ω 1,700 W 3,300 W 4,500 W6,500 W Output Voltage RMS 52 V 75 V 90 V 113 V 8Ω and 4Ω Stereo Power ratings @1kHz, <0.05% THD+N both channels driven 2Ω stereo & 4Ω Bridged Mono Power ratings @1 kHz, <0.1%THD+N Frequency Response: 10 Hz – 100 kHz; +0, -2 dB at 1 watt Power Bandwidth: 10 Hz – 35 kHz; +0, -2 dB at rated 4Ω power Damping factor: >300:1 8Ω @ 20 Hz to 1kHz Input CMRR: > -85 dB @1kHz Gain: selectable between x40 (32 dB) and x20 (26 dB) Input Sensitivity (x40) 4 Ω rated power +/-3%: 1.12 V 1.58 V 1.87 V2.35 V Input Impedance 15kΩ Balanced Hum and Noise A-weighted @ 8 Ω rated power >-110 dB >-110 dB >-110 dB>-113 dB Crosstalk 1kHz @ 8Ω rated power >-65 dB>-70 dB >-70 dB>-70 dB Class A/BH HH Power Supply Switched Mode Current Draw @ 120 VAC 1/8 power 4Ω 875 W 7.3 A 875 W 7.3 A 1,250 W 10.5 A 2,200 W 18.4 A 2Ω 1,380 W 11.5 A 1,400 W 11.7 A 1,875 W 15.7 A 3,350 W 27.9 A 1/3 power 4Ω1,310 W 10.9 A 2,500 W 20.8 A 3,050 W 25.4 A5,000 W 41.7 A 2Ω 2,100 W 17.5 A 3,900 W 32.5 A 4,350 W 36.25 A7,300 W 60.9 A Thermal Emissions 1/3 power, 4 Ω Bridged BTU/hr 7,165 13,308 14,84324,909 Cooling Back to front via 2 variable speed fans Input connectors Balanced female XLR Output connectors Speakon® connectors and five-way binding post Controls Front panel: twin recessed stepped attenuators, circuit breaker/power switch Rear panel: mode select, gain select LED indicators Signal presence, ACL™ (Active clip limiting), Active status, Temp Construction Aluminum Chassis Dimensions 3.5" x 19" x 12.25" (13.75" to rack ears) 89 mm x 483 mm x 311 mm (349 mm to rack ears) Weight 24 lbs. (10.9 kg) Architects & Engineers Specifications:The power amplifier shall consist of 2 channels. Each channel will delver a minimum of (290 / 590 / 825 / 1300) watts at 8 ohms, (525 / 1000 / 1450 / 2200) watts at 4 ohms, (850 / 1650 / 2250 / 3250) watts at 2 ohms, 20 Hz – 20 kHz. In Bridged mono mode, it will deliver a minimum of (1050 / 2000 / 2900 / 4400) at 8 ohms, (1700 / 3300 / 4500 / 6500) at 4 ohms, 20Hz – 20 kHz. It shall weigh 24 lbs. The amplifier shall incorporate protection circuitry against output short circuits, DC voltage on outputs, thermal overload and load protection due to any form of amp failure. It will include impedance sensing circuitry, a RMS clip limiter and Autoramp signal control. The amplifier shall have a sensitivity of 1.12 / 1.58 / 1.87 / 2.35 volts (x40) at the input, which will deliver full rated output power in any output configuration. Gain can be changed to x20. The hum and noise level shall be greater than (-110 dB / -110 dB / -110 dB / -113 dB) A weighted. The amplifier shall have a class (A / B, H, H, H) output stage with a switch power supply. The frequency response shall be greater than 10 Hz – 100 kHz +0, -2 dB at1 watt at full rated output power @ 4 ohms .05% THD. The amplifier will operate at either 120 VAC, 60 Hz (safe operating range 100-132 VAC) or at 230 VAC, 50 Hz (safe operating range 200-264), voltage selection determined at factory. Maximum current draw at 120 V shall be no greater then 30amps, both channels driven continuously into a 2 ohm load at 1/8 power. Front panel indicators shall include LED indicators for signal present, ACL (automatic clip limiting), Temp, and Active status. Front panel attenuators will be recessed and detented. Input connectors shall be XLR per channel. Output connectors shall be 5-way binding posts and Speakon®, per channel. The packaging of the amplifier shall allow for standard rack mounting without requiring space between similar units as long as the rack is properly ventilated. Dimensions main chassis shall be 19" wide (483mm), 12.25" deep (311mm), 3.5" high (89mm). The amplifiers shall be designated the Crest Audio model Pro 5200. *Five Year warranty for the Uni ted States Logo referenced in Directive 2002/96/EC Annex IV (OJ(L)37/38,13.02.03 and defined in EN 50419: 2005 The bar is the symbol for marking of new waste and is applied only to equipment manufactured after 13 August 2005 Crest Audio Inc. 711 A Street, Meridian, MS 39301 USA - TEL: 866.812.7378 - FAX: 601.486.1380 - www.crestaudio.com Crest Audio reserves the right to make improvements in manufacturing or design which may affect specifications. ver 1.0 09/22/05 ®
