Crest Audio FCV 220 Schematic

This is the 9 pages manual for Crest Audio FCV 220 Schematic.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 9
Crest Audio FCV 220 Schematic

Extracted text from Crest Audio FCV 220 Schematic (Ocr-read)

Page 1

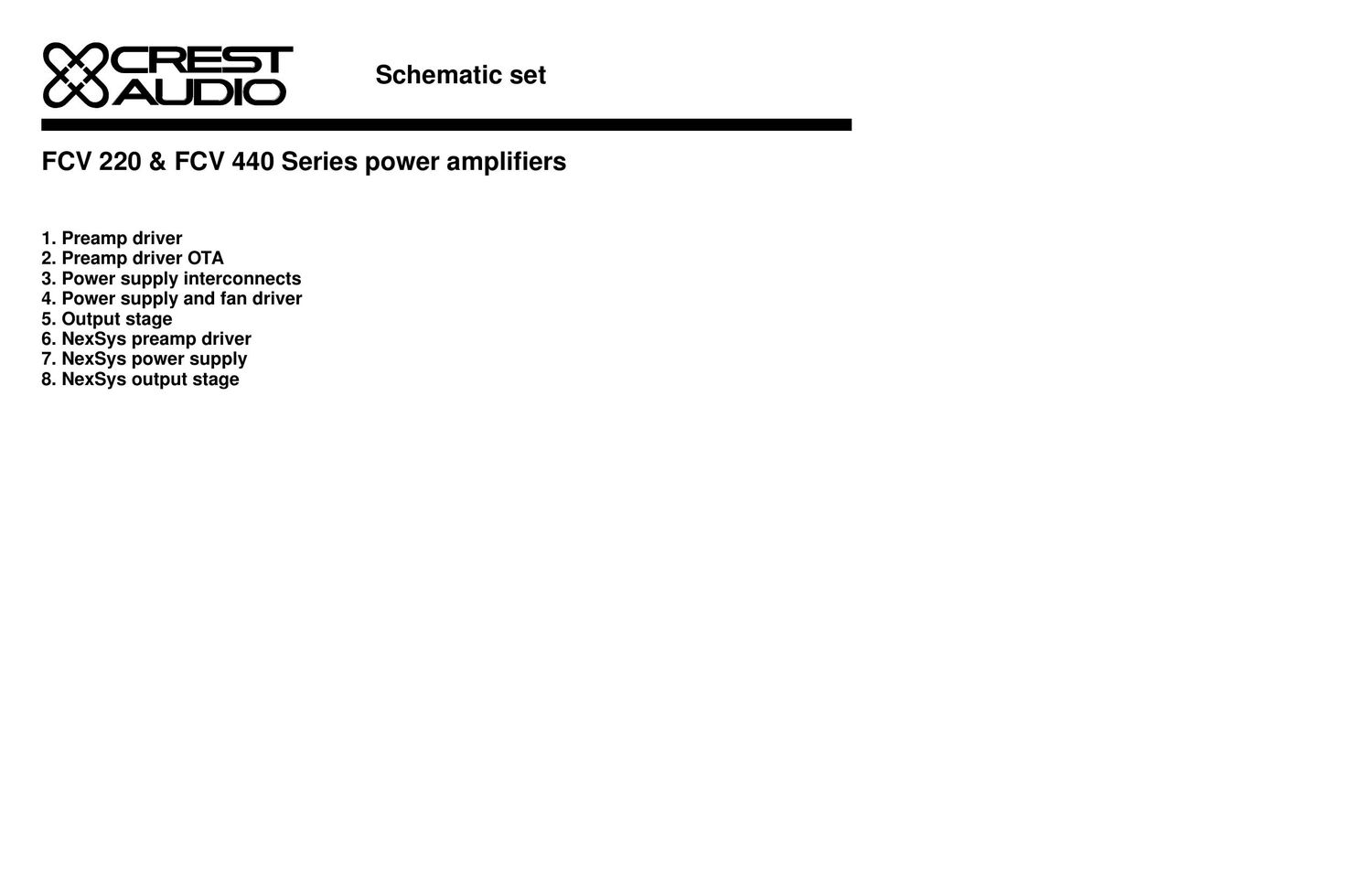

CRESI'
AUDIO

Schematic set

FCV 220 & FCV 440 Series power amplifiers

Preamp driver

. Preamp driver OTA

. Power supply interconnects
. Power supply and fan driver
. Output stage

. NexSys preamp driver

. NexSys power supply
NexSys output stage

pouoamhwrorn
