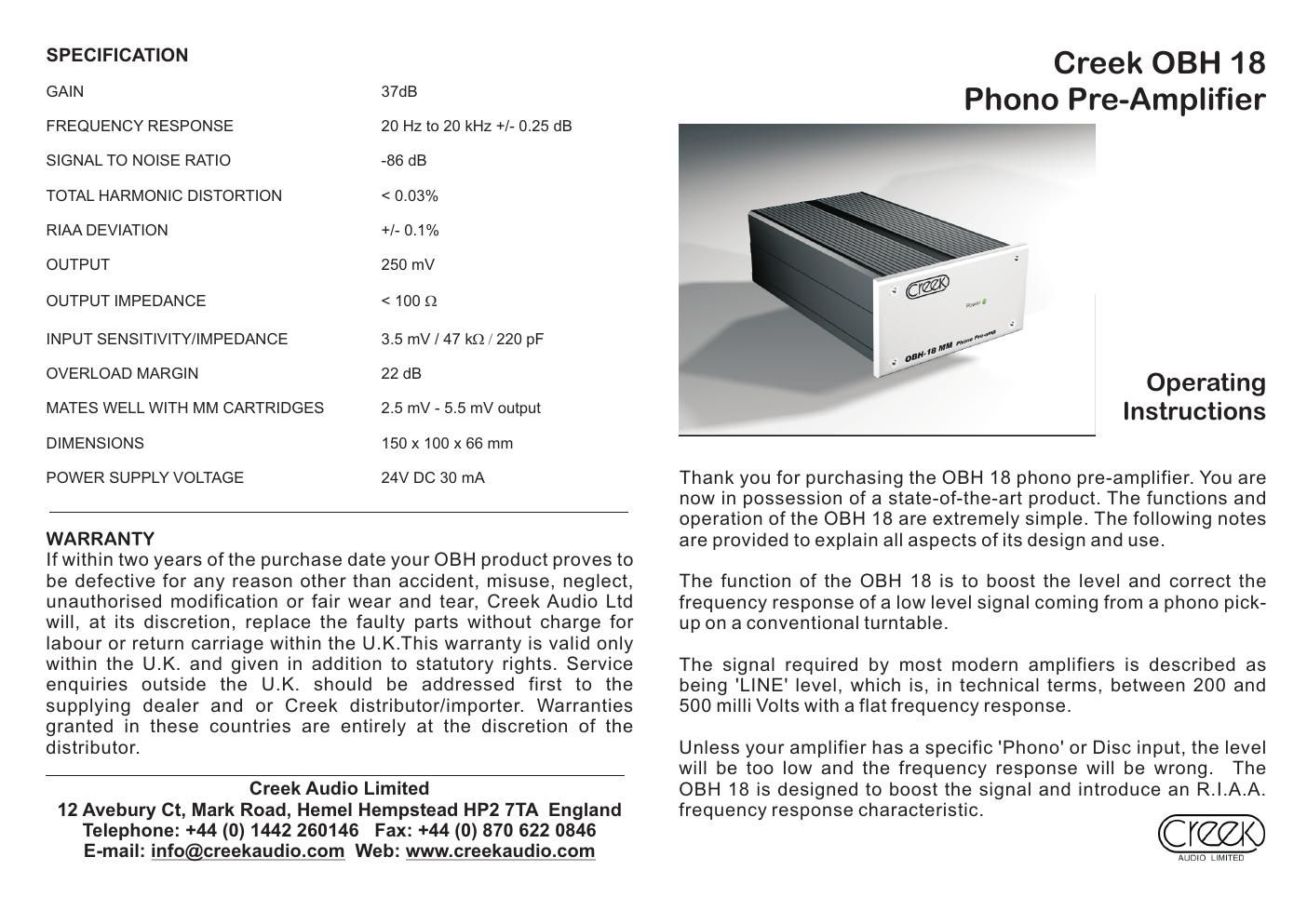

Creek obh 18 owners manual

Page 1

INPUT AND OUTPUT CONNECTION WIRING THE OBH 18 The output from the turntable is normally terminated on two 'Phono' plugs or RCA jacks. The level is dependent on the type of cartridge used, and in the case of moving magnet will normally be around 2 - 5 milli Volts and for moving coil - 200 - 500 micro Volts. Most MM cartridges will be properly matched by using the OBH 18. By plugging the signal leads from your turntable into the OBH 18 input, the signal will be boosted to 'LINE' level at its output. To prevent hum pick-up, it may be necessary to join the turntable's earth lead to the OBH 18 ground terminal. The output from the OBH 18 can be connected to most integrated amplifiers and pre-amplifier's line inputs via a regular Phono to Phono (RCA to RCA) stereo interconnect lead. The output impedance of the OBH 18 is <100 W, therefore it can be used to drive long interconnects without loss, provided they are high capacitance types. Connect the OBH 18 to the input of your amplifier with a stereo POWER SUPPLY REQUIREMENTS RCA inter-connect cable. If using a Creek integrated amplifier In common with all electrical appliances, the OBH 18 requires a connect to the first input. power supply. The connection for the phono output from the turntable plus The requirement for the OBH 18 is for 24 Volts DC at 30 milli-Amps ground is clearly marked on the rear panel. current, minimum. A custom Creek power supply (Creek-Uni) has been provided and this must be connected via the DC inlet on the The power supply is connected to the 2.1mm positive pin power rear panel of the OBH 18. jack and then to the wall socket. The OBH 15 should be placed away from power supply hum fields for the lowest noise operation. The power supply which has been provided is a NOTE Due to the inherent muting circuitry in the OBH 18, the signal will take a few seconds to be heard after the power is switched on. It is necessary for the OBH 15 to be burned in for at least 24 hours before its full sound quality potential can be realised. The on/off switch is located on the rear panel. As the OBH 18 draws very little power it may be left switched on permanently. switchable supply with a universal input range of 100 – 240 Volts. The Creek-Uni power supply is supplied with a pack of universal plug fittings to adapt for Europe, U.K. and the Far-east, USA and Australia. Choose the correct fitting for your country of use and simply snap in place.
