Creek obh 12 owners manual

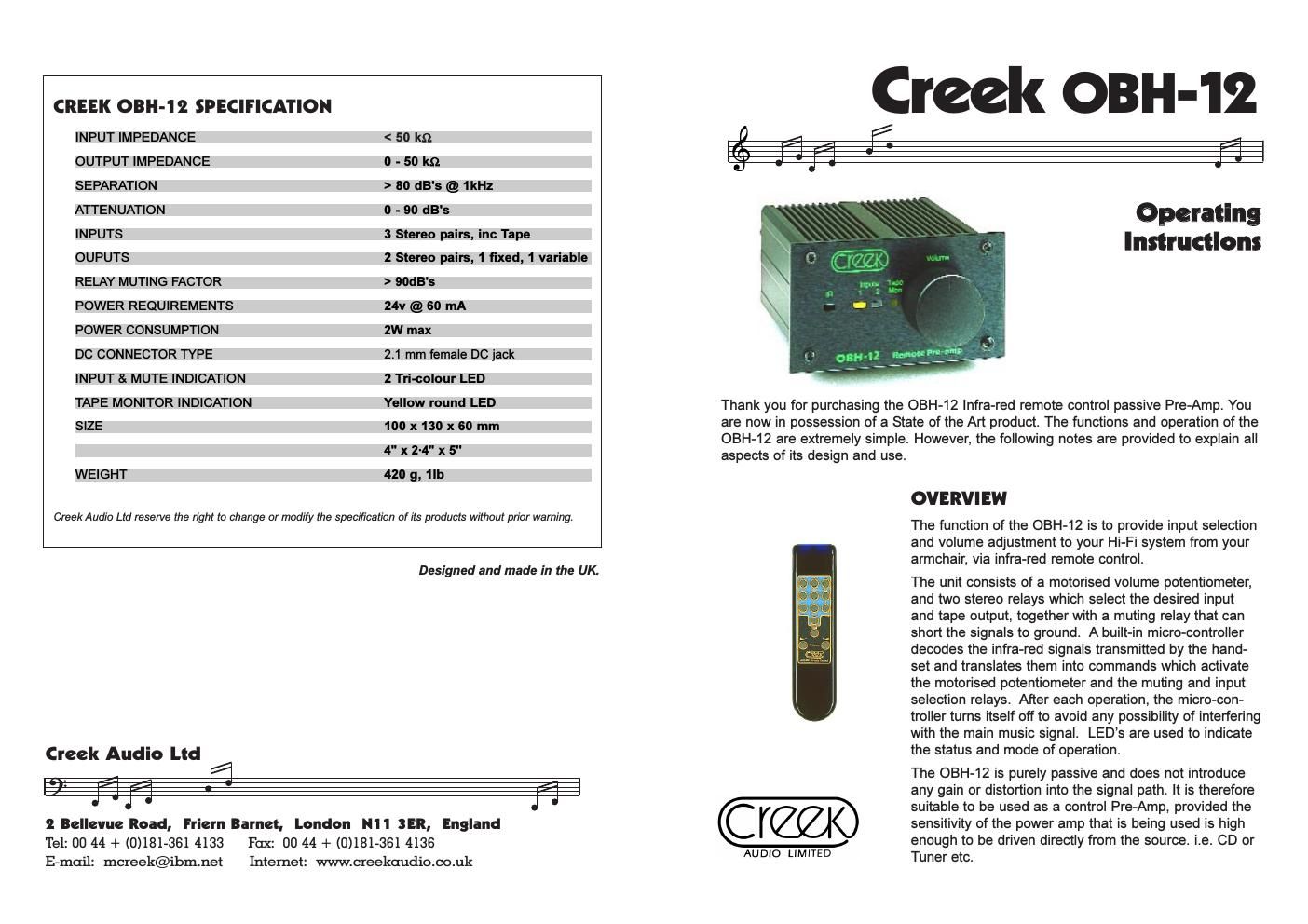

Page 1

The volume control can be operated manually at any time, whether the OBH-12 is powered or not, but without power only Line 1 can be utilised. MAINS CONNECTION When unpacking the module please keep the packing material in a safe place for possible future use. In the pack there is a separate mains adaptor, prepared for the mains volt- age supply in the country of use. The plug at the end of the fixed cable should be firmly inserted into the connector on the OBH-12 rear panel marked DC inlet 24V - 60mA". Remember, do not overload the mains wall socket with too many plugs or adaptors. If in doubt, please contact your supplying dealer or a qualified electrician. The OBH-12 draws less than 2 Watts of power from the mains under all conditions so it can safely be left switched on without significantly increasing your electricity bill. INPUT AND OUTPUT CONNECTIONS Line 1 and 2 are identical. The output from a CD, Tuner, AV or from an OBH-8 or 9 phono pre-amp can be connected to either of them. For tape machines, use the Tape input and output - the tape monitor function will allow recordings to be made and played back. The output from the OBH-12 should be connected to a power amplifier with suitable sensitivity (gain). Remember, the OBH-12 will not increase the signal from input to output. VOLUME LEVEL The volume control is used to alter the relative level of the sound output from the amplifier. It is important to realise that the volume control only acts to reduce, or atten- uate, the incoming signal to the power amplifier stage. The maximum power of an amplifier is available only if the level of signal available from line level equipment is sufficient to drive it to clipping, which will be different from one amplifier to another. The volume control is therefore also used to balance the level from one piece of equipment to another. If it is found necessary to have the volume control set to a position which is considered to be high before the desired level of volume is obtained, it does not necessarily mean that the amplifier is having to work too hard or "flat-out". Consult your dealer if you need more advice. Always have the volume control set at minimum (counter-clock- wise) when switching your amplifier on and off, to avoid thumps or sudden loud noises. POSITIONING OF THE OBH-12 The OBH-12 needs to be powered from its adaptor to operate the volume, input and mute functions via the remote control. It will work best if placed on a suitable hard sur- face or Hi-Fi equipment cabinet. Should it be necessary to place the OBH-12 on the top of other audio or video equipment, avoid obstructing any ventilation slots that could cause overheating, or internal mains transformers which might induce hum pick-up. Very heavy signal interconnects may cause the OBH-12 to tip backwards. There are two slots on the bottom that could be used to lock it in position. Do not obstruct the IR sensor on the front panel. OPERATING THE OBH-12 BY REMOTE CONTROL The OBH-12 has two line inputs, which can be selected by pressing either button 1 or 2 on the handset. The appropriate LED will light green. By pressing the volume up or down buttons at the bottom of the Creek remote control handset, the motorised poten- tiometer will move the control knob and cause the input status LED indicator to flash yellow. After a second the LED will revert to green indicating that the micro-controller has gone to sleep until the next operation. Pressing the Mute button on the handset will cause a relay to cut the signal from the OBH-12 and change the active LED status indicator to red. To un-mute, press the Mute button again or the volume up button (volume down will not un-mute the signal). To un-mute the OBH-12 without the handset, remove the power supply for 10 secs. To select the tape player or to monitor a tape recording press button 5 Tape 1. The round yellow LED will light. Press button 5 Tape 1 again to switch this off. All other buttons on the handset are reserved for other future Creek remote controlled products. CAUTION Your OBH-12 amplifier is designed to give you years of reliable use. However, it is necessary to take care of your possession, so never overheat and only use the recom- mended Creek OBH power supply. The OBH-12 is designed to comply with the latest European EMC requirements. However, it should be noted that it is not possible to guarantee faultless operation of the equipment if it is used close to the source of high powered radio transmissions, such as can be found in mobile telephones or CB radio etc. Care should also be taken to place it away from the source of mains interference caused by mains transformers in other equipment. Electrical switching noises from domestic or industrial heating sys- tems, conducted periodically down the mains supply, can sometimes be amplified and present themselves as a click or a thump through a Hi-Fi system. If you suspect that a fault has developed, do not remove the cover plate. There are no user serviceable parts inside. If you are unfortunate enough to need service work car- ried out on the OBH-12, it should be returned to your dealer for his expert help, in the original packing material if possible.
