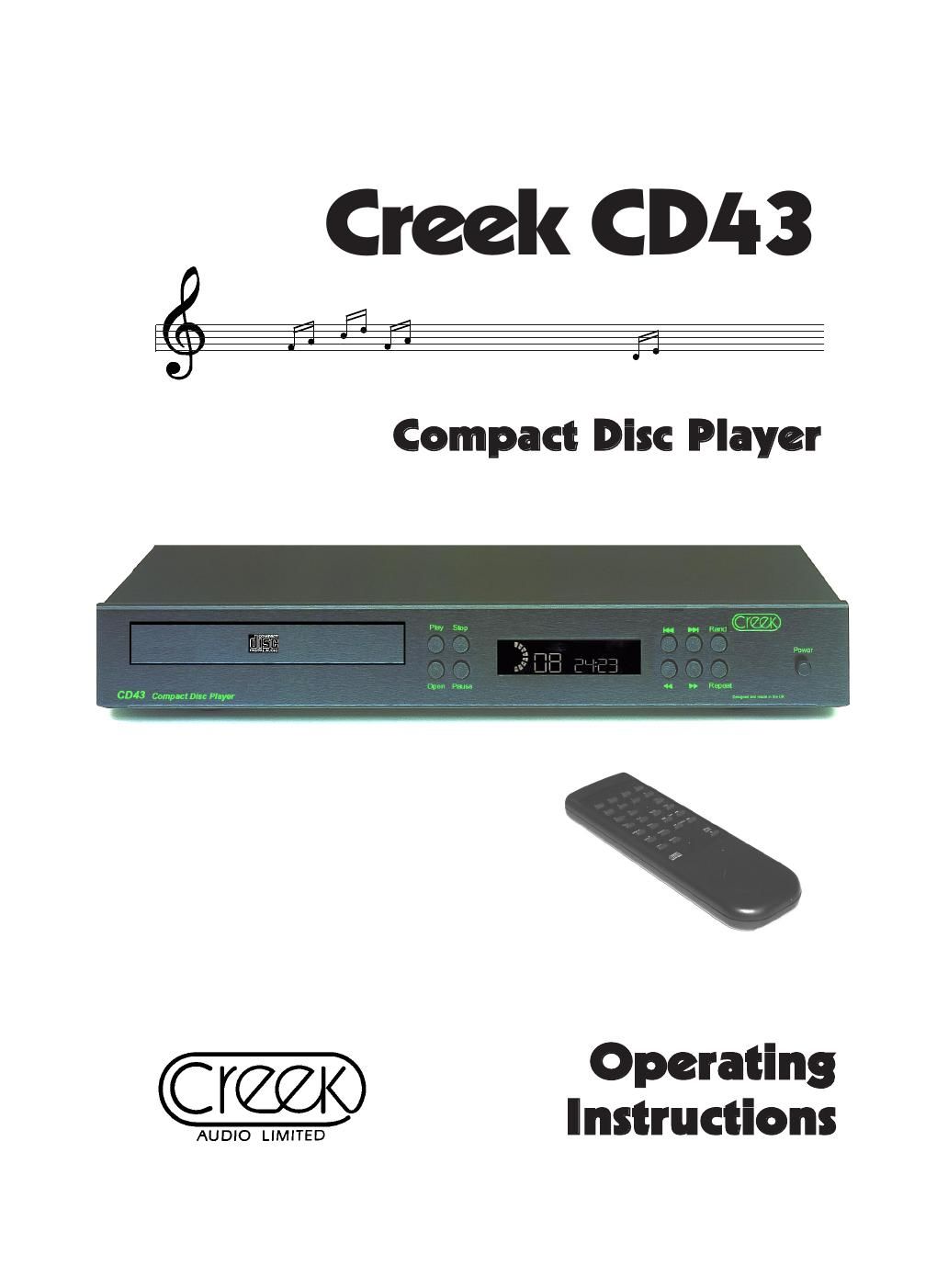

Page 1
This CD player is designed to operate on 220-240 Volts 50Hz AC or 110-120 Volts 60 Hz AC. Normally the equipment is supplied with a mains lead with a fitted 3 pin plug suitable for the country it is to be used in. If the plug needs to be changed, please follow the instructions below. PLUG FITTING INSTRUCTIONS The wires in the mains lead are coloured in accordance with the following code: Blue - Neutral Brown - Live Green / Yellow - Earth In the UK the wires must be connected to the terminals in the plug as follows: Blue - N or Black Brown - L or Red Green / Yellow - E or Earth NOTE 1. If a 13-amp plug is used, in the UK it must be fitted with a 3 Amp fuse. 2. If a 3-pin plug with earthing contact is used, the Green/Yellow wire must be connected to the E terminal. 3. As with all electrical equipment, it is recommended that the mains plug is removed from the wall socket when not in use. TO ACHIEVE MAXIMUM PERFORMANCE FROM YOUR CD PLAYER: 1.Install the equipment in a location which is relatively free of moisture and dust, and which is well ventilated. 2. Avoid installing the equipment in a location exposed to direct sunlight or extreme heat (such as above a heater or radiator). 3. The equipment may not be able to perform at its best in an extremely cold or hot environment. Do not attempt to use below 41o F/5o C or above 95o F/35o C. 4. Always handle discswith clean hands. Avoid using scratched discs.. 5. Keep this manual in a safe place for future reference. 6. Do not attempt to clean the CD player or CD discs with chemical solvents, as this may cause irreparable damage. Use a clean, dry cloth, or specially designed cleaning materials for discs. 7. If the CD player malfunctions, do not open the unit and attempt to repair it yourself. This is a highly technical product and requires specialist service - return it to your dealer. 8. Use batteries (2 x AA/MN 1500) of the same type in the remote control handset. The use of odd or different type cells will affect its performance. 2 CD43 Compact Disc Player NL E Brown to Live Blue to Neutral Plug CONGRATULATIONS ON YOUR PURCHASE Y our new CD 43 Compact Disc Player is designed to provide maximum enjoyment and years of trouble free service. If this is your first CD player, you will find the compact disc system a major step forward in the science of audio technology. By employing the most sophisticated digital and optical technologies, the compact disc not only offers the ultimate in sound reproduction, it also provides operating features which have never been seen before in audio equipment designed for home, such as fast access to any track on the disc, very simple programming and armchair control. Please read this manual thoroughly. It will explain the features and operation of your CD Player and help to ensure a trouble free installation. Please unpack your CD Player carefully. We recommend that you save the carton and packing material, as they will be helpful should you ever need to move your unit or return it for service. Your CD Player is designed to work in a horizontal position and it is important to allow at least two inches of space behind the unit for adequate ventilation and for the cables. To avoid damage, never place the unit near radiators, in front of heating vents, in direct sunlight or in an excessively humid or dusty location. UK ONLY: FOR ADDED SAFETY, WHEN CONNECTING THE AC MAINS LEAD TO A 3 PIN PLUG USE A 3A FUSE APPROVED BY ASTA TO BS1362 - WITH ASA MARK SAFETY INFORMATION
Page 2
3 CD43 Compact Disc Player NOTE The equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause interference to radio communications. However, there is no guarantee that interference will not occur in some instances. If this product causes interference to radio or television reception, which can be determined by turning the equipment off and on, try to correct this by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the radio or TV receiver. Connect the equipment into a mains outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician. SAFETY WARNINGS CAUTION! Invisible laser radiation when top cover is removed. Note: The specification and design are subject to change for improvements without notice. CAUTION PERFORMING ADJUSTMENTS OR PROCEDURES OTHER THAN THOSE SPECIFIED HERE MAY RESULT IN HAZARDOUS EXPOSURE. THE CD PLAYER SHOULD NOT BE REPAIRED BY ANYONE EXCEPT QUALIFIED SERVICE PERSONNEL. OTHER FEATURES 1. Infra-red remote control. 2. High precision 24 bit, DSdigital to analogue conversion. 3. 128 Fs filter. 4. 3-beam optical laser pick up. 5. 16 program memory. 6. LCD display - back lit green. 7. Shuffle function (random selection). 8. Repeat facility. 9. Intro scan facility. 10. Auto space facility. SPECIFICATION Power requirementsAC 220-240 V 50 Hz Power Fuse ratingT 250 mA or:AC 110-120 V 60 Hz T 500 mA Power consumption15 Watts max Frequency response1 Hz - 20 kHz ± 0.5 dB Output level 2.2 V RMS at 1kHz Output impedance600 W W , , min load 10 kW W Laser typeSemiconductor ALGaAs Wavelength790 nm ± 25 nm Light output (cw)0.18 mW typical Signal to noise ratiobetter than 96 dB Dynamic rangebetter than 100 dB Number of channels2 Total harmonic distortionLess than 0.01% at 1 kHz Dimensions420 x 70 x 280 mm Class 1 Laser Product
