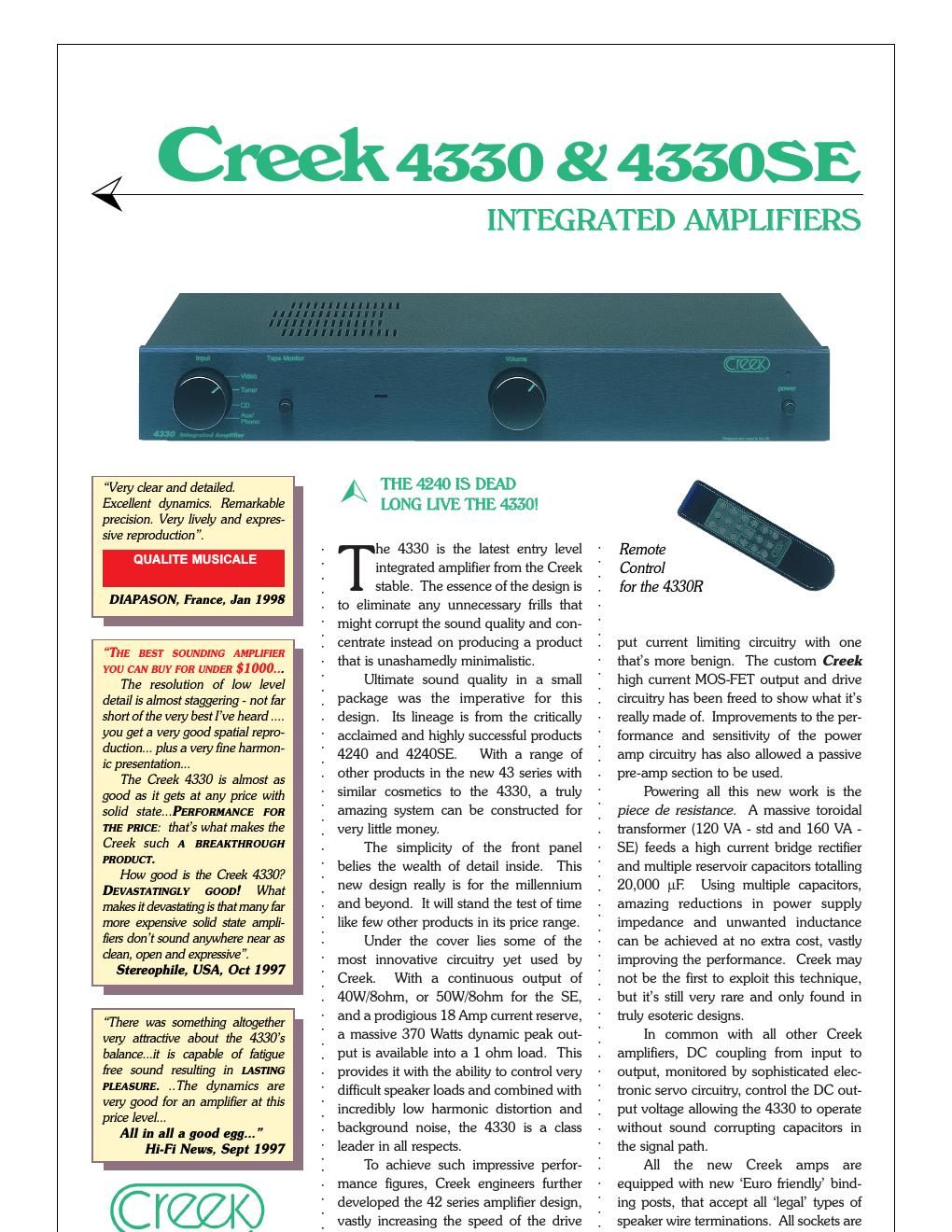

Creek 4330 brochure

Page 1

For vinyl enthusiasts, Creek can supply a range of plug-in modules that match MM and MC cartridges. This facility is augmented with an optional extra plug-in Pre-amp stage for higher input sensitivity. Not content with improving the product in all sonic and tech- nical respects Creek have now developed a sonically friendly remote control volume option that uses a motorised poten- tiometer and a muting relay, to avoid corrupting the signal path in any way. During the time the remote control circuitry is not in use it is designed to send its microcontroller to sleep, reduc- ing any potential for sonic degradation to a minimum. In conclusion Creek prod- ucts now represent better value for money than ever before. Internal Layout × Back Panel × C CR RE EE EK K 4 43 33 30 0 & & 4 43 33 30 0S SE E I IN NT TE EG GR RA AT TE ED DA AM MP PL LI IF FI IE ER RS S T TE EC CH HN NI IC CA AL L S SP PE EC CI IF FI IC CA AT TI IO ON NS S × × 2 Bellevue Road, Friern Barnet, London N11 3ER, England Tel: 00 44 + (0)181-361 4133 E-mail: mcreek@ibm.net Fax: 00 44 + (0)181-361 4136 Internet: www.creekaudio.co.uk 4330 & 4330R 4330SE Power Output (both channels)40 Watts into 8 W W 50 Watts into 8 W W Power Output (one channel)45 Watts into 8 W W 60 Watts into 8 W W Maximum Current (5mS for 3% THD)>18 Amps >18 Amps Total Harmonic Distortion < 0.05% 20 Hz to 20 kHz < 0.05% 20 Hz to 20 kHz Frequency Response3 Hz to 25 kHz - 1dB 3 Hz to 25 kHz - 1dB Power Amp Slew Rate> 40 V per m m S > 40 V per m m S Input Sensitivity (passive line)400 mV line level input for 40 W 450 mV line level input for 50 W Signal to Noise Ratio (A weighted @ 2/3 power)> 100 dB > 100 dB Separation (line input @ 1kHz)> 60 dB > 60 dB Remote controlVolume & Mute on 4330R Standard Plug-in MM and MC circuit MM Sensitivity and Impedance3.5 mV @ 47 kW W 3.5 mV @ 47 kW W MC Sensitivity0.75 mV @ 1 kW W 0.75 mV @ 1 kW W MM Signal to Noise Ratio> 70 dB > 70 dB Plug in active Pre-amp (switchable) +3dB, +6dB or +9dB +3dB, +6dB or +9dB Power Consumption at Idle< 40 Watts < 45 Watts Power Consumption at Full Power200 Watts 260 Watts Power Supply Voltage220/240 V AC 50 Hz 220/240 V AC 50 Hz 100/115 V AC 60 Hz 100/115 V AC 60 Hz Weight4.5 Kgs 10 lbs 6 Kgs 13.2 lbs Size42 x 6 x 23 cm, 16½ x 2¼ x 9" 42 x 6 x 23 cm, 16½ x 2¼ x 9" Creek Audio Limited reserves the right to modify or change the specifications of its products at any time without notice.
