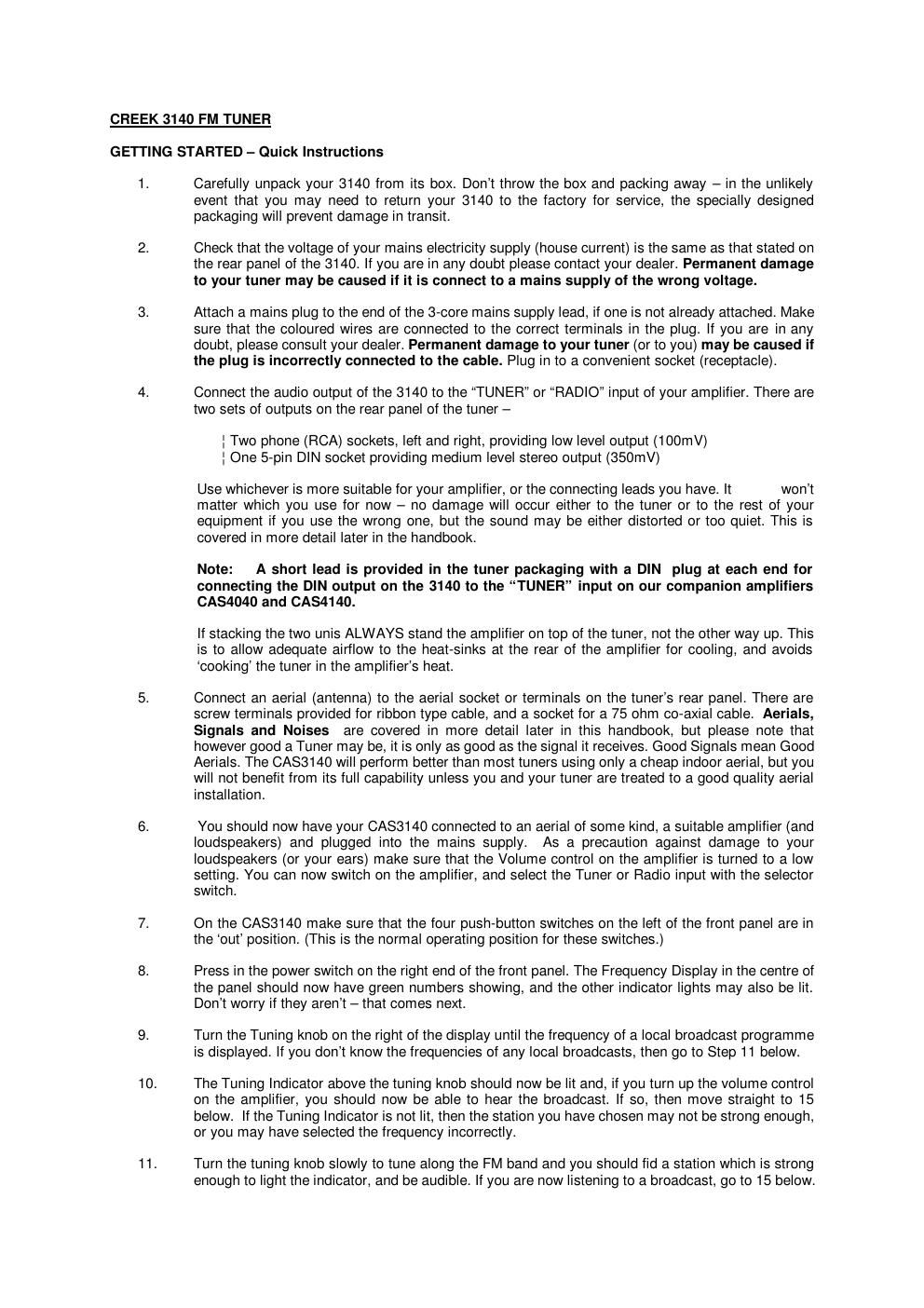

Page 1
If not, check that all four switches at the left of the front panel are in the out position and that the Input selector of the amplifier is correctly set to the Tuner input, that the TAPE MONITOR switch (if provided) is in the Source or Normal position and that the volume is sufficiently loud. 12. Again tune slowly through the band and watch the Frequency Display. You should see that it gets brighter and dimmer as you tune, and the Tuning indicator (and possibly the Stereo indicator above the mono switch) lights as the display gets brighter. If this is not happening, then check the aerial and its connections thoroughly, and try again. If the various indicators still fail to respond, go to 14 below. 13. If the Indicators are changing as you tune, but you still cannot hear anything, then carefully check the connections between the T40 and your amplifier, and that the input to which the T40 is connected is the one selected by the Input Selector. If all appears correct and there is still silence, then: 14. If you are still unable to hear any broadcast, call your dealer for help. If you have a knowledgeable friend to help you, then please ask them to read this Handbook first, as the functions of the controls on the CAS3140 are very different from most other tuners. There is a detailed description of the operation of the 3140 in the CONTROLS and FUNCTIONS section later in this Handbook. 15. You should now be listening to a radio broadcast through your 3140 and you can now get a feel for some of the various automatic functions it provides. Tune slowly through the FM band, and notice how the tuner remains silent until the Tuning Indicator lights. Your T40 tuner will normally only let signals through to the amplifier if they are of adequate audio quality. You will also see that the brightness of the Frequency Display varies as you tune. The brightness of the display is proportional to the strength of the received signal – the brighter the display, then the stronger the signal. This allows you to choose the strongest station to get the best possible reception in areas where there are more than one station broadcasting the same programme. So now you can tune your T40 to a station broadcasting some pleasant music, and settle down in a comfortable chair to read the rest of this Handbook…….. The next section gives a Technical Background to FM broadcasting and reception to help explain the operation of the features of the 3140. If you dont want to go into this much detail at this stage, then skip straight through to the section on CONTROLS and FUNCTIONS that follows, which explains the operation of the 3140 in detail. SIGNALS, AERIALS AND NOISES FM stands for Frequency Modulation, a method of transmitting radio signals. Generally FM is broadcast on VHF (Very High Frequencies), in the range 88 to 108 MHz (megahertz), although the limits of the band vary from country to country. AM stands for Amplitude Modulation, another method of radio transmission, generally used in the LF, MF and HF bands (Low, Medium and High Frequencies), in the range 150 to 3,000 kHz (kiloHertz). These bands used to be called Long, Medium and Short Wave, and measured in terms of wavelength in meters, from 2000m to 100m. Band width is a term which describes a range of frequencies, so that the generally accepted bandwidth of human hearing is from 20Hz to 20kHz. In audio to transmit audio signals and reproduce them with reasonable fidelity or quality it is therefore necessary to transmit a sizeable portion of this 20kHz bandwidth, an generally for FM radio the upper limit is set at about 15kHz as a reasonable compromise between transmitted radio bandwidth and received audio bandwidth. Without getting too deeply involved in the technicalities of radio, we can say without too much oversimplification that, for a given received audio bandwidth there is no difference in quality between AM and FM. However, there is an enormous difference between the amount of radio bandwidth needed by the two different systems. With AM, the signal is transmitted by varying or modulating the amplitude of the transmitted radio carrier wave. The modulation process creates signals on both sides of the carrier frequency, called sidebands, which are equal to the modulating bandwidth. So to transmit our 15kHz of Audio we need 30kHz of Radio, and to transmit BBC Radio 4 on 200kHz Long Wave we would use a portion of the band from 170kHz to 230kHz, or practically the whole band! For this reason the transmitted audio bandwidth on broadcast AM is significantly restricted to well below 5kHz or so, and this is why AM is thought to be lo-fi, not because AM is inherently an inferior transmission medium, but because AM broadcasts are transmitted that way, so that enough stations can have a fair share of the available bandwidth. With FM, the signals are transmitted by varying or deviating the carrier frequency to either side. The amplitude of the carrier remains constant, and it is its frequency that changes to carry the audio. The bandwidth used to carry
Page 2
an FM signal carrying our 15kHz of audio is dramatically greater than for AM, because the maximum deviation of the carrier to either side of its normal frequency is proportional to the maximum amplitude of the audio being transmitted, so the limitation on radio bandwidth is imposed not by the audio frequency range but by its dynamic range. For good fidelity of reproduction, dynamic range Is an equally important factor to bandwidth, and our FM system will need something like 300kHz of radio bandwidth to transmit our 15kHz audio signals, or equivalent to nearly one third of the Medium Waveband. To use FM for good quality broadcasting it is therefore necessary to transmit at frequencies high enough to give enough bandwidth for each channel, hence VHF. Why, then, is FM used? Well, it has many inherent advantages for transmission of high quality music signals. Most interference and static tends to be AM by nature, and so an FM receiver can be made to reject this unwanted AM, and be relatively interference-free. The FM transmitter runs at constant power, and can be designed to work more efficiently. It is possible to design an FM receiver which detects if it is off-tune, and applies correction automatically to keep locked to the station being received. This is called Automatic Frequency Control (AFC). Also F receivers exhibit a phenomenon called capture effect. If two stations transmit on closely adjacent frequencies, instead of the receiver detecting both together it will be captured by the stronger signal, allowing clean reception. The ration between the strengths of the two signals need not be very great for this effect to work, and with the added benefit that VHS signals travel only short distances (the line of sight, more or less) this allows many stations to share the same channels without interfering with one another. The most important benefit of FM for Hi-Fi users is that of greatly improved Signal-To-Noise ratio which can be obtained. Again, without getting too deeply into the technicalities, to transmit information (and speech or music are a form of information) there is a possible trade-off between three parameters, being rate of information transfer, signal-to-noise, and transmission bandwidth. In the case of broadcast radio, the rate of information relates to the received audio bandwidth – the higher the audio frequency we wish to receive, the faster must the modulation take place at the transmitter. To achieve this fast rate of information transfer with FM we have to use a great chunk of bandwidth, anyway which means that we can achieve a great benefit in improvement of signal-to-noise performance. With AM, the weaker the received signal, the weaker also is the recovered audio – eventually the signals just fade away into nothingness. With FM, however, the recovered audio is independent (to a point) of the received carrier strength. What happens is that the audio gets noisier with weak signals, eventually disappearing into the noise. An AM receiver receiving no signals is silent. An FM set under the same conditions produces nothing but (lots of) noise. Therefore if we make sure that the signal reaching our FM tuner is as big as possible, then we will ensure that we are receiving as noise-free (and interference-free) a signal as possible, and therefore obtaining the Hi-est possible Fi. That is why a good aerial system is vital to good Hi-Fi FM reception. The importance is greatly increased by Stereo. Returning to our simple information theory for a moment, you can probably see that a stereo signal must contain more information than a mono signal of the same strength. In fact probably twice as much, since there are now two different signals where before there was only one. Since they are occupying the same bit of transmission bandwidth as before, and we are now passing information through it at a faster rate, something in our trade-off must get worse, and it does. In return for our increased information we lose signal-to-noise performance – the recovered audio gets noisier. In fact our surmise that two channels in the space of one will mean a factor of two worsening in noise performance is wildly wrong. Because of the need to make stereo signals compatible with (receivable n) mono receivers, the extra information to transmit stereo is sent in a clever way, modulated onto a sub-carrier above the 15kHz of mono audio. The combination of this, plus the fact that the mathematics of stereo versus bandwidth are somewhat more complicated than our surmising would indicate, actually makes for a dramatic increase in noise, of about 20dB or a factor of 10. In other words, to receive a stereo version of a mono signal requires ten times more signal at the aerial socket of the tuner to get the same audible noise level. For stereo reception a good aerial is not a luxury, it is an essential. Since we have designed the T40 to appeal to those who do not have unlimited resources to spend on their Hi-Fi, but nevertheless enjoy listening to the highest quality sound possible, we have incorporated several unusual features to minimise the effects of weak signals. Even so, you will greatly improve your listening pleasure if you have a good aerial to pull in the signals. Your dealer can advise you on what is necessary for your location, since VHF reception is variable from place to place. There are also specialist companies who are experts in aerial installation, and will advise and estimate fairly on your particular needs. In general if you live within a few Kms of the transmitters then a simple indoor dipole will be fine. Out to about 25Km a 3 or 4-element loft aerial will also be perfectly adequate. Beyond this range it is impossible to generalise. If you live on high ground, with nothing much between you and the transmitter, then an indoor aerial can give good results from 80Kms away. Conversely a gasometer or similar large steel structure can completely mask a transmitter only 3Kms away. If you live near an airport, or under the path of a busy air-lane then you may experience aircraft flutter which is a rapid fluctuation in signal strength due to reflections of the radio signals from aircraft, and sounds like a fluttering noise. In severe cases you may see the stereo indicator flashing as the signal varies. It may be possible to point your aerial at a different transmitter in another direction to overcome this problem, but if there is only one source
