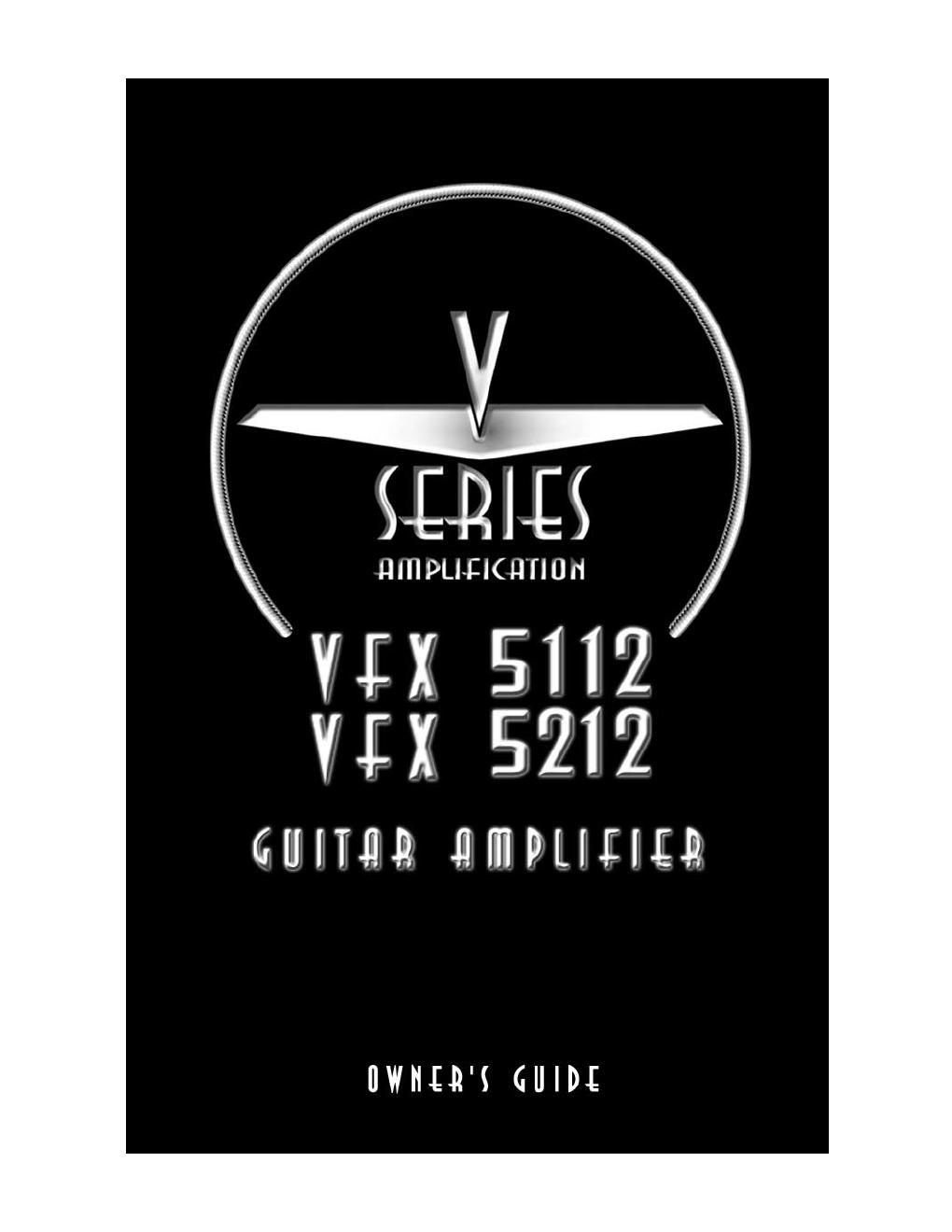

Crate VFX 5212 manual en
This is the 6 pages manual for crate VFX 5212 manual en.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from crate VFX 5212 manual en (Ocr-read)
Page 1
Channel Select Channel A Channel B MID TREBLE GAIN BASS MID TREBLE VOLUME INPUT 0 10 0 10 0 10 0 10 0 10 0 10 0 10 VFX 1 2 3 4 5 7 8 9 6 IMPORTANT SAFETY INSTRUCTIONS -READ, FOLLOW, HEED, AND KEEP ALL INSTRUCTIONS AND WARNINGS. -DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS. -DO NOT USE THIS APPARATUS NEAR SPLASHING, FALLING, SPRAYING, OR STANDING LIQUIDS. -CLEAN ONLY WITH LINT-FREE DAMP CLOTH AND DO NOT USE CLEANING AGENTS. -ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES AND COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE APPARATUS. -PROTECT THE POWER CORD FROM DAMAGE DUE TO BEING WALKED ON, PINCHED, OR STRAINED. -UNPLUG THE APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME. -ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE OPERA- TION AND TO AVOID INJURY. -THIS APPARATUS DOES NOT OPERATE NORMALLY AND REQUIRES SERVICE WITH ANY PHYSICAL DAMAGE FROM IMPACT OR ANY EXPOSURE TO MOISTURE. -SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL. -OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR PRO- TECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOIS- TURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. "IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL" ES NECESARIO QUE EL USUARIO SE REFIERA AL MANUAL DE INSTRUCCIONES. "REFERREZ-VOUS AU MANUAL D'UTILISATION" EXPLANATION OF GRAPHICAL SYMBOLS: EXPLICACION DE SIMBOLOS GRAFICOS: EXPLICATION DES SYMBÔLES GRAPHIQUES: "DANGEROUS VOLTAGE" VOLTAJE PELIGROSO "DANGER HAUTE TENSION" == PRECAUCIONRIESGO DE CORRIENTAZO NO ABRA ADVERTENCIA: REDUCIR EL RIESGO DE FUEGO O CHOQUE ELÉCTRI- CO, NO LE EXPONE DE ESTE APARATO A LLUVIA O HUMEDAD. PARA DISMINUOIR EL RIESGO DE CORRIENTAZO. NO ABRA LA CUBIERTA. NO HAY PIEZAS ADENTRO QUE EL USARIO PUEDO REPARAR DEJE TODO MANTENIMIENTO A LOS TECHNICOS CALIFICADOS. ATTENTIONRISQUE D'ELECTROCUTION NE PAS OUVRIR ATTENTION: POUR REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE. Declaration Of Conformity #35, Effective 01-01-2001 Manufacturers Name:SLM Electronics Production Facility:11880 Borman Drive, St. Louis, MO 63146, USA Production Facility:700 Hwy 202 W, Yellville, AR 72687, USA Shipping Facility:1400 Ferguson Ave., St. Louis, MO 63133, USA Office Facility:1400 Ferguson Ave., St. Louis, MO 63133, USA Product Type:Audio Amplifier Complies with Standards: LVD:92/31/EEC, 93/68/EEC, & 73/23/EWG Safety:EN60065 EMC:EN55013, EN55020, EN55022, EN61000-3-2, & EN61000-3-3 Supplementary information provided by: SLM Electronics - R & D Engineering 1901 Congressional Drive, St Louis, MO 63146, USA Tel.: 314-569-0141, Fax: 314-569-0175 VFX 5112/5212 Guitar Amplifier
Page 2
1. Input: Connect your instrument here by means of a shielded signal cable. 2.. Volume:Use this control to adjust the output level of Channel A. 3. Treble:Use this control to adjust the output level of the high fre- quencies for Channel A. This con- trol provides an adjustment range of 30dB at 10kHz. 4. Mid:Use this control to adjust the output level of the middle fre- quencies for Channel A. This con- trol provides an adjustment range of 6dB at 600Hz. 5. Bass:Use this control to adjust the output level of the low frequen- cies for Channel A. This control provides an adjustment range of 30dB at 80Hz. 6. Channel Select:This switch, when depressed, activates Channel B. Channel A is active when the switch is in the out posi- tion. 7. Gain:Use this control to adjust the gain for Channel B. With the control towards the counter clock- wise position, the gain is low and very little distortion is present. As you rotate the control clockwise the gain increases, producing more overdrive distortion and a higher output volume level.8. Treble:Use this control to adjust the output level of the high fre- quencies for Channel B. This con- trol provides an adjustment range of 10dB at 4kHz. 9. Mid:Use this control to adjust the output level of the middle fre- quencies for Channel B. This con- trol provides an adjustment range of 10dB at 1kHz. 10. Bass:Use this control to adjust the output level of the low frequen- cies for Channel B. This control provides an adjustment range of 12dB at 100Hz. 11. Level:Use this control to adjust the output level of Channel B. 12. DSP Mode:Use this control to select which of the following digital effects to apply to the signal. BYPASS no effect SMALL REV small room reverb MED REV medium room reverb LARGE REV large hall reverb SLAPBACK short slapback echo DELAY 1 short delay w/regen DELAY/REV 1 short delay w/reverb DELAY 2 long delay w/regen DELAY/REV 2 long delay w/reverb VIBRATO SLOW slow smooth vibrato VIBRATO FAST fast vibrato/tremolo CHORUS medium chorus CHO/REV medium chorus w/reverb CHO/REV/DELAY med cho w/reverb/delay SLAP CHORUS slapback echo w/chorus T-WAH touch-sensitive wah-wah 13. DSP Level:Use this control to adjust the level of the DSP effect. With the control rotated fully count- er clockwise, no effect will be audi- ble. As the control is rotated clock- wise the amount of the effect is increased. 14. Presence: Use this control to adjust the overall brightness and punch of the output signal. 15. Lamp:This lamp illuminates when the amplifier is turned on. 16. On/Standby Switch: Use this switch to activate the amplifier after the On/Off Switch (#17) is turned on. Always turn this switch OFF first and ON last! Turn the On/Off Switch (#17) on at least 30 seconds before turning on the Standby switch. During short breaks you should turn this switch off and leave the On/Off Switch on. This will help prolong the life of the amplifiers tubes. 17. On/Off Switch:Use this switch to turn the amplifier on and off. Always turn this switch ON first and OFF last! Turn the Standby switch (#16) on at least 30 sec- onds after turning on the On/Off Switch. On Off On Standby Master Presence Mode Level Level BASS DSP 0 10 0 10 0 10 0 10 VFXVFXVFX SLAP BACK CHORUS DELAY 1 DELAY 2DELAY- REV 1 DELAY- REV 2 VIBRATO FA S T VIBRATO SLOWBYPASS T- WA H CHO- REVSLAP CHORUS CHO-REV- DELAYSMALL REV MED REV LARGE REV 10 11 12 13 14 15 16 17 VFX 5112/5212 Guitar Amplifier The Front Panel:
