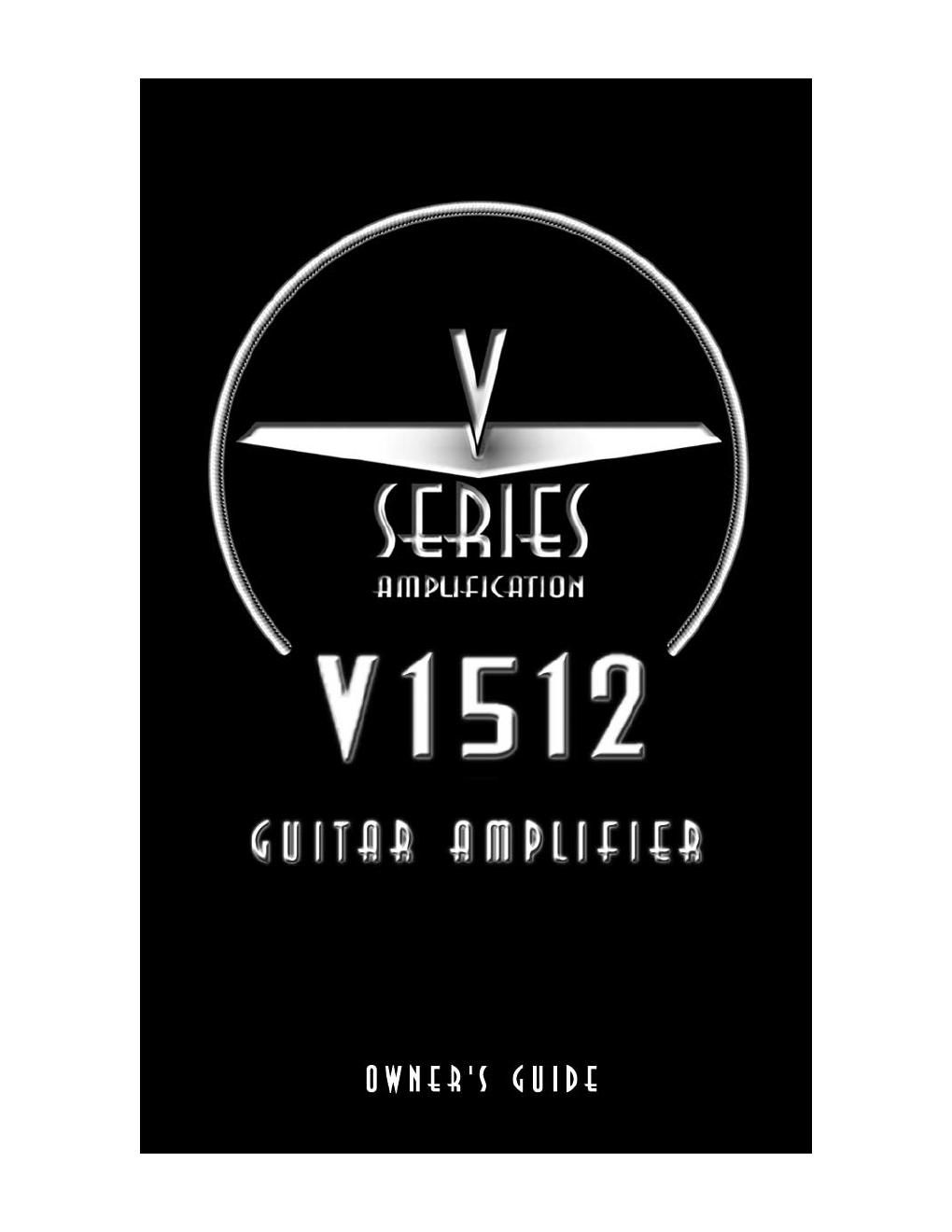

Crate V1512 manual en
This is the 4 pages manual for crate V1512 manual en.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from crate V1512 manual en (Ocr-read)
Page 1
IMPORTANT SAFETY INSTRUCTIONS -READ, FOLLOW, HEED, AND KEEP ALL INSTRUCTIONS AND WARNINGS. -DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS. -DO NOT USE THIS APPARATUS NEAR SPLASHING, FALLING, SPRAYING, OR STANDING LIQUIDS. -CLEAN ONLY WITH LINT-FREE DAMP CLOTH AND DO NOT USE CLEANING AGENTS. -ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES AND COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE APPARATUS. -PROTECT THE POWER CORD FROM DAMAGE DUE TO BEING WALKED ON, PINCHED, OR STRAINED. -UNPLUG THE APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME. -ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE OPERA- TION AND TO AVOID INJURY. -THIS APPARATUS DOES NOT OPERATE NORMALLY AND REQUIRES SERVICE WITH ANY PHYSICAL DAMAGE FROM IMPACT OR ANY EXPOSURE TO MOISTURE. -SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL. -OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR PRO- TECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOIS- TURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. "IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL" ES NECESARIO QUE EL USUARIO SE REFIERA AL MANUAL DE INSTRUCCIONES. "REFERREZ-VOUS AU MANUAL D'UTILISATION" EXPLANATION OF GRAPHICAL SYMBOLS: EXPLICACION DE SIMBOLOS GRAFICOS: EXPLICATION DES SYMBÔLES GRAPHIQUES: "DANGEROUS VOLTAGE" VOLTAJE PELIGROSO "DANGER HAUTE TENSION" == PRECAUCIONRIESGO DE CORRIENTAZO NO ABRA ADVERTENCIA: REDUCIR EL RIESGO DE FUEGO O CHOQUE ELÉCTRI- CO, NO LE EXPONE DE ESTE APARATO A LLUVIA O HUMEDAD. PARA DISMINUOIR EL RIESGO DE CORRIENTAZO. NO ABRA LA CUBIERTA. NO HAY PIEZAS ADENTRO QUE EL USARIO PUEDO REPARAR DEJE TODO MANTENIMIENTO A LOS TECHNICOS CALIFICADOS. ATTENTIONRISQUE D'ELECTROCUTION NE PAS OUVRIR ATTENTION: POUR REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE. Declaration Of Conformity #35, Effective 01-01-2001 Manufacturers Name:SLM Electronics Production Facility:11880 Borman Drive, St. Louis, MO 63146, USA Production Facility:700 Hwy 202 W, Yellville, AR 72687, USA Shipping Facility:1400 Ferguson Ave., St. Louis, MO 63133, USA Office Facility:1400 Ferguson Ave., St. Louis, MO 63133, USA Product Type:Audio Amplifier Complies with Standards: LVD:92/31/EEC, 93/68/EEC, & 73/23/EWG Safety:EN60065 EMC:EN55013, EN55020, EN55022, EN61000-3-2, & EN61000-3-3 Supplementary information provided by your local Sales & Services Office or: SLM Electronics - R & D Engineering 1901 Congressional Drive, St Louis, MO 63146, USA Tel.: 314-569-0141, Fax: 314-569-0175 V1512 Guitar Amplifier
Page 2
GAIN TREBLE MID BASS LEVEL REVERB INPUT BOOSTON OFF 0 100 100 100 100 10010 1 2 3 4 5 7 8 9 10 6 1. Input: Connect your instrument here by means of a shielded signal cable. 2. Gain:Use this control to adjust the input gain. With the control towards the counter clockwise position, the gain is low and very little distortion is present. As you rotate the control clockwise the gain increases, produc- ing more overdrive distortion and a higher output volume level. 3. Boost:This switch, when depressed, increases the output of the frequencies below 500Hz, giving the bottom end more punch. 4. Treble:Use this control to adjust the output level of the high frequen- cies. This control provides 8dB of cut or boost at 10kHz. 5. Mid:Use this control to adjust the output level of the middle frequen- cies. This control provides 9dB of cut or boost at 700Hz. 6. Bass:Use this control to adjust the output level of the low frequencies. This control provides 12dB of cut or boost at 60Hz. 7. Level:Use this control to adjust the output level of the amplifier.8. Reverb:Use this control to adjust the amount of reverberation applied to the signal. With the control fully counter clockwise no reverb is applied. As you rotate the control clockwise the reverb increases. 9. Lamp:This lamp illuminates when the amplifier is turned on. 10. On/Off Switch:Use this switch to turn the amplifier on and off. 11. AC Line Cord (rear panel, not shown):The grounded power cord should only be plugged into a ground- ed power outlet that meets all appli- cable electrical codes and is compat- ible with the voltage, power, and fre- quency requirements stated on the rear panel. Do not attempt to defeat the safety ground connection. 12. Speaker Connector (rear panel, not shown):The V1512 is shipped with a 1/4 cable connected from the chassis to the internal speaker. To connect the amplifier to an external speaker cabinet, disconnect the 1/4 plug from the amplifier and use the jack to connect the external cabinet to the amplifier by means of a heavy duty speaker cable terminated with 1/4 plugs. The minimum impedance for the external speaker is 16 ohms. The Front Panel: V1512 Guitar Amplifier
