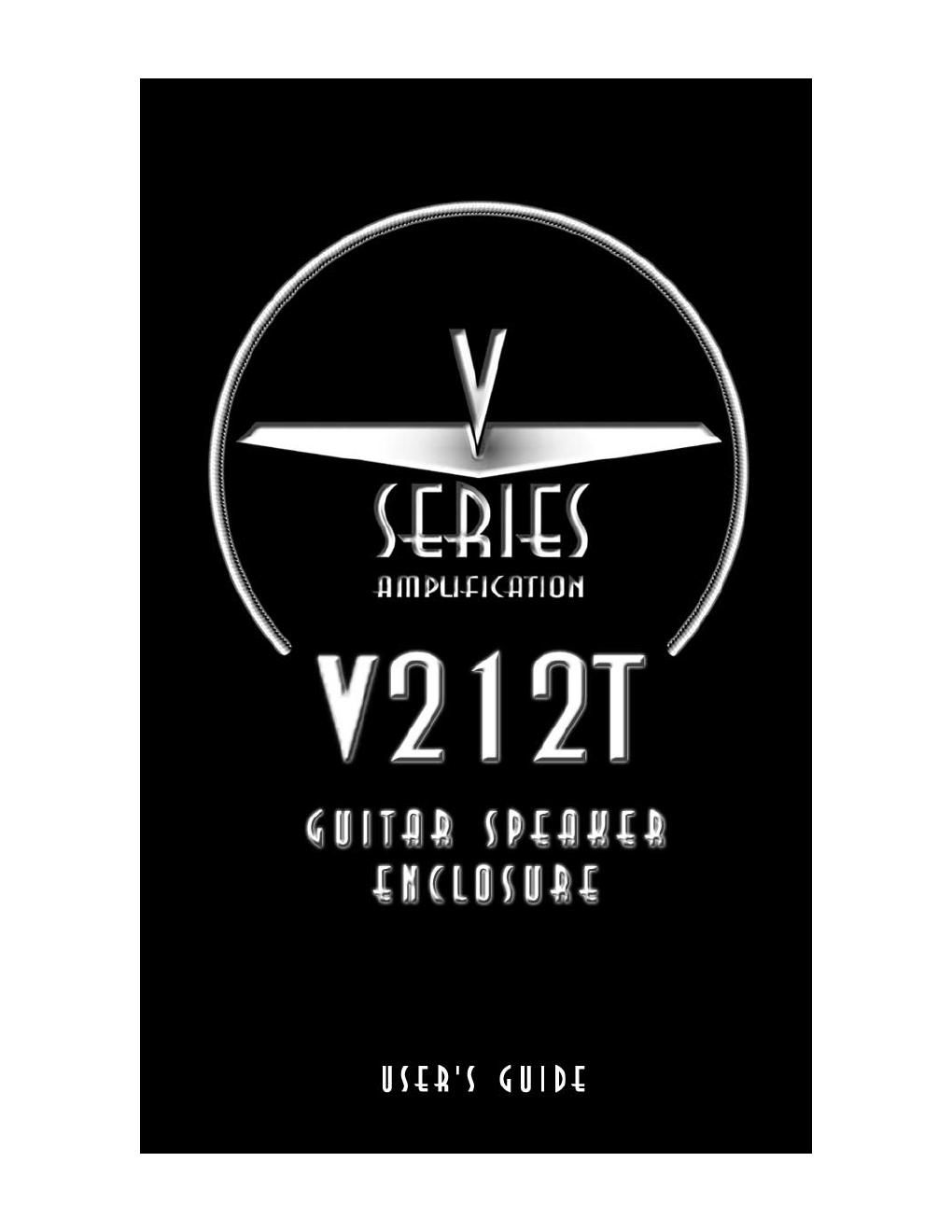

Page 1
V212T GUITAR SPEAKER ENCLOSURE IMPORTANT SAFETY INSTRUCTIONS: 1.Read, follow and keep these instructions. Heed all warnings. 2.This speaker is capable of producing high sound pressure levels that may cause permanent hearing damage. User caution is advised and ear protection is recom- mended during use. 3.This speaker is designed for use on a sturdy, level surface. Whenever stacking speaker cabinets, do not stack more than two high. Only speaker cabinets which are equipped with caster cups on their top surfaces are to be used underneath a cabinet which is equipped with casters. 4.Speaker cables are a tripping hazard and must be routed out of traffic areas and away from any possible accidental contact. 5.Do not expose this speaker to rain or moisture. Do not place liquid filled contain- ers on this speaker. Clean only with a damp cloth. 6.Repair or service of this speaker should be performed only by qualified personnel. Your V-Series V212T 2x12 Guitar Speaker Enclosure is built from the finest materials and components available. This cabinet is loaded with two Tone Tubby speakers and comes standard with casters, steel handles, heavy duty metal tilt back legs, Switchcraft metal jacks on a metal input plate, and hardware for piggy back mounting of the V30H V-Series guitar amplifier head. The tilt back stands allow the cabinet to slant back at a 40 oangle to improve your ability to hear yourself, especially on smaller stages. Heavy duty fastening posts on the top of the enclosure are provided for secure locking of the V30H amp head, resulting in a piggy back combo amp that can actually be used in the tilt back position. The V212T also makes an excellent extension cabinet for any V-Series guitar amplifier with a minimum load of 8 ohms.
Page 2
V212T GUITAR SPEAKER ENCLOSURE The tilt back legs lock flat against the cabinet when not in use - tighten the securing fasteners completely to eliminate rattling. Crates V30H amp head is designed to piggy back mount onto the V212T enclosure. The V30H has slide-out mounting hardware which lock onto the posts on the top of the V212T. Loosen the knobs on the posts, slide the amp in place and lock down the knobs. The piggy-backed amp can be rolled around on its casters by the amp heads handle, but do nottry to pick the combo up by the amp head or its handle. The casters are to be removed before using the cabinet in the tilt back mode. Swing each tilt back leg into position and secure all hardware before leaning the cabinet back. Do not allow the unit to fall back on its own, rather, lower it into position.(The cabinet should not be tilted back on slick or smooth surfaces.)
