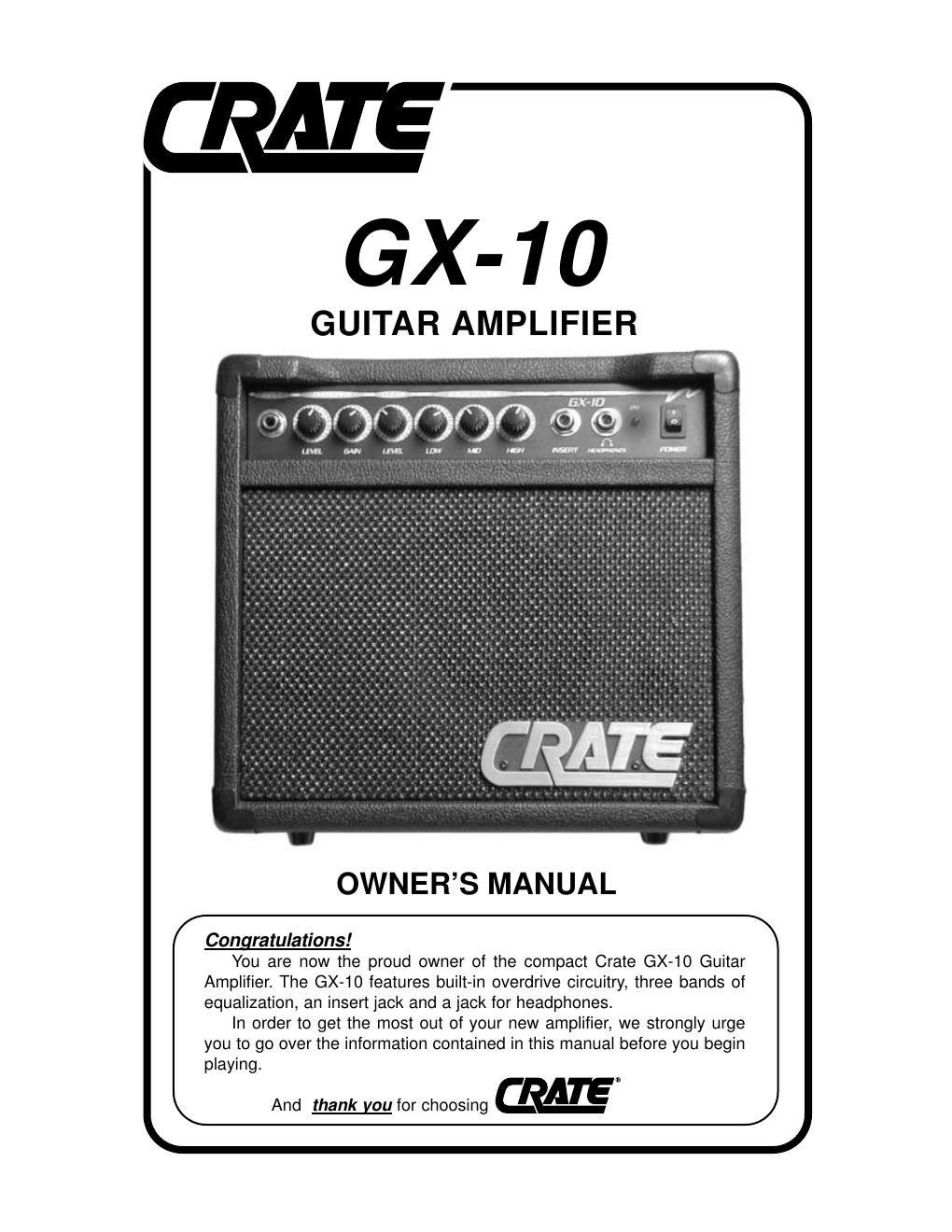

Crate gx 10 manual en
This is the 4 pages manual for crate gx 10 manual en.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from crate gx 10 manual en (Ocr-read)
Page 1
TIP RING SLEEVERETURN SEND GROUND Stereo-to-mono Y-cord: to Insert jackto Insert jack (STP201, 3' STP202, 6' STP203, 9')(YPP117) (1/4"-TO-1/4" MONO CABLES) to effect "OUT" jackto effect "IN" jack External Effect TIP RING SLEEVE Y-adapter and 2 cables: External Effect RING RING TIP TIP to effect "OUT" jack to effect "IN" jack Connecting to the Insert jack: The Insert jack (#8) lets you patch external effects into the amplifier prior to its power amp stage. Use Crates STP201, STP202 or STP203 stereo-to-mono Y-cord or an adapter such as Crates YPP117 and 2 1/4 mono signal cables to connect to the effect as shown: GX-10 Guitar Amplifier IMPORTANT SAFETY INSTRUCTIONS -READ, FOLLOW, HEED, AND KEEP ALL INSTRUCTIONS AND WARNINGS. -DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS. -DO NOT USE THIS APPARATUS NEAR SPLASHING, FALLING, SPRAYING, OR STANDING LIQUIDS. -CLEAN ONLY WITH LINT-FREE DAMP CLOTH AND DO NOT USE CLEANING AGENTS. -ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES AND COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE APPARATUS. -PROTECT THE POWER CORD FROM DAMAGE DUE TO BEING WALKED ON, PINCHED, OR STRAINED. -UNPLUG THE APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME. -ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE OPERA- TION AND TO AVOID INJURY. -THIS APPARATUS DOES NOT OPERATE NORMALLY AND REQUIRES SERVICE WITH ANY PHYSICAL DAMAGE FROM IMPACT OR ANY EXPOSURE TO MOISTURE. -SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL. -OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR PRO- TECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOIS- TURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. "IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL" ES NECESARIO QUE EL USUARIO SE REFIERA AL MANUAL DE INSTRUCCIONES. "REFERREZ-VOUS AU MANUAL D'UTILISATION" EXPLANATION OF GRAPHICAL SYMBOLS: EXPLICACION DE SIMBOLOS GRAFICOS: EXPLICATION DES SYMBÔLES GRAPHIQUES: "DANGEROUS VOLTAGE" VOLTAJE PELIGROSO "DANGER HAUTE TENSION" == PRECAUCIONRIESGO DE CORRIENTAZO NO ABRA PRECAUCION: PARA REDUCIR EL RIESGO DE INCENDIOS O DESCARGAS ELECTRICAS, NO PERMITA QUE ESTE APARATO QUEDE EXPUESTO A LA LLUVIA O LA HUMEDAD. PARA DISMINUOIR EL RIESGO DE CORRIENTAZO. NO ABRA LA CUBIERTA. NO HAY PIEZAS ADENTRO QUE EL USARIO PUEDO REPARAR DEJE TODO MANTENIMIENTO A LOS TECHNICOS CALIFICADOS. ATTENTIONRISQUE D'ELECTROCUTION NE PAS OUVRIR ATTENTION: PROTÉGEZ CET APPAREIL DE LA PLUIE ET DE L'HUMIDITÉ AFIN D'ÉVITER TOUT RISQUE D'INCENDIE OU D'ÉLECTROCUTION. POUR REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE. Getting Your Sound: The Overdrive Level and Gain and the Clean Level controls (#2, 3 & 4) can be used together to obtain a wide variety of sounds. The following guidelines will help you get the sound youre looking for. Clean Sounds:Keep the Gain control off (the Overdrive Level control will be inactive). Use the Clean Level control to set the output level. Crunch Sounds: Set the Overdrive Level control around 4, turn the Gain on and set it to 2. Use the Clean Level control to set the out- put level. (A lower setting of the Clean Level control is needed as the Overdrive Level and Gain controls are increased.) Rhythm Distortion:Set the Overdrive Level control around 4, Gain at or near 10. Use the Clean Level control to set the output level. Lead Distortion:Set the Overdrive Level and Gain controls at or near 10. Use the Clean Level control to set the output level.
Page 2
INPUT CLEAN OVERDRIVE EQUALIZATION LEVEL LOW LEVEL GAIN MID HIGH INSERT HEADPHONES POWER ON GX-10 1 4 5 6 7 9 10 11 8 2 3 1: INPUT:Connect your guitar here by means of a shielded instrument cable. 2: OVERDRIVE LEVEL:Use this control to increase the output volume and add crunch to your sound. This control is only active when the Overdrive Gain control (#3) is turned on. For more information please see the Getting Your Sound section on the previous page. 3: OVERDRIVE GAIN:Use this control to along with the Overdrive Level knob (#2) to add dis- tortion to your sound. The Overdrive Level control is only active when the Gain control is turned on. For more information please see the Getting Your Sound section on the previous page. 4: CLEAN LEVEL:Use this control to adjust the overall output level of the amp. For more information please see the Getting Your Sound section on the previous page. 5: LOW:Use this control to adjust the low frequency output level. Rotating the control counter clockwise reduces the low frequency output, rotating the control clockwise increases it. 6: MID:Use this control to adjust the midrange frequency output level. Rotating the control counter clockwise reduces the midrange frequency output, rotating the control clockwise increases it. 7: HIGH: Use this control to adjust the high frequency output level. Rotating the control count- er clockwise reduces the high frequency output, rotating the control clockwise increases it. 8: INSERT:Use this jack to connect an external effects device to the amplifier. Use a stereo 1/4 male Y-cord: ring = send, tip = return, sleeve = ground. Send goes to the effects input; return comes from its output. (See the illustration on the previous page for more information.) 9: HEADPHONES:Use this jack to connect a pair of stereo headphones for private listening. The internal speaker is disconnected when this jack is used. 10: ON LED:This LED illuminates when the amplifier is on. 11: POWER SWITCH: Use this switch to turn the amplifier on (top of the switch depressed) and off (bottom of the switch depressed). 12: AC LINE IN: (Rear panel, not shown) The grounded power cord should only be plugged into a grounded outlet that meets all applicable electrical codes and is compatible with the volt- age, power, and frequency requirements stated on the rear label. DO NOT attempt to defeat the safety ground connection. GX-10 Guitar Amplifier
