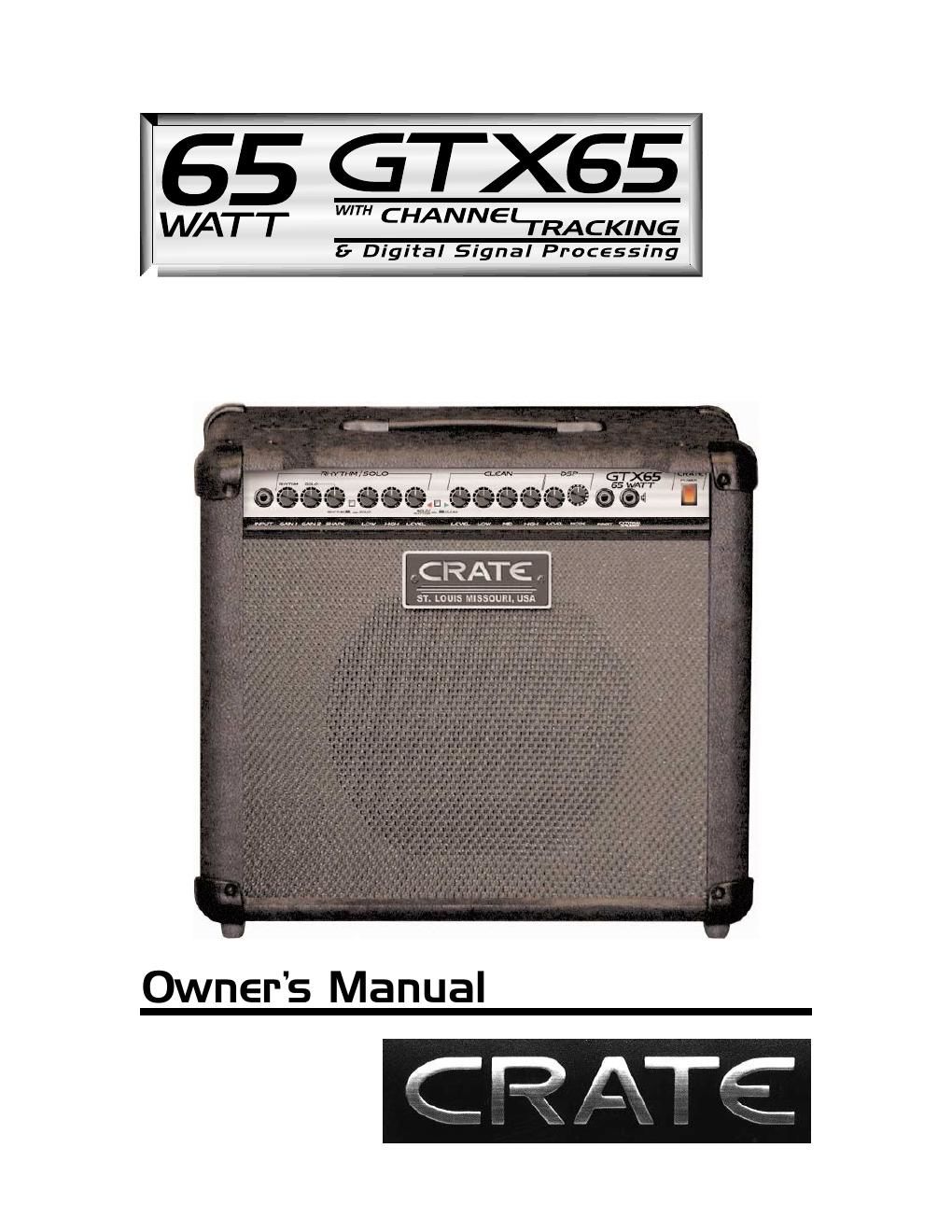

Page 1
GTX65 Guitar Amplifier with DSP & C hannel T racking Congratulations! You are now the proud owner of the Crate GTX65 amplifier. This rugged amplifier combines out- standing features with serious clean and distorted sounds. An easy to operate DSP section lets you dial in a variety of digital effects including reverbs, delays, octave and wah-wahs – with a separate level control. Crates unique Channel Trackingfeature means that as you switch between channels and gains, the DSP automatically tracks the changes - your DSP settings for each channel are stored and automatically recalled! The supplied three-button footswitch allows you to select channels, change the overdrive gain, and turn the DSP on and off by remote control. Like all Crate products, your GTX65 is designed by musicians, and built using only the best components. Extensive testing confirms that this amplifier is the absolute best it can be. In order to get the most out of your new amplifier, we strongly urge you to read the information contained in this manual before you begin playing. And thank you for choosing CRATE. TABLE OF CONTENTS: The Digital Signal Processor . . . . . . . . . . . . . . . . . . . . .3 Channel Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 The Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4, 5 Suggested Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . .7 Technical Specifications . . . . . . . . . . . . . . . . .back cover IMPORTANT SAFETY INSTRUCTIONS -READ, FOLLOW, HEED, AND KEEP ALL INSTRUCTIONS AND WARNINGS. -DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS. -DO NOT USE THIS APPARATUS NEAR SPLASHING, FALLING, SPRAYING, OR STANDING LIQUIDS. -CLEAN ONLY WITH LINT-FREE DAMP CLOTH AND DO NOT USE CLEANING AGENTS. -ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES AND COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE APPARATUS. -PROTECT THE POWER CORD FROM DAMAGE DUE TO BEING WALKED ON, PINCHED, OR STRAINED. -UNPLUG THE APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME. -ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE OPERA- TION AND TO AVOID INJURY. -THIS APPARATUS DOES NOT OPERATE NORMALLY AND REQUIRES SERVICE WITH ANY PHYSICAL DAMAGE FROM IMPACT OR ANY EXPOSURE TO MOISTURE. -SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL. -OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR PRO- TECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOIS- TURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. "IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL" ES NECESARIO QUE EL USUARIO SE REFIERA AL MANUAL DE INSTRUCCIONES. "REFERREZ-VOUS AU MANUAL D'UTILISATION" EXPLANATION OF GRAPHICAL SYMBOLS: EXPLICACION DE SIMBOLOS GRAFICOS: EXPLICATION DES SYMBÔLES GRAPHIQUES: "DANGEROUS VOLTAGE" VOLTAJE PELIGROSO "DANGER HAUTE TENSION" == PRECAUCIONRIESGO DE CORRIENTAZO NO ABRA ADVERTENCIA: REDUCIR EL RIESGO DE FUEGO O CHOQUE ELÉCTRI- CO, NO LE EXPONE DE ESTE APARATO A LLUVIA O HUMEDAD. PARA DISMINUOIR EL RIESGO DE CORRIENTAZO. NO ABRA LA CUBIERTA. NO HAY PIEZAS ADENTRO QUE EL USARIO PUEDO REPARAR DEJE TODO MANTENIMIENTO A LOS TECHNICOS CALIFICADOS. ATTENTIONRISQUE D'ELECTROCUTION NE PAS OUVRIR ATTENTION: POUR REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE.
Page 2
GTX65 Guitar Amplifier with DSP & C hannel T racking The Digital Signal Processor: Crates Digital Signal Processing offers 16 exciting digital effects, accessible through the DSP Mode control. The effects are described below. 3 Channel T racking: Your Crate GTX65 gives you the power of Channel Tracking!Once you select a DSP setting for each channel, Channel Tracking recalls those DSP settings automatically – without changing the DSP controls! For example: -Select the Clean channel. Set the DSP Mode to 8 (slow deep flange w/reverb) -Select the Rhythm/Solo channel, Gain 1. Set the DSP Mode to 10 (slow tremolo chorus w/reverb) (the setting for the Clean channel is now saved to memory) -Select the Rhythm/Solo channel, Gain 2. Set the DSP Mode to 14 (touch wah) (the setting for the Rhythm/Solo channel, Gain 1 is now saved to memory) - Reselect the Clean channel (the setting for the Rhythm/Solo channel, Gain 2 is now saved to memory) Now when you go back to the Clean channel, even though the DSP Mode was last set to 14 (touch wah), Channel Tracking automatically recalls the last setting for the Clean channel – in this example, 8 (slow flange). Change to the Rhythm/Solo channel, Gain 1, and 10 (chorus) is recalled. Change to the Rhythm/Solo channel, Gain 2, and 14 (touch wah) is recalled. Thats the power of Channel Tracking! (Note: Even when the power is turned off, Channel Trackingstill retains the settings – until youchange them!) Use the DSP Mode control to access any of the 16 built-in digital effects. Use the Level control to mix in the desired amount of each effect. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 small room reverb medium room reverb large room reverb concert hall reverb short slapback w/small room reverb medium delay w/plate reverb long delay w/large room reverb slow deep flange w/reverb flange w/reverb & delay slow tremolo chorus w/reverb chorus w/reverb & delay rotating speaker octave down touch wah inverse wah doubler
