Crate gtx 15 manual en
This is the 4 pages manual for crate gtx 15 manual en.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from crate gtx 15 manual en (Ocr-read)

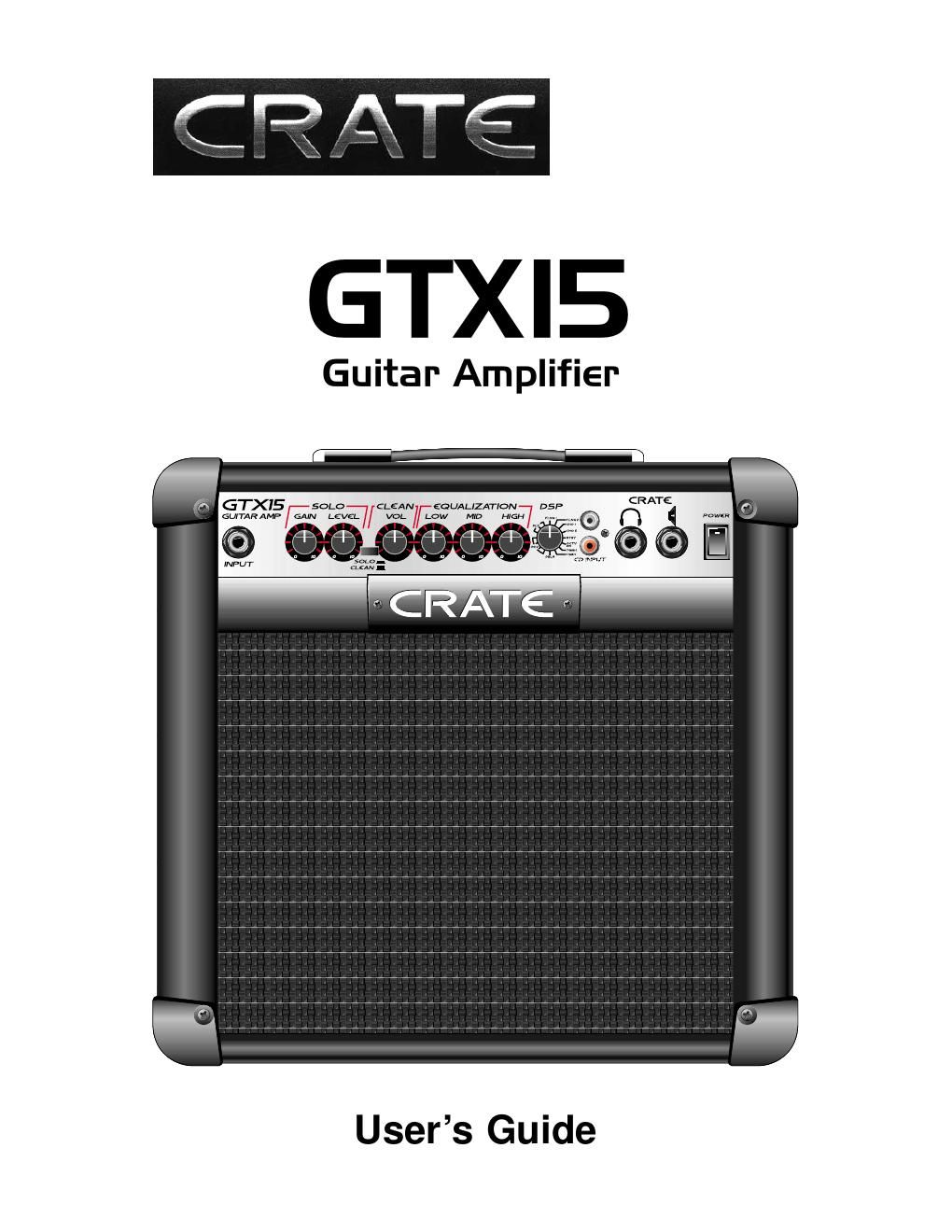

Page 1
GTX15 Guitar Amplifier IMPORTANT SAFETY INSTRUCTIONS -READ, FOLLOW, HEED, AND KEEP ALL INSTRUCTIONS AND WARNINGS. -DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS. FOR PROPER OPERATION, THIS UNIT REQUIRES 3 (75mm) OF WELL VENTILATED SPACE AROUND HEATSINKS AND OTHER AIR FLOW PROVISIONS IN THE CABINET. -DO NOT USE THIS APPARATUS NEAR SPLASHING, FALLING, SPRAYING, OR STANDING LIQUIDS. -CLEAN ONLY WITH LINT-FREE DAMP CLOTH AND DO NOT USE CLEANING AGENTS. -ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES AND COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE APPARATUS. -PROTECT THE POWER CORD FROM DAMAGE DUE TO BEING WALKED ON, PINCHED, OR STRAINED. -UNPLUG THE APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME. -ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE OPERA- TION AND TO AVOID INJURY. -THIS APPARATUS DOES NOT OPERATE NORMALLY AND REQUIRES SERVICE WITH ANY PHYSICAL DAMAGE FROM IMPACT OR ANY EXPOSURE TO MOISTURE. -SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL. -OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR PRO- TECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOIS- TURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. "IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL" ES NECESARIO QUE EL USUARIO SE REFIERA AL MANUAL DE INSTRUCCIONES. "REFERREZ-VOUS AU MANUAL D'UTILISATION" EXPLANATION OF GRAPHICAL SYMBOLS: EXPLICACION DE SIMBOLOS GRAFICOS: EXPLICATION DES SYMBÔLES GRAPHIQUES: "DANGEROUS VOLTAGE" VOLTAJE PELIGROSO "DANGER HAUTE TENSION" == PRECAUCIONRIESGO DE CORRIENTAZO NO ABRA PRECAUCION: PARA REDUCIR EL RIESGO DE INCENDIOS O DESCARGAS ELECTRICAS, NO PERMITA QUE ESTE APARATO QUEDE EXPUESTO A LA LLUVIA O LA HUMEDAD. PARA DISMINUOIR EL RIESGO DE CORRIENTAZO. NO ABRA LA CUBIERTA. NO HAY PIEZAS ADENTRO QUE EL USARIO PUEDO REPARAR DEJE TODO MANTENIMIENTO A LOS TECHNICOS CALIFICADOS. ATTENTIONRISQUE D'ELECTROCUTION NE PAS OUVRIR ATTENTION: PROTÉGEZ CET APPAREIL DE LA PLUIE ET DE L'HUMIDITÉ AFIN D'ÉVITER TOUT RISQUE D'INCENDIE OU D'ÉLECTROCUTION. POUR REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE. Congratulations and thank you for choosing the Crate GTX15 Guitar Amplifier. This rugged amplifier combines outstanding features with serious clean and distorted sounds. The on-board DSP control pro- vides 16 superior digital effects. RCA input jacks allow connection of a CD or tape player for playing along with your favorite music, and the Headphones jack lets you practice in private. In order to get the most out of your new amplifier, we strongly urge you to read this guide before you begin playing.
Page 2
GTX15 Guitar Amplifier 1 2 3 4 5 6 7 8 9 10 11 12 13 1: INPUT:Use this jack to connect your guitar to the amplifier by means of a shielded instrument cable. SOLO CHANNEL:A high gain channel giving you sounds from a slight edge to serious overdrive. 2: GAIN:Use this control to adjust the amount of distortion for the Solo channel. 3: LEVEL:Use this control to adjust the output level of the Solo channel. 4: SOLO/CLEAN:Use this switch to select the Solo or Clean channel. With the switch in the out position, the Clean channel is selected. When the switch is depressed, the Solo channel is selected. CLEAN CHANNEL:A normal gain channel designed to give you crystal clear sounds to medi- um distortion. 5: VOL:Use this control to adjust the output level of the Clean channel. 6: LOW:Use this control to adjust the low fre- quency level of the amplifier. 7: MID:Use this control to adjust the midrange fre- quency level of the amplifier. 8: HIGH:Use this control to adjust the high fre- quency level of the amplifier. 9. DSP:Use this control to select one of the 16 built-in digital effects. The effects are discribed in the table to the right. 10: CD INPUT:Use these RCA jacks to connect the output from a CD player or tape deck to the amplifier. The signal at these jacks is combined into a mono signal which is sent to the internal power amp circuit. Use the CD or tape players output level control to adjust the signal for the proper mix with your guitar. 11: HEADPHONES:Use this jack to connect headphones to the amplifier. The internal speaker is disconnected when headphones are used. CAUTION: To avoid possible damage to your hear- ing, do not use headphones for extended periods of time at extremely loud levels. 12: SPEAKER:Use this jack to connect the amplifier to an external speaker. The internal speaker is disconnected when this jack is used. The impedance of the external speaker must be 4 ohms or greater. WARNING: Do not attempt to use headphones in the Speaker jack! Permanent hearing damage could result! 13: POWER:Use this switch to turn the amplifier on (top of the switch depressed) and off (bottom of the switch depressed). The switch illuminates when the amplifier is turned on. 14: POWER CORD (rear panel, not shown): The grounded power cord should only be plugged into a grounded power outlet that meets all appli- cable electrical codes and is compatible with the voltage, power, and frequency requirements stat- ed on the rear panel. Do not attempt to defeat the safety ground connection. The Front Panel: DSP: THE DIGITAL EFFECTS REV 1 small room reverb REV 2 medium room reverb REV 3 small hall reverb REV 4 large hall reverb DLY 1 short delay DLY 2 medium delay DLY 3 long delay FLNG 1 slow shallow flange FLNG 2 fast deep flange CHO 1 slow shallow chorus CHO 2 fast deep chorus RTRY medium-speed rotating speaker OCTV DN adds signal one octave lower T-WAH touch-sensitive wah-wah I-WAH inverse wah-wah
