Crate gt 30
This is the 4 pages manual for crate gt 30.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from crate gt 30 (Ocr-read)

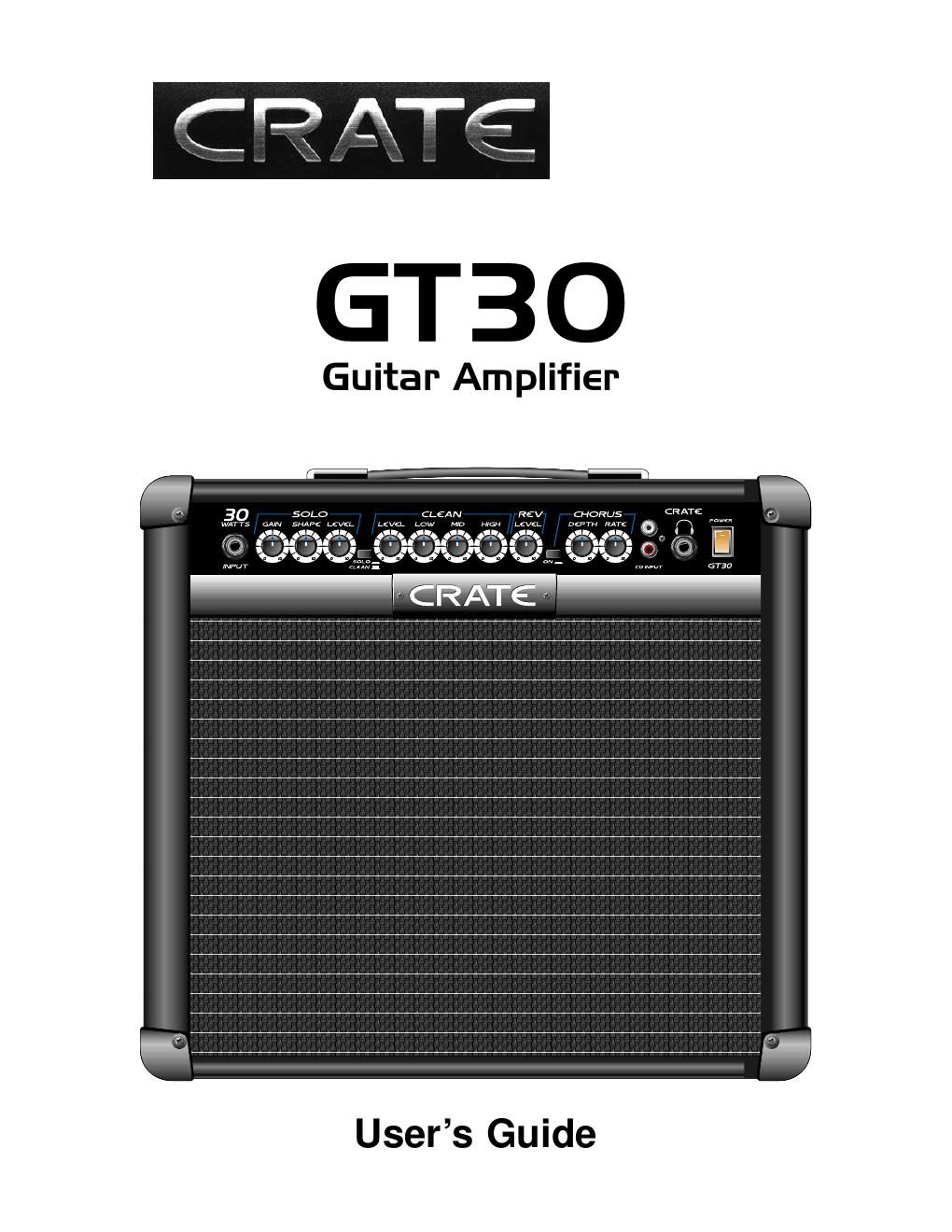

Page 1
GT30 Guitar Amplifier Congratulations and thank you for choosing the Crate GT30 Guitar Amplifier. This rugged amplifier features a Clean channel with a three-band EQ and level control, and a Solo channel with our patented FlexWave technology, Gain, Level and Shape control. A Reverb control and a switchable Chorus with Depth and Rate controls are provided for greater flexibility. RCA input jacks allow connection of a CD or tape player for playing along with your favorite music, and the Headphones jack lets you practice in private. In order to get the most out of your new amplifier, we strongly urge you to read this manual before you begin playing. IMPORTANT SAFETY INSTRUCTIONS -READ, FOLLOW, HEED, AND KEEP ALL INSTRUCTIONS AND WARNINGS. -DO NOT OPERATE NEAR ANY HEAT SOURCE AND DO NOT BLOCK ANY VENTILATION OPENINGS ON THIS APPARATUS. FOR PROPER OPERATION, THIS UNIT REQUIRES 3 (75mm) OF WELL VENTILATED SPACE AROUND HEATSINKS AND OTHER AIR FLOW PROVISIONS IN THE CABINET. -DO NOT USE THIS APPARATUS NEAR SPLASHING, FALLING, SPRAYING, OR STANDING LIQUIDS. -CLEAN ONLY WITH LINT-FREE DAMP CLOTH AND DO NOT USE CLEANING AGENTS. -ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED OUTLET WIRED TO CURRENT ELECTRICAL CODES AND COMPATIBLE WITH VOLTAGE, POWER, AND FREQUENCY REQUIREMENTS STATED ON THE REAR PANEL OF THE APPARATUS. -PROTECT THE POWER CORD FROM DAMAGE DUE TO BEING WALKED ON, PINCHED, OR STRAINED. -UNPLUG THE APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME. -ONLY USE ATTACHMENTS, ACCESSORIES, STANDS, OR BRACKETS SPECIFIED BY THE MANUFACTURER FOR SAFE OPERATION AND TO AVOID INJURY. -WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. -SERVICE MUST BE PERFORMED BY QUALIFIED PERSONNEL. -OUR AMPLIFIERS ARE CAPABLE OF PRODUCING HIGH SOUND PRESSURE LEVELS. CONTINUED EXPOSURE TO HIGH SOUND PRESSURE LEVELS CAN CAUSE PERMANENT HEARING IMPAIRMENT OR LOSS. USER CAUTION IS ADVISED AND EAR PRO- TECTION IS RECOMMENDED IF UNIT IS OPERATED AT HIGH VOLUME. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOIS- TURE. TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. "IT IS NECESSARY FOR THE USER TO REFER TO THE INSTRUCTION MANUAL" ES NECESARIO QUE EL USUARIO SE REFIERA AL MANUAL DE INSTRUCCIONES. "REFERREZ-VOUS AU MANUAL D'UTILISATION" EXPLANATION OF GRAPHICAL SYMBOLS: EXPLICACION DE SIMBOLOS GRAFICOS: EXPLICATION DES SYMBÔLES GRAPHIQUES: "DANGEROUS VOLTAGE" VOLTAJE PELIGROSO "DANGER HAUTE TENSION" == PRECAUCIONRIESGO DE CORRIENTAZO NO ABRA PRECAUCION: PARA REDUCIR EL RIESGO DE INCENDIOS O DESCARGAS ELECTRICAS, NO PERMITA QUE ESTE APARATO QUEDE EXPUESTO A LA LLUVIA O LA HUMEDAD. PARA DISMINUOIR EL RIESGO DE CORRIENTAZO. NO ABRA LA CUBIERTA. NO HAY PIEZAS ADENTRO QUE EL USARIO PUEDO REPARAR DEJE TODO MANTENIMIENTO A LOS TECHNICOS CALIFICADOS. ATTENTIONRISQUE D'ELECTROCUTION NE PAS OUVRIR ATTENTION: PROTÉGEZ CET APPAREIL DE LA PLUIE ET DE L'HUMIDITÉ AFIN D'ÉVITER TOUT RISQUE D'INCENDIE OU D'ÉLECTROCUTION. POUR REDUIRE D'ELECTROCUTION NE PAS ENLEVER LE COUVERCLE. AUCUNE PIECE INTERNE N'EST REPRABLE PAR L'UTILISATEUR. POUR TOUTE REPARATION, S'ADRESSER A UN TECHNICIEN QUALIFIE.
Page 2
GT30 Guitar Amplifier 1 2 3 6 7 8 9 10 12 13 14 15 16 11 4 5 1: INPUT:Use this jack to connect your guitar to the amplifier by means of a shielded instru- ment cable. SOLO CHANNEL:A high gain channel giving you sounds from a slight edge to serious over- drive. 2: GAIN:Use this control to adjust the amount of distortion for the Solo channel. 3: SHAPE: Use this control to adjust to tone of the Solo channel. 4: LEVEL:Use this control to adjust the output level of the Solo channel. 5: SOLO/CLEAN:Use this switch to select the Solo or Clean channel. With the switch in the out position, the Clean channel is selected. When the switch is depressed, the Solo chan- nel is selected. CLEAN CHANNEL:A normal gain channel designed to give you crystal clear sounds to medium distortion. 6: LEVEL:Use this control to adjust the output level of the Clean channel. 7: LOW:Use this control to adjust the low fre- quency level of the clean channel. 8: MID:Use this control to adjust the midrange frequency level of the clean channel. 9: HIGH:Use this control to adjust the high fre- quency level of the clean channel. 10: REV LEVEL:Use this control to adjust the level of reverb effect. The reverb can be turned on and off by using a footswitch (#17, rear panel). 11: CHORUS ON: This switch, when depressed, activates the amplifiers built-in Chorus effect. 12: CHORUS DEPTH:Use this control to adjust the level of the Chorus effect.13: CHORUS RATE:Use this control to adjust the speed of the Chorus effect. 14: CD INPUT:Use these RCA jacks to connect the output from a CD player or tape deck to the amplifier. The signal at these jacks is combined into a mono signal which is sent to the internal power amp circuit. Use the CD or tape players output level control to adjust the signal for the proper mix with your guitar. 15: HEADPHONES:Use this jack to connect headphones to the amplifier. The internal speaker is disconnected when headphones are used. CAUTION: To avoid possible damage to your hearing, do not use headphones for extended periods of time at extremely loud levels. 16: POWER:Use this switch to turn the ampli- fier on (top of the switch depressed) and off (bottom of the switch depressed). The switch illuminates when the amplifier is turned on. 17: FOOTSWITCH (rear panel, not shown): Use this jack to connect the 1/4 stereo plug on the cable of a two-button footswitch (such as the Crate CFP2). This allows you to remotely switch between the Clean and Solo channels and turn the reverb on and off. 18: EXTENSION SPEAKER (rear panel, not shown):Use this jack to connect the amplifier to an external speaker cabinet. This jack is wired in series with the internal speaker which remains active when an extension speaker is connected. 19: POWER CORD (rear panel, not shown): The grounded power cord should only be plugged into a grounded power outlet that meets all appli- cable electrical codes and is compatible with the voltage, power, and frequency requirements stat- ed on the rear panel. Do not attempt to defeat the safety ground connection. The Front Panel:
