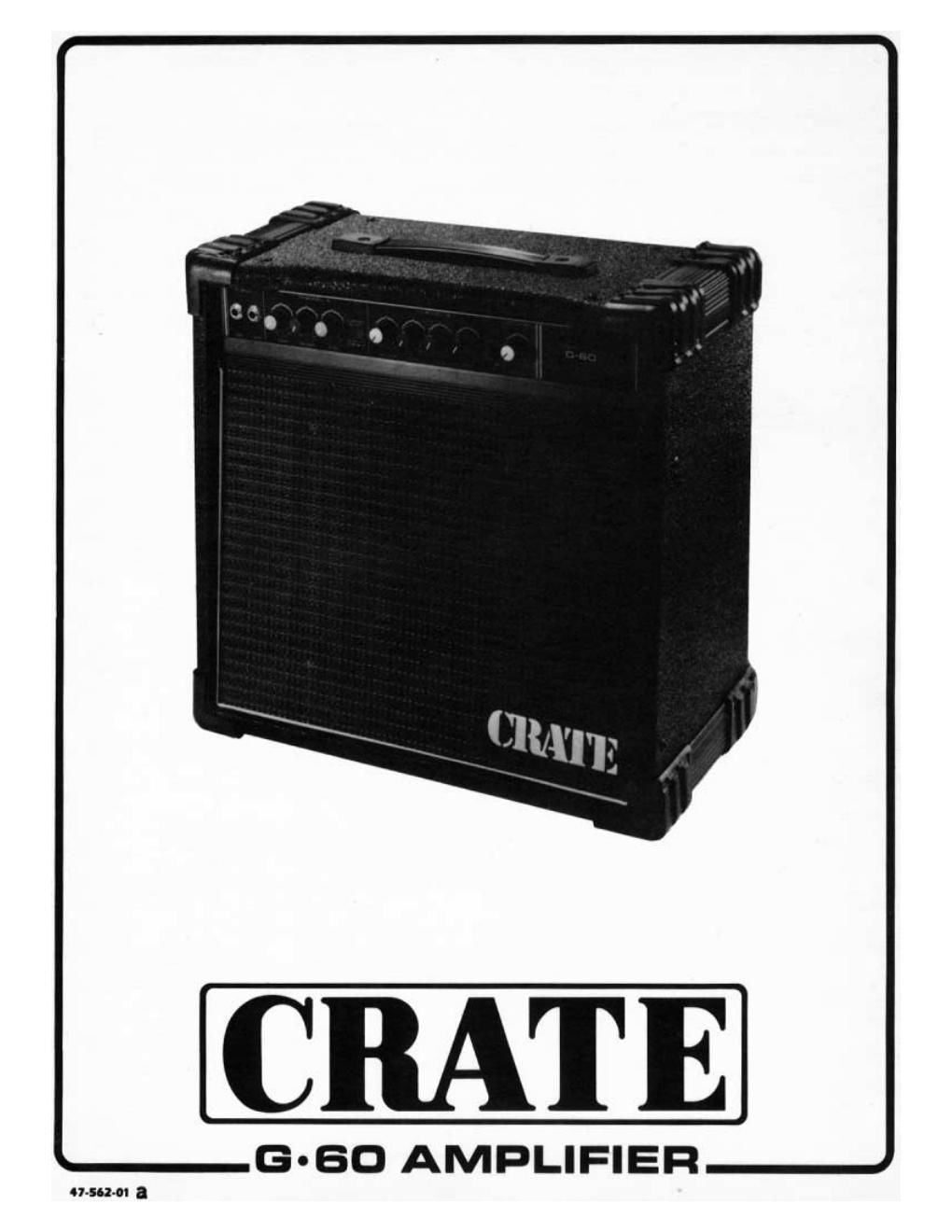

CRATE G-BO AMPLIFIER

We would like to take this opportunity to thank you for
selecting a Crate product, and to tell you of our commit-
ment to the design and manufacture of only the finest
musical instrument amplification equipment; built for
you, the musician.

You have purchased one of the most innovative sound
amplification devices available today. Your Crate amplifier
gives you more performance features than ever before:
features that you, the musician, have asked for.

Your Crate amplifier is an American product, manufac-
tured at our factory In St. Louis, Missouri. Only the finest
available components and materials are used In the
manufacture of each amplifier.

All Crate amplifiers are subject to seven or more inspec-
tion and testing stops to assure you of a high quality
product. The final test for each amp is conducted by a
trained musician with the instrument the amp was
designed for. Any unit that does not meet the standards
of his discriminating ear will not be passed.

Since all Crate products are designed, developed, and
manufactured through the cooperative efforts of
engineers and professional musicians, the end result is a
product that responds to the musician's audio re-
quirements, and a product that will serve your needs for
years to come.

TECHNICAL SPECIFICATIONS

Output Power Rating

60 watts RMS @ 5% THD
4 ohm load-I20 VAC line

Speaker Size and Rating

G~601 Custom Design I2 with I'/2" voice coil
Power Handling 60 watts RMS
G-60/GT: Ceiestion GIZM-70

Bass Control

30 do range @ 100 Hz

Mid Control

l2 db range @ I KHz

Treble Control

26 db range @ 5 KHz

Bright Switch

8 db boost @ 6KHZ

Input Impedance

220K ohms/"0 db" input
44K ohmsl-6 db" Input

Maximum input Signal Level Accepted

4 volts, peak to peak/"O db" input
8 volts, peak to peakI-6 db" Input

Total System Gain

Channel A: 92 db @ I KHz
[Shape @ 0, Bright Switch off)
Channel 3: 62 db @ I KHz
(Controls @ 10, Bright Switch off)

Signal to Noise Ratio

Channel A: 68 db-with Gain @ IO. Shape @ 0, Level @ Io
Channel 8: 60 db-with all controls @ IO, Bright Switch off

Input Power Requirements

I20 VAC. 60 H1, 200 watts max

Fuse Rating and Type

2 amp, 250V internal

Cabinet Size and Weight

I7/2" H x I8'lc W x 9%" D 34 lbs.

CAUTION: To reduce the risk of electric shock, do not remove chassis. No user serviceable parts Inside. Refer servicing to qualified
service personnel. To reduce the fish of fire or electric shock. do not expose this appliance to rain or moisture.

Bp-alflootionl Iubloot to change without notion.
