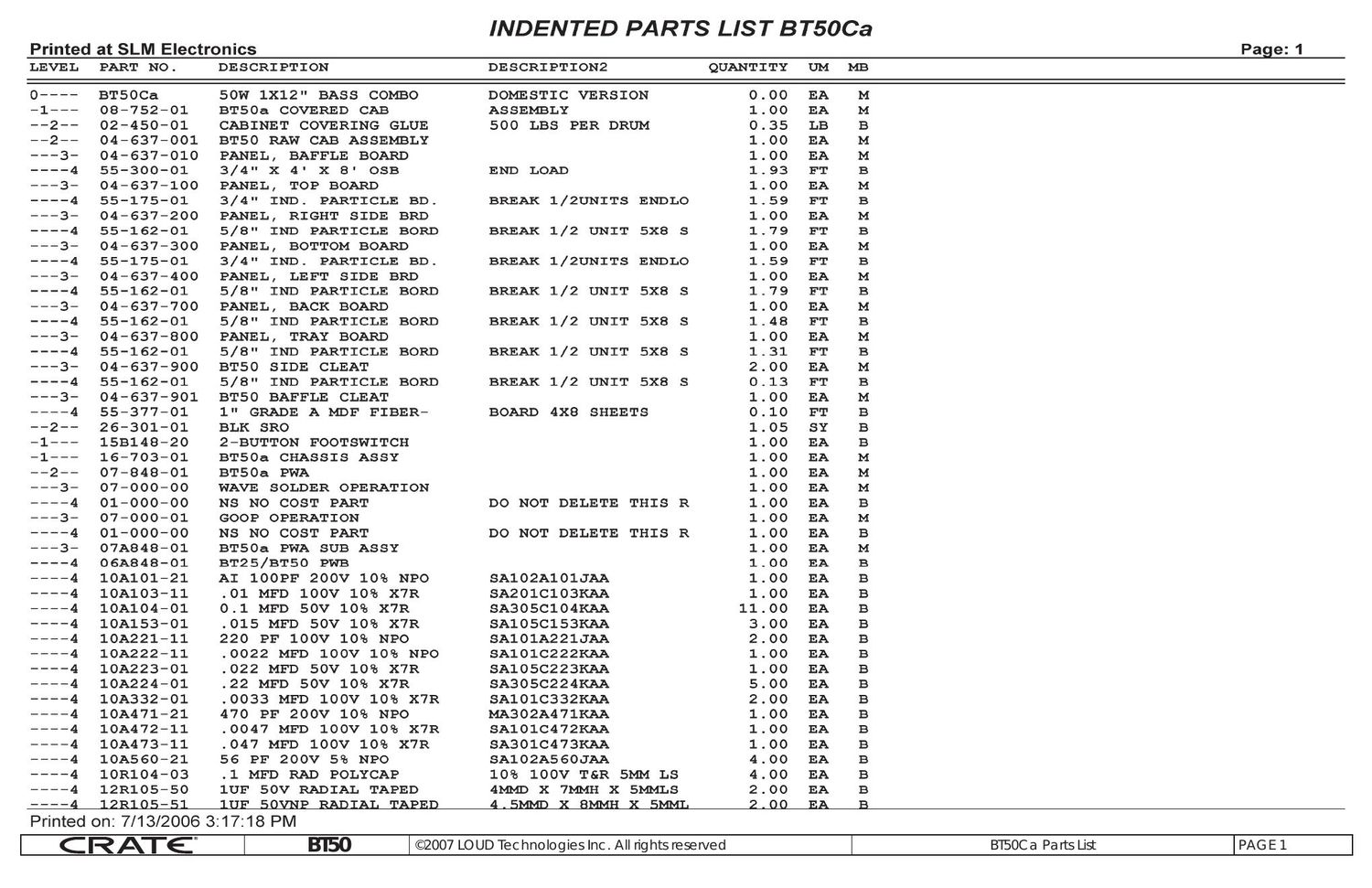

INDEN TED PARTS LIST BT5OCa

Printed at SLM Electronics Page: 1
LEVEL PART NO. DESCRIPTION DESCRIPTION2 QUANTITY UM MB
0- BTSOCa 50W 1x12" BASS COMBO DOMESTIC VERSION 0.00 EA M
-1- 08-752-01 BTsoa COVERED CAB ASSEMBLY 1.00 EA M
-2- 02-450-01 CABINET COVERING GLUE 500 LBS PER DRUM 0.35 LB B
-2- 04-637-001 BT50 RAW CAB ASSEMBLY 1.00 EA M
-3- 04-637-010 PANEL, BAFFLE BOARD 1.00 EA M
-4 55-300-01 3/4" x 4' x 8' OSB END LOAD 1.93 ET B
-3- 04-637-100 PANEL, TOP BOARD 1.00 EA M
----4 55-175-01 3/4" IND. PARTICLE BD. BREAK 1/2UNITS ENDLo 1.59 FT B
-3- 04-637-200 PANEL, RIGHT SIDE BRD 1.00 EA M
---4 55-162-01 5/8" IND PARTICLE BORD BREAK 1/2 UNIT 5x8 3 1.79 ET B
-3- 04-637-300 PANEL, BOTTOM BOARD 1.00 EA M
-4 55-175-01 3/4" IND. PARTICLE BD. BREAK 1/2UNITS ENDLO 1.59 FT B
-3- 04-637-400 PANEL, LEFT SIDE BRD 1.00 EA M
----4 55-162-01 5/8" IND PARTICLE BORD BREAK 1/2 UNIT 5X8 3 1.79 FT B
-3- 04-637-700 PANEL, BACK BOARD 1.00 EA M
---4 55-162-01 5/8" IND PARTICLE BORD BREAK 1/2 UNIT 5x8 3 1.48 ET B
-3- 04-637-800 PANEL, TRAY BOARD 1.00 EA M
-4 55-162-01 5/8" IND PARTICLE BORD BREAK 1/2 UNIT 5X8 3 1.31 FT B
-3- 04-637-900 BT50 SIDE CLEAT 2.00 EA M
-4 55-162-01 5/8" IND PARTICLE BORD BREAK 1/2 UNIT 5X8 3 0.13 FT B
-3- 04-637-901 BT50 BAFFLE CLEAT 1.00 EA M
-4 55-377-01 1" GRADE A MDF FIBER- BOARD 4X8 SHEETS 0.10 ET B
-2- 26-301-01 BLK SRO 1.05 SY B
-1- 15B148-20 2-BUTTON FOOTSWITCH 1.00 EA B
-1- 16-703-01 BT50a CHASSIS ASSY 1.00 EA M
-2- 07-848-01 BTSOa PWA 1.00 EA M
-3- 07-000-00 WAVE SOLDER OPERATION 1.00 EA M
-4 01-000-00 NS NO COST PART Do NOT DELETE THIS R 1.00 EA B
-3- 07-000-01 GOOP OPERATION 1.00 EA M
-4 01-000-00 N5 NO COST PART DO NOT DELETE THIS R 1.00 EA B
-3- 07A848-01 BTSOa PWA SUB ASSY 1.00 EA M
---4 06A848-01 BT25/BT50 PWB 1.00 EA B
-4 10A101-21 AI 100PF 200V 10% NPO SA102A101JAA 1.00 EA B
-4 10A103-11 .01 MED 100V 10% X7R SA201C103KAA 1.00 EA B
-4 10A104-01 0.1 MFD 50V 10% X7R SA305C104KAA 1.00 EA B
-4 10A153-01 .015 MED 50V 10% X7R SA105C153KAA 3.00 EA B
-4 10A221-11 220 PF 100V 10% NBC SA101A221JAA 2.00 EA B
-4 10A222-11 .0022 MFD 100V 10% NPO SA101C222KAA 1.00 EA B
-4 10A223-01 .022 MED 50V 10% X7R SA105C223KAA 1.00 EA B
-4 10A224-01 .22 MED 50V 10% X7R SA305C224KAA 5.00 EA B
-4 10A332-01 .0033 MFD 100V 10% X7R SA101C332KAA 2.00 EA B
-4 10A471-21 470 PF 200V 10% NPO MA302A471KAA 1.00 EA B
-4 10A472-11 .0047 MFD 100V 10% X7R SA101C472KAA 1.00 EA B
-4 10A473-11 .047 MFD 100V 10% X7R SA301C473KAA 1.00 EA B
-4 10A560-21 56 PF 200V 5% NPO SA102A560JAA 4.00 EA B
-4 10R104-03 .1 MFD RAD POLYCAP 10% 100V T&R 5MM LS 4.00 EA B
-4 12R105-50 lUF 50V RADIAL TAPED 4MMD X 7MMH X 5MMLS 2.00 EA B
-4 123105-51 1HE 59yu2 RADIAL IAEED 4 5MMD x BMMH x 5MML 2 00 EA B
Printed on: 7/13/2006 3:17:18 PM
CRAT€ 3150 ©2007 LOUD Technologies |nc.A|| rights reserved BTSOCa Parts List PAGE 1

Page 2

INDEN TED PARTS LIST BT5OCa

Printed at SLM Electronics Page: 2
LEVEL PART NO. DESCRIPTION DESCRIPTION2 QUANTITY UM MB
-4 12R106-35 10UF 35V RADIAL TAPED 5.5MMD X 8MMH X 5MML 4.00 EA B
-4 12R106-36 10UF 35VNP RADIAL TAPE 6.8MMD x 8MMH x 5MML 1.00 EA B
---4 12R107-32 lOOUF 35V 8 X llMM TAPED 3.00 EA B
-4 12R225-50 2.2UF 50V RADIAL TAPED 4.5MMD x 8MMH x 5MML 2.00 EA B
-4 12R225-51 2.2UF 50VNP RADIAL TAP 4.5MMD X 8MMH X 5MML 1.00 EA B
-4 12R476-35 47UF 35V RADIAL TAPED 6.8MMD X 13MMH x 5MM 2.00 EA B
-4 17-836-01 .250" PC TAB ON REEL STABLE LOCK 6021-6 2.00 EA B
-4 17-894-01 .187" PC TAB ON REEL STABLE LOCK 6024- 8.00 EA B
-4 21A146-01 1N746ARL 3.3V ZEN DIOD 2.00 EA B
-4 21A402-01 1N4002TR DIODE PLASTIC 1 AMP 100 PIV 4.00 EA B
-4 21A444-01 1N4744ARL 15V 5% 1WZEN 2.00 EA B
----4 21A914-01 1N914 OR 1N4148 T&R 10.00 EA B
-4 37-072-01 TLO-72CP IC CHIP 6.00 EA B
----4 37-413-01 CMOS DUAL FLIP/FLOPS "D" TYPE 1.00 EA B
-4 76-000-05 22 GA TINNED COPPER BUS WIRE 5K FT PUTUP 48.00 EA B
---4 76-047-01 4.7 OHM 1/4w 5% TR RES 2.00 EA B
-4 76-101-01 100 OHM 1/4W 5% RES TR 1.00 EA B
-4 76-102-01 1K OHM 1/4w 5% RES T&R 6.00 EA B
-4 76-103-01 10K OHM 1/4W 5% RES TR 6.00 EA B
-4 76-104-01 100K 1/4w 5% RES T&R 5.00 EA B
-4 76-105-01 1 MEG 1/4w 5% RES TSR 6.00 EA B
-4 76-152-01 1.5K 1/4w 5% RES T&R 1.00 EA B
-4 76-153-01 15K OHM 1/4W 5%RES T&R 2.00 EA B
-4 76-154-01 150K 1/4w 5% RES T&R 1.00 EA B
---4 76-221-01 220 OHM 1/4w 5% RES TR 2.00 EA B
-4 76-222-01 2.2K 5% 1/4W RES T&R 4.00 EA B
-4 76-223-01 22K OHM 1/4w 5% RES TR 13.00 EA B
---4 76-224-01 220K 1/4w 5% RES T&R 2.00 EA B
-4 76-333-01 33K OHM 1/4W 5% RES TR 1.00 EA B
-4 76-470-01 47 OHM 1/4W 5% RES T&R 4.00 EA B
-4 76-471-01 47o OHM 1/4W 5% RES TR 4.00 EA B
-4 76-472-01 4.7K 1/4w 5% RES T&R 5.00 EA B
-4 76-473-01 47K 1/4W 5% RES T&R 13.00 EA B
-4 76-474-01 470K 1/4w 5% RES T&R 1.00 EA B
-4 76-681-01 680 OHM 1/4w 5% RES TR 2.00 EA B
-4 77-102-03 1.0K 5% 1/2W FLAMEPRUF USE 1/4 W'SPAN 1.00 EA B
-4 77-152-01 1.5K 1/2w 5% RES T&R 1.00 EA B
-4 77-221-01 220 OHM 1/2w 5% RES TR 2.00 EA B
-4 78A152-01 1.5K OHM, 1W, 5% RES TAPE AND REEL 1.00 EA B
-4 96R013-01 MPS-A13 RADIAL TAPED 3.00 EA B
-4 96R175-01 J175 FET TO-92 RADIAL TAPED 7.00 EA B
-4 96R510-01 2N5210 NPN TO-92 RADIAL TAPED 1.00 EA B
-4 96R588-01 2N5088 TO-92 RADIAL TAPED 3.00 EA B
---3- 10-332-01 .0033 DISC 20% UL VDE 1.00 EA B
-3- 10F224-03 .22 MFD RAD POLY 10% 100v FORMED 5MM Ls 2.00 EA B
-3- 12-478-25 4700MFD RAD EL 25VBULK L33 X D19 X 7.5-FORM 2.00 EA B
-3- 17-105-03 3 PIN .1" ST POL LOCK MLSSlOO-B-D HEADER 1.00 EA B
-3- 17-310-02 MFSS156-2-D 1 00 EA B
Printed on: 7/13/2006 3217218 PM
CRAT€ 3150 ©2007 LOUD Technologies |nc.A|| rights reserved BI'SOCa Parts List PAGE2
