Crate B 150 bassguit combo

Page 1

Q'Vv '- ~ '
an". "3.
.

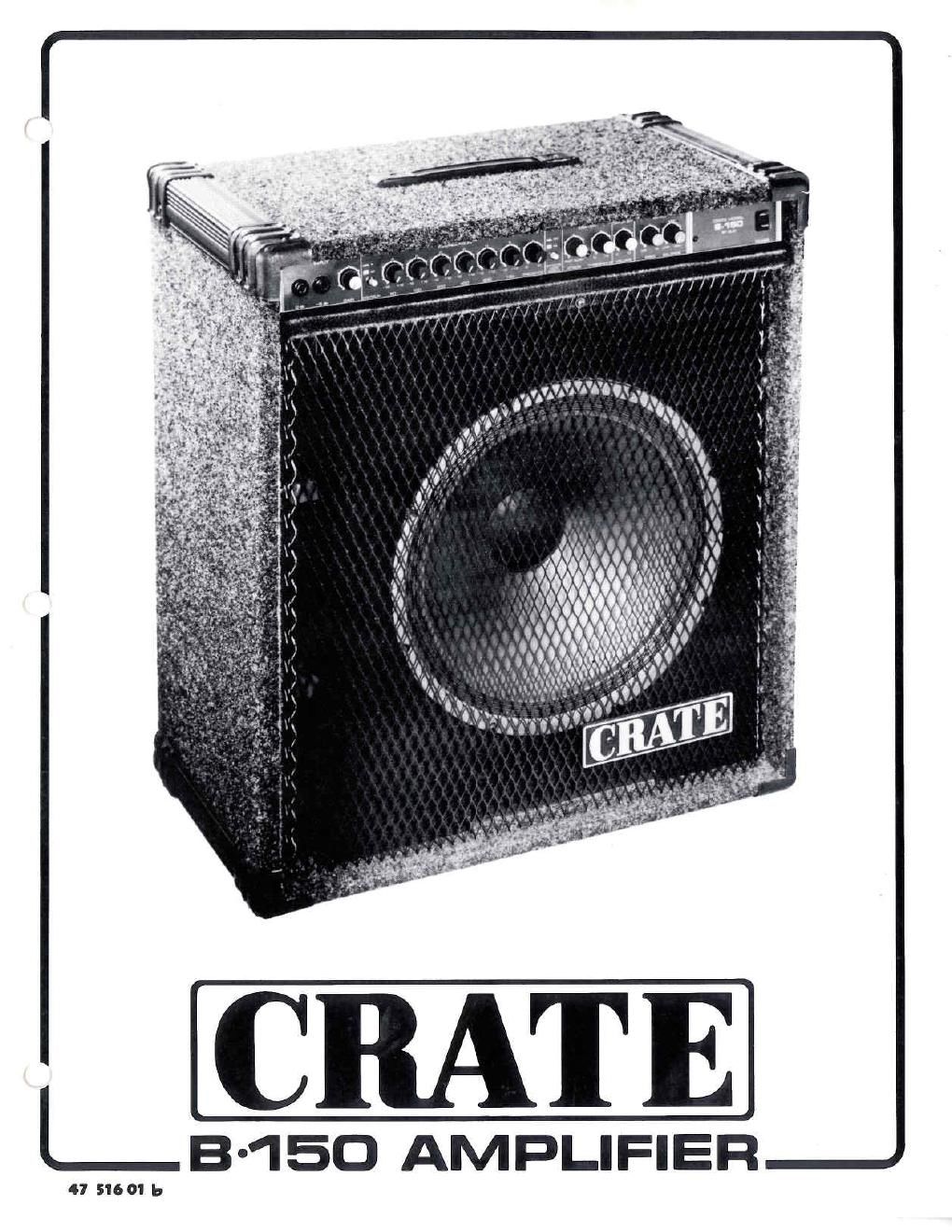

3450 AMPLIFIER

41 516 01 b

Page 2

30150 AMPLIFIER

We would like to take this opportunity to thank you fo '
selecting a Crate product, and to tell you of our commit »
ment to the design and manufacture of only the finest
musical instrument amplification equipment: built for
you, the musician.

You have purchased one of the most innovative sound
amplification devices available today. Your Crate amplifier
gives you more performance features than ever before:
features that you, the musician, have asked for.

Your Crate amplifier is an American product, manufac-
tured at our factory in St. Louis, Missouri. Only the finest
available components and materials are used in the
manufacture of each amplifier.

Ali Crate amplifiers are subject to seven or more inspec-
tion and testing stops to assure you of a high quality
product. The final test for each amp is conducted by a
trained musician with the instrument the amp was
designed for. Any unit that does not meet the standards
of his discriminating ear will not be passed.

Since all Crate products are designed, developed, and
manufactured through the cooperative efforts of
engineers and professional musicians, the end result Is a
product that responds to the musician's audio re-
quirements, and a product that will serve your needs for
years to come.

3'1 50 TECHNICAL SPECIFICATIONS

Output Power Rating

Speaker Size and Rating

Equalization
Presence Control
Contour Switch
input impedance

Maximum input Signal
Level Accepted

Gain (a 1 RH:
Outputs @ Fuil Power

150 watts RMS @ 5% THD
4 ohm load - 120 VAC llne

B-iSOC: 15 with 2-i/2" voice coil and 56 oz. magnet
Power Handling iSO watts

B-l 50CS: 15" Electra-Voice Force

B-iSOH: No speaker, head only

:12 dB @ 50. 100, 200, 400, 800. and 1600 Hz
12 dB boost @ 3KHz
Special frequency tailoring

220 K ohms/0 dB" Input
56 K ohms/"- 15 dB" Input

15 volts, peak to peak

57 dB with tones fiat, Presence and Contour off

Unbalanced Line Out (rear panel) .85 volts RMS

Balanced Line Out [600 ohm load) .95 volts RMS

Effects Send ("He") .52 volts RMS

Bl-amp Outputs .65 volts RMS

Line Out [bottom panel) .65 volts RMS

Signal to Noise Ratio 65 dB

Input Power Requirements 120 VAC. 60 Hz k

Cabinet Size and Weight

500 watts max

27" H x 24" W x 16" D 70 lbs.

CAUTION: To reduce the risk of electric shock, do not remove chassis. No user serviceable parts inside. Refer servicing to qualified
service personnel. To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

Specifics-Blon- Iuhieat: In aim-nae without notice.
