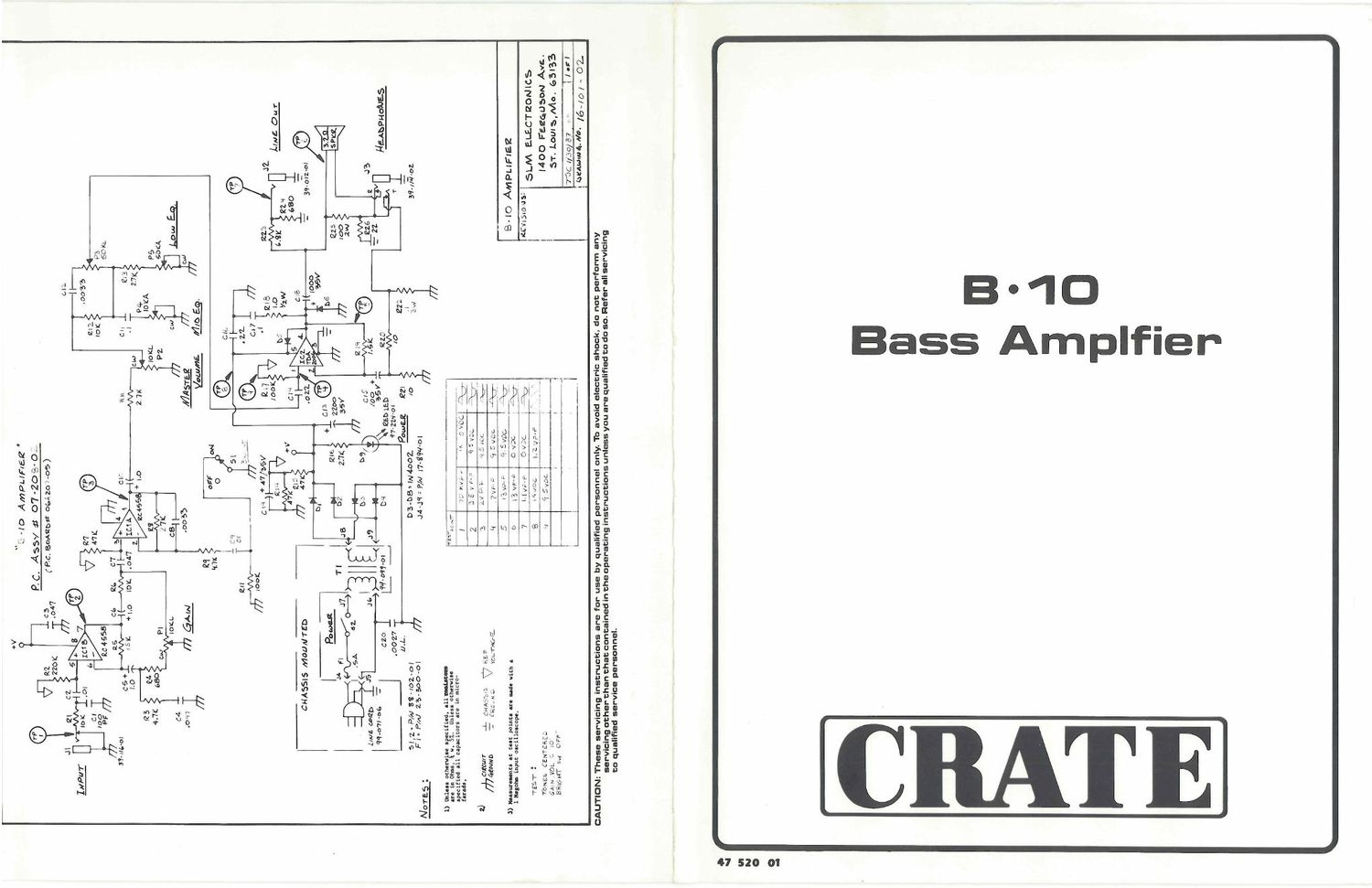

Crate B 10 Manual Schematic

Page 2

We would like to take this opportunity to thank you for
selecting a Crate product, and to tell you of our commit-
ment to the design and manufacture of only the finest
musical instrument amplification equipment; built for
you, the musician.

You have purchased one of the most innovative sound
amplification devices available today. Your Crate amplifier
gives you more performance features than ever before;
features that you, the musician, have asked for.

Your Crate amplifier is an American product, manufac-
tured at our factory in St. Louis, Missouri. Only the finest
available components and materials are used in the
manufacture of each amplifier.

CRATE B-1O Bass Amplfier'_

All Crate amplifiers are subject to seven or more inspec-
tion and testing stops to assure you of a high quality
product. The final test for each amp is conducted by a
trained musician with the instrument the amp was
designed for. Any unit that does not meet the standards
of his discriminating ear will not be passed.

Since all Crate products are designed, developed, and
manufactured through the cooperative efforts of
engineers and professional musicians, the end result is a
product that responds to the musicians audio re-
quirements, and a product that will serve your needs for
years to come.

B-IO TECHNICAL SPECIFICATIONS

Output Power Rating
Speaker Size and Rating

Bass Control
Mid Control
Treble Control
Bright Switch

3 watts RMS @ 10% THD
3.2 ohm load-120 VAC

Custom Design 8 with 1 voice coil
Power Handling 10 watts RMS

12 db range @ 80 Hz
6 db range @ 800 Hz
12 db range @ 3 KHz
6 db boost @ 3 KHz

input Impedance 220 K ohms
Maximum input fignal Level Accepted 3 volts, peak to peak
Total System Gain 43 db

Signal to Noise Ratio 65 db

Line Out Level
Headphone Level

Input Power Requirements
Cabinet Size and Weight

Specmcatlons subject to change without notlce.

1 volt, peak to peak, @ full output

30 mw nominal with 8 ohm phones/
2 volt open circuit

120 VAC, 60 Hz, 23 watts max
16 H x 14-1/2 Wx 7-1/2 D 20 lbs.

CAIrnON: To reduce the risk of electric shock, do not remove chassis. No user serviceable parts Inside. Refer servicing to qualified service personnel.

CAUTION: This amplifier Is capable of producing high sound pressure levels [high volume). Continued exposure to high sound pressure levels can cause
permanent hearing Impairment or loss. User caution Is advised, and ear protection is recommended when playlng at high volumes.

mm Mixers :4 eacnclzmm

FRONT PANEL

1. INPUTJACK:Thisi/4phonejack
accepts input from a bass guitar or
other input source.

2. GAIN CONTROL: This control
sets the amount of gain for the
preamp. A low output instrument
requires high gain while less gain
is needed with a high output In-
strument. Setting this control too
high along with boosted equaliza-
tion may cause distortion. if this is
not desired, simply reduce the
amount of gain.

3. Bright Switch: This switch affects
the brilliance or harmonics of the
bass sound by adding additional
bite" or sharpness.

4. MASTER VOLUME: Use this con-
trol to set the overall level of
sound.

5. HIGH CONTROL (Treble): This
knob affects the upper harmonic

0 GP? 0 late
l

\8

range of the guitar, and clockwise
(higher) settings increase the
crispness or "bite" of the sound.

6. MID CONTROL: The amount of
midrange tone is set using this
control. Low settings can "thin
out the sound, while higher set-
tings can give a "fatter" sound.
Lower settings will give a "heavy
textured" sound, especially if lows
and highs are boosted.

7. LOW CONTROL [Bass]: The
amount of "bottom" or warmth"
may be increased or decreased
with this knob.

POWER

8. POWER LED INDICATOR: The
amplifier is on when this LED is lit.

9. POWER SWITCH: Pressing the
left side of the switch turns the
unit on, and the right side turns
the amp off.

REAR PANEL

10. POWER CORD: Your B-lO
amplifier is equipped with a heavy
duty, three-wire, grounded AC
cord. Be sure this cord is properly
plugged into a safely wired outlet
before use. For your safety, do not
defeat the ground connection on
this cord.

11. LINE OUT JACK: This is an unbal-
anced high impedance line output.
which may be used to link the 8-10
to additional amplifiers or to con-
nect the amp to a tape recorder.
Simply run a cable from thisjack to
the input of the other unit.

12. HEADPHONE JACK: Unpow-
ered headphones may be plugged
into this jack. Plugging head-
phones into this jack disconnects
the internal speaker so the output
of the amplifier will be heard only
through the headphones.

LIMITED WARRANTY

SLM Electronics warrants this product to be free of defects in material
and workmanship for a period of one (llyear from the original date of
purchase to the original purchaser and is not transferable. Speakers,
tubes, and meters carry a ninety [90] day warranty. This warranty is
subject to the conditions, exclusions, and limitations hereinafter set
forth.

Excluded from this warranty are defects caused by wear and tear, misuse,
neglect, alterations and modifications, or act of nature. Such determina-
tions will be made by SLM Electronics. Warranty is also void if:
a. The original retail purchase lsnot made from an Authorized Crate or
Audio Centron dealer;
b. The serial number affixed to the product is altered. defaced or
removed.

All pans costs will be borne by SLM Electronics within the warranty
period. Labor costs will be covered within the warranty period accord-
Ing to rate schedules established by SLM Electronics. Warranty service
may be done by SLM Electronics or an SLM Authorized Field Service
Center. Transportation charges involved in warranty service are the sole
responsibility of the purchaser.

SLM Electronics warrants speakers to be free from defects In material and

workmanship for a period of ninety (90] days from original date of
purchase. Speaker warranty will be subject to inspection of speaker by
SLM Electronics or SLM Authorized Field Service Center. Obvious over-
powering will resuit in warranty denial. Realizing speakers can be over-
loaded causing failure. SLM Electronics will replace the speaker with a
speaker of some or equal type at a price one-half the then current
suggested retail price of the new speaker for life, regardless of reason.

Warranty repairs may be handled by your authorized dealer, authorized
SLM Service Center, or SLM Electronics. All units being returned to SLM
Electronics must be accompanied with a detailed description as to
needed repairs, a copy of the original sales receipt, and an SLM Elec-
tronics return authorization. SLM Electronics reserves the right to repair
or replace this piece of equipment at their option.

SLM Electronics is not liable for any incidental or consequential damages
resulting from any defect or failure of this instrument other than the
repair of the SLM Electronics product subject to the terms of this war-
ranty. This limited warranty gives you specific legal rights, and you may
have other rights which vary from state to state. This warranty is ex-
pressly in lieu of all other agreements and warranties, expressed or
implied. except as may be otherwise required by law.

SLM ELECTRONICS division of ST. LOUIS MUSIC
i400 Ferguson Ave.° St. Louis, MO 63I33
