Extracted text from counterpoint sa 8 owners manual (Ocr-read)

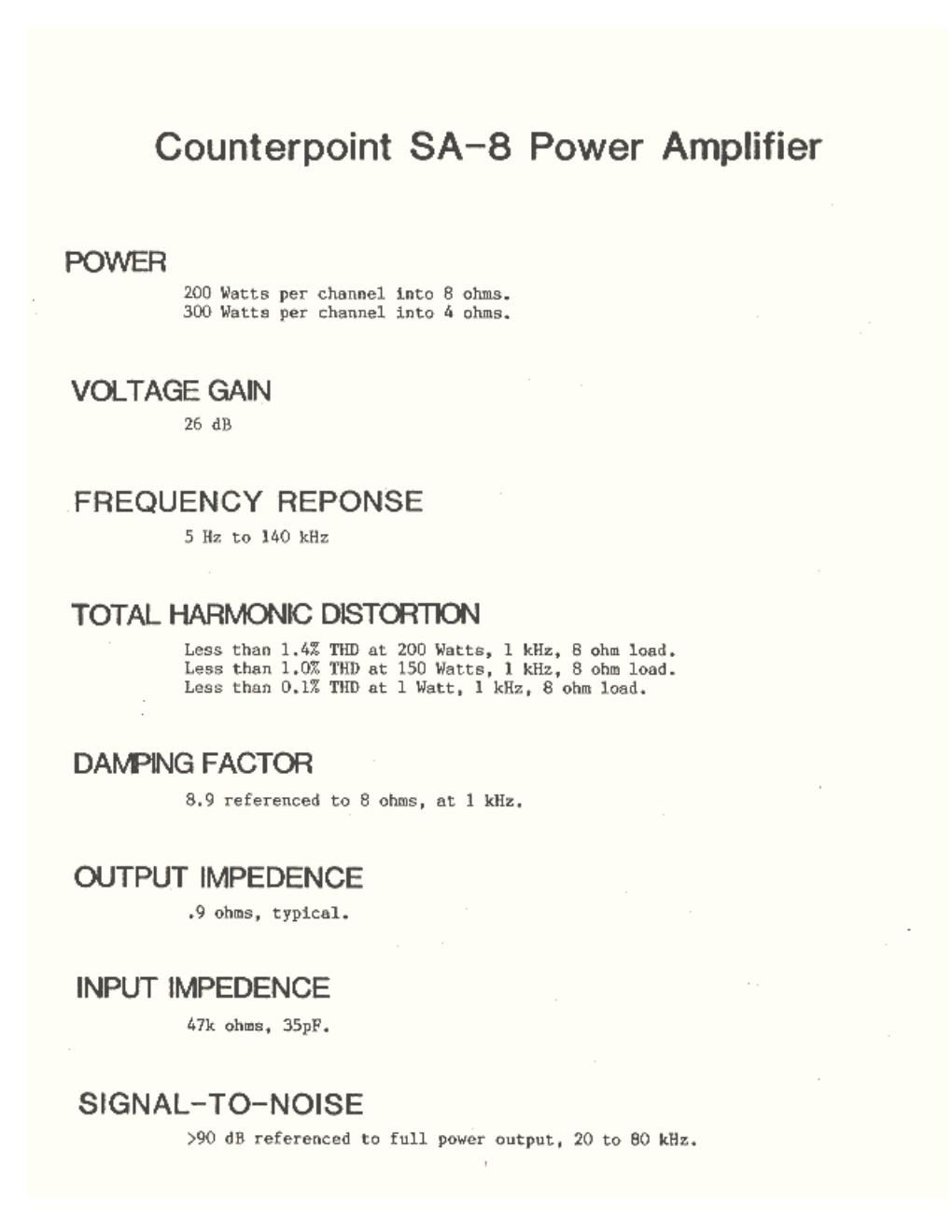

Page 2
ABSOLUTE POLARITY
Inverting
DIMENSIONS
Standard 19" (480cm) rack-mount front panel; height 4.55" (116mm);
depth front-to-back 16" (doomm). Shipping weight 45 lbs (20.5k3).
l/l/l/l/l/l/l/l/l/l/ll/l/l/l/l/l/l/
The SA-B Dual-channel Hybrid Power Amplifier is a tube front-end. MOSFET
output stage design capable of delivering 200 watts per channel into eight
ohms.
CIRCUIT HIGHLIGHTS
-Very simple topology: a 12AX7 voltage amplifier followed by a cathode
follower drives directly into the gates of 6 Hitachi MOSPETS.
-With the exception of the cathode follower's inherent degeneration. no
feedback. local or global. is used.
-The tubed "front end" operates on a tightly-regulated power supply.
The output stages have their own transformer, with 36,000 microfarade
of capacitive energy storage per channel.
-Voltage for the tube filaments is regulated.
~Automatic muting protects speakers from turn-on and turn-off
transients, without inserting relay contacts into the signal path.
-Metal-film 12 Resists" resistors. high quality electrolytic and
polypropylene capacitors used throughout.
