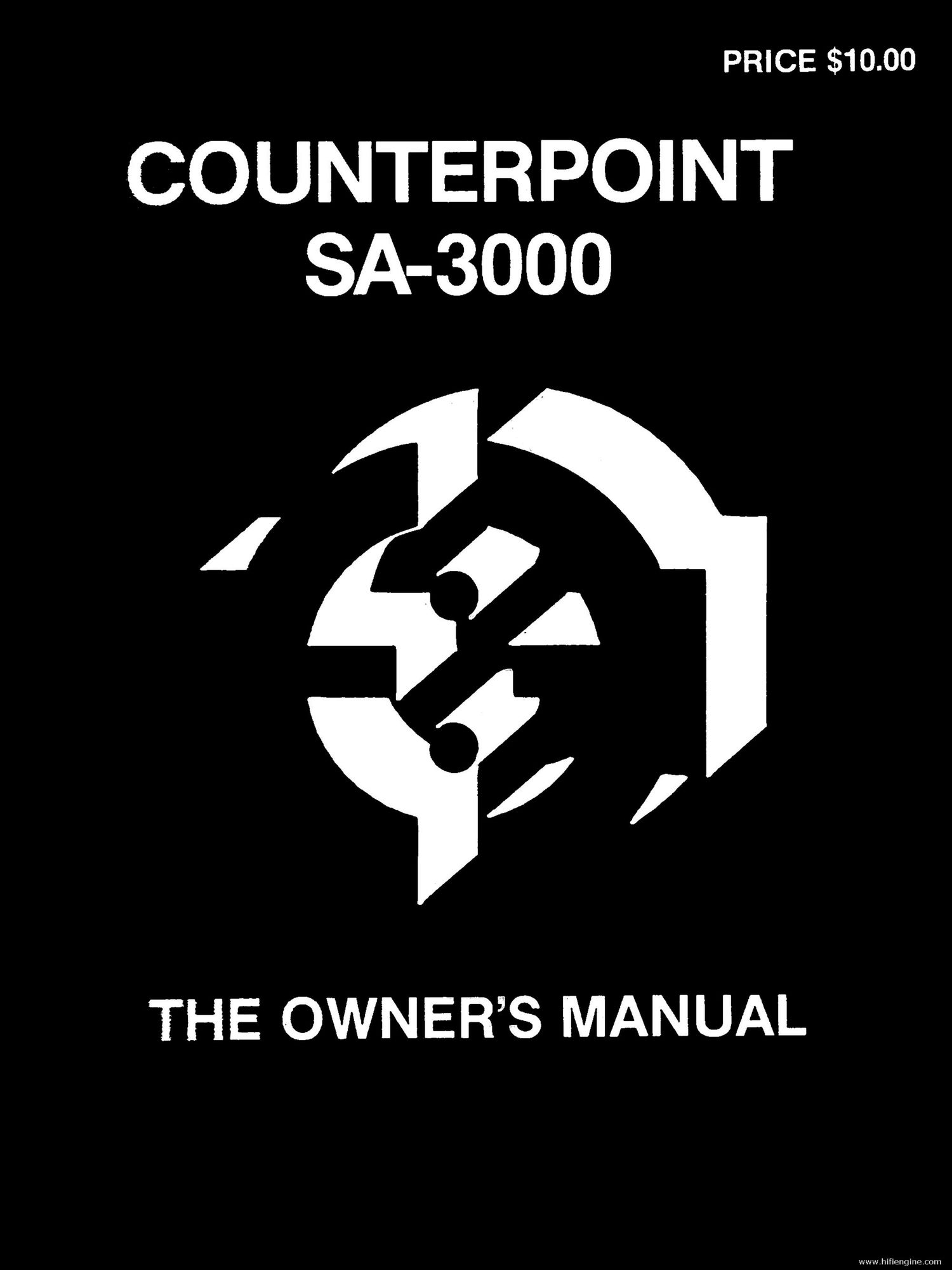

Page 1
PRICE $10.00
COUNTERPOINT
SA-3000
THE OWNERS MANUAL
Page 2
TABLE OF CONTENTS
INTRODUCTION page 1
INSTALLING THE TUBES, THE FIRST STEP page 2
GETTING YOUR SA-3000 ON THE AIR QUICKLY page 3
INSTALLING THE SA-3000 page 6
Locating Your SA-3000 And Cooling Considerations
Condiserations
Locating The External Transformer Box
FAMILIARIZING YOURSELF WITH THE SA-3000 page 7
Front Panel Description
Input Select.
Mono/Stereo.
Tape 1 Monitor.
Balance.
_ Gain.
Mute/Operate.
Ready/Standby Switch.
Back Panel Descirption
Chassis Ground.
Audio Inputs.
Phono.
.High Level.
Audio Outputs.
Tape Out.
anOm.
CONNECTING YOUR TAPE MACHINE page 9
BREAK-IN AND WARM-UP PERIODS page 9
INTERNAL ADJUSTMENTS page 9
Adjustments Easily Made By Anyone
Phono Input Selection
MC Cartridge Loading
Determining the Correct Value of Loading for a MC Cartridge.
Balancing the Phono Stage.
Adjusting Phono Stage D.C. Offset.
Adjusting Line Stage D.C. Offset.
