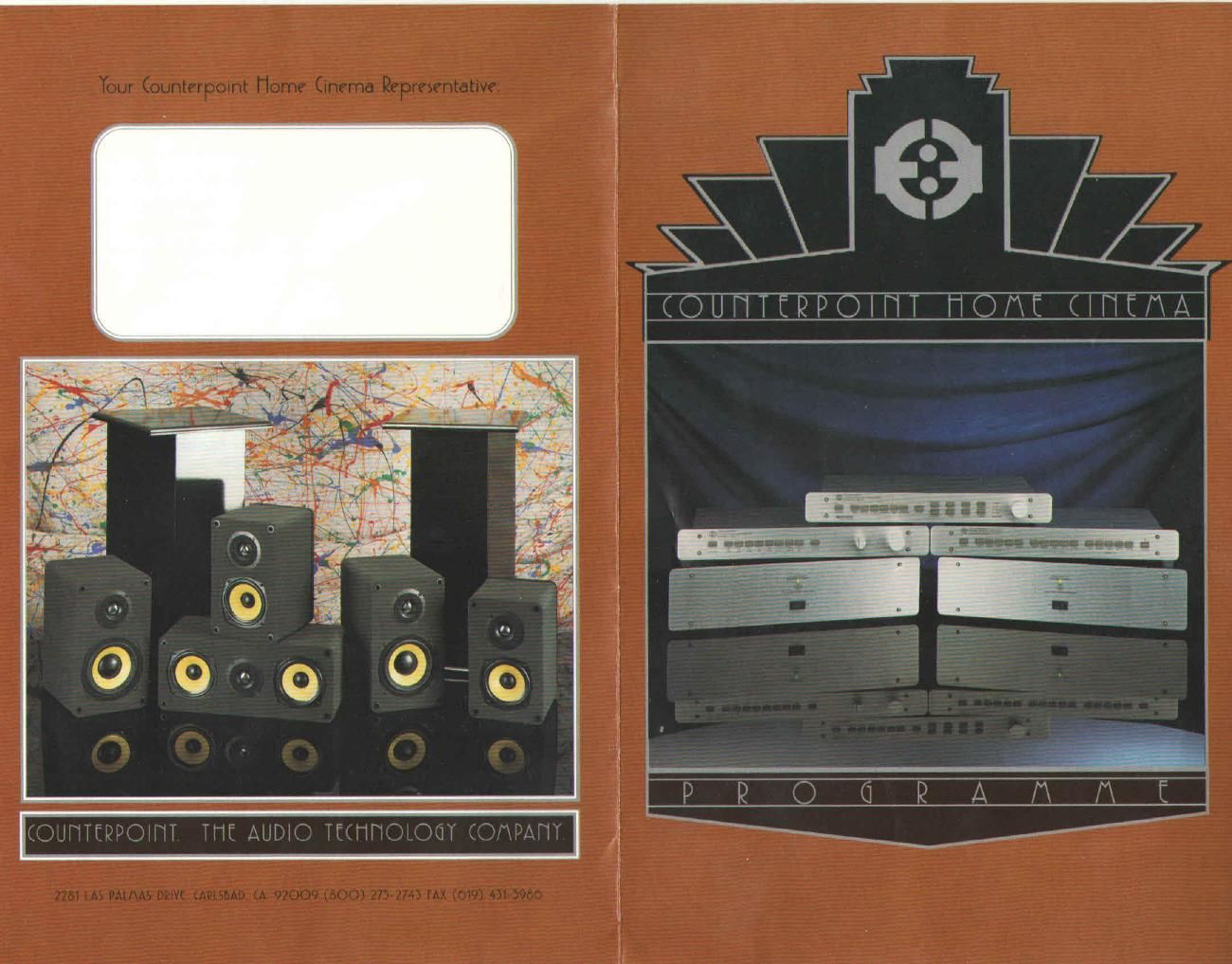

Counterpoint Home Cinema

Page 2

Home Cinema Sound from Counterpoint.

The Auolio Company Tou've Come to Trust.

At last, a home theater sound sytem that can satisfy even the most demanding Audiophile! Counterpoint , using the award-winning technology that we re famous for, has
put together a system of matchless quality and value. Components are perfectly matched and meticulously crafted in our Califbrnia facility to leave the guesswork out.

All of the following components are controllable by a single IR remote control
(RF availahle as an addon option) and when combined together offer a system
designed for maximum flexibility as well as simplicity. For example, selecting a
VlEWahle source, such as Laser disc of TV tuner, will automatically present
that source's sound to the speakers. However, selecting any audio source, such
as CD or FM tuner, will automatically override the VIEW source. All units are

Our 7-piece Home Cinema speaker system distinguishes itself by utilizing cus
tom-made glass fiber cone technology for superior dynamics and clarity.
Additionally, it produces bass in stereo, instead of the mono bass home the-
ater speaker systems frequently sold. The standard finish is black suede

Nexrel, with other finishes avalahle on a special order basis. All speakers can

available in Back or Silver, and come with a Lyear limited warranty.

PIC-808
®

Dolby ProLogie
Surround Sound

Processor
Boasting high
quality parts
such as
Roderstein 1%
metal film resis-
tors, Wima
polypropylene
ca aeitors and
A ps motor-dri-
ven poten»
tiometers, the
l~l(}808 offers
superior, more
lifelike sound
than competing
units It also
features stereo
subwoofer out-
puts, adding
impact to foov
steps, gunshots
and other low
frequency sound
effects, as well
as a bypassahle
Monitor loop

HC-B 1 8
Audio

Controller
A dual-purpose
audio control
center, it offers
fixed-level out-
puts for conneca
tion to the HC-
808, You can
select between 7
audio sources by
remote. There
are two tape
loops with ftlll
duhbing. The
tape nuts are
controlled inde)
pendently from
the main system
outputs permit-
ting back»
ground" record-
ing while listen;
ing to another
source. And
there's more: an
audiophile»grade
line stage for a
separate audioa

HC-828
Video

Switcher
Slaved off the
HC'828, this
optional Video
switcher offers 5
video inputs (Sa
video or com-
posite) and can
we connected to
up to three
monitors and a
VCR with inder
pendendent
source selection
for each moni»
tor. All outputs
are also Swideo
and composite.
This component
features the
same solid
aluminum
machined front
panel and but
tons, and top
quality compo
nentry found in
our other Home

Solid 1
Power

Ampl' 'er
This amplifier.
lauded as the
Best Buy" in
Taiwan, and
One of the 10
Best Buys in
Audio by Bound
for Sound, is the
perfect amplifier
for the home
theater, or for a
dual purpose
audio/video sys-
tem. Based upon
PET and hipolar
cascode technol-
ogy, this amplifi-
er offers an
impressive 60
amps of peak
current, with 100
WPC at 8 Ohms,
and 170 at 4
And potentially
speaker damag-
ing DC offset is
eliminated hy a

for insertion of only highfideli Cinema prod- SWPhiSiCHIed
an equalizer. ty sound system! uct. 50W
Dimensions: Dimensions: Dimensions: Dimensions:
1 " X 2.25" X 19" X 2.25" X [9 X125 X 19" X 4.46" X
10.5" (WHD) 10.5" (WHD) 10.5" (WHD) 10.5" (WHD)

NOTE. All. [NH )RMATit 1N W THlS BRK )(Jlilllili iN SUHJECT TL) CHANGE WITHOUTNOTKIIS
OR OBLIGATION DOLBY IRULOGKI ®lS A TRADEMARK 0| DOLBY LABORAiORli-ISW, [NLL

he purchased together or separately, and come with a Sayear limited warranty.

We Th Th _ Th
lJlJOU (llilrll ilUM MVSl l(. l MIME 5V
Center dialogue RightILeft Dipolar Surround RighrlL. '
Sneaker Satellite Speaker Speaker Subwoofer/Stand

How often do
you find yourself
thinking, What
did she just say? "
when watching
a film? It is the
all-important
center dialogue
channel which
makes the dif-
ference here. By
using drivers of
a quality found
in the finest
audiophile sysv
terns, ultimate

These stereo
speakers are good
enough to stand
alone in a quality
home stereo. But
what they do in
a home theater is
simply astonish-
ing. Their ahility
to localize char"
acters and action
will astound you.
But maybe you
shouldn't he
suprised. as they
are from

The rear surround
speakers are what
gives your theater
system its front to
hack localimrion
and depth.
Counterpoint
speakers are simr
ply better
designed to
enhance the pre-
sentation with a
sophisticated
dipole design that
gives the mono-
phonic rear signal

These stereo
suhwoofers serve
not only to pro-
vide solid hass to
30 ill, but . so
to be attractive
speaker stands or
endtahles.
Finished in
Piano-black lac-
quer, these suh-
woofers have a
built-in crossover.

enhance perfor-

clarity is Counterpoint, increased ambi- mance in any
achieved. ence and depth. system.
Specifications Sbecifieations Specifications Specifications
Shielding: <3 Shielding: <$ Shielding: <3 Shielding: <3
Gauss @ 3 cm Gauss @ 60 cm Gauss @ 60 cm Gauss @ 60 cm
Impedance: 4 Ohms imped: 8 Ohms Impetla 4 Ohms lmped.: 8 Ohms
m 60 Hz»20kl'lz m 60 HZVZOLHZ M (70 Hz-ZOkH: PM.- MHz-60H:
Power l-landling: Power Handling: Power Handling: Power Handling:
100 Watts 100 Watts 100 Watts 200 Watts
Sensitivity: 87 Sensitivity: 87 Sensitivityz85dB Sensitivity: 87
dB@1W/1M dB@lW/1M @lW/lM dB@lW/lM
Woofers: Two Woofers: Two Woofers: Two Drivers:
5.25"Glass Fiher 6.5" Glass Fiber 5.25" Glass Fiber Two 8
Tweeter: One 1" Tweeter: One 1" Tweeter: One Polypropylene
Aluminum Dome Aluminum 1" Aluminum Woofers.

Dimensions: 7" X
17.5" X 8" (HWD)

Dimensions: 14" X
9" X 10" (HWD)

Dimensions: 10"
X 7" X 8" (HWD)

Dimensions: 26" X
15" X 17" (HWD)
