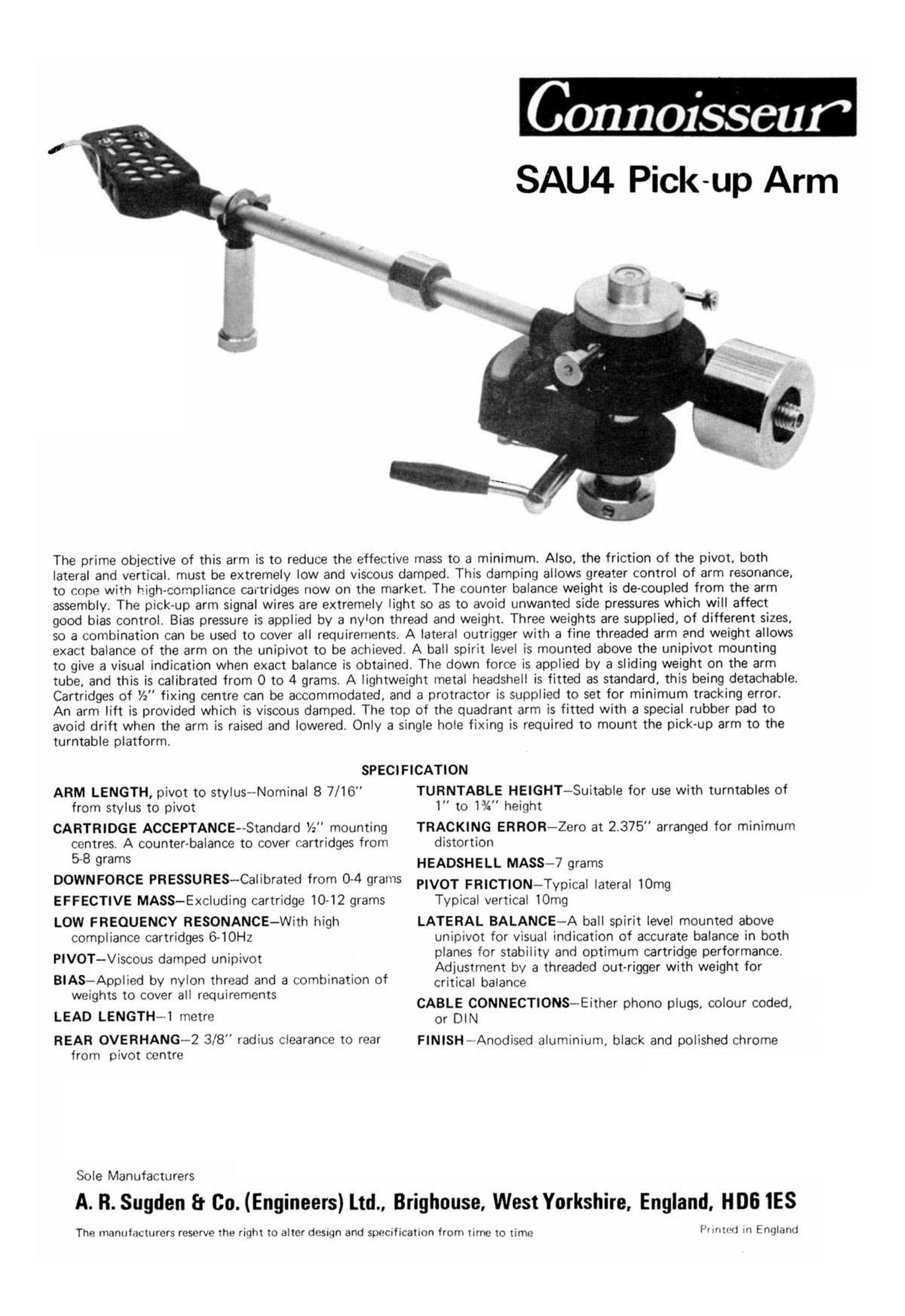

Connoisseur sau 4 brochure

Page 1

0111101536111

SAU4 Pick-up Arm

The prime objective of this arm is to reduce the effective mass to a minimum. Also, the friction of the pivot, both
lateral and vertical. must be extremely low and viscous damped. This damping allows greater control of arm resonance,
to cope with high-compliance cartridges now on the market. The counter balance weight is decoupled from the arm
assembly. The pick-up arm signal wires are extremely light so as to avoid unwanted side pressures which will affect
good bias control. Bias pressure is applied by a ny'on thread and weight. Three weights are supplied, of different sizes,
so a combination can be used to cover all requirements. A lateral outrigger with a fine threaded arm and weight allows
exact balance of the arm on the unipivot to be achieved. A ball spirit level is mounted above the unipivot mounting
to give a visual indication when exact balance is obtained. The down force is applied by a sliding weight on the arm
tube, and this is calibrated from O to 4 grams. A lightweight metal headshell is fitted as standard. this being detachable.
Cartridges of V2" fixing centre can be accommodated, and a protractor is supplied to set for minimum tracking error.
An arm lift is provided which is viscous damped. The top of the quadrant arm is fitted with a special rubber pad to
avoid drift when the arm is raised and lowered. Only a single hole fixing is required to mount the pick-up arm to the
turntable platform.

SPECIFICATION

ARM LENGTH, pivot to stylus~Nominal 8 7/16" TURNTABLE HEIGHT-Suitable for use with turntables of
from stylus to pivot l" to 1%" height

CARTRIDGE ACCEPTANCE-Standard V2 mounting TRACKING ERROR-Zero at 2.375" arranged for minimum
centres. A counter-balance to cover cartridges from distortion
58 grams HEADSHELL MASS-7 grams

EFFECTIVE MASS-Excluding cartridge 1012 grams Typical vertical 10mg

LOW FREQUENCY RESONANCE-With high LATERAL BALANCE-A ball spirit level mounted above
compliance cartridges 6-10Hz unipivot for visual indication of accurate balance in both

planes for stability and optimum cartridge performance.

. ' Adjustment by a threaded out-rigger with weight for
BIAS-Applied by nylon thread and a combination of critical balance

m t .H ' t
we'9 5 ° cove d eqweme" s CABLE CONNECTIONS-Either phono plugs, colour coded.
LEAD LENGTH-1 metre or DIN

REAR OVERHANG-Z 3/8" radius clearance to rear FINISH ~Anodised aluminium, black and polished chrome
from pivot centre

PIVOT-Viscous damped unipivot

Sole Manufacturers

A. R. Sugden & Co. (Engineers) ltd., Brighouse, West Yorkshire. England, H06 IES
