concept ce h owners manual

Extracted text from concept ce h owners manual (Ocr-read)

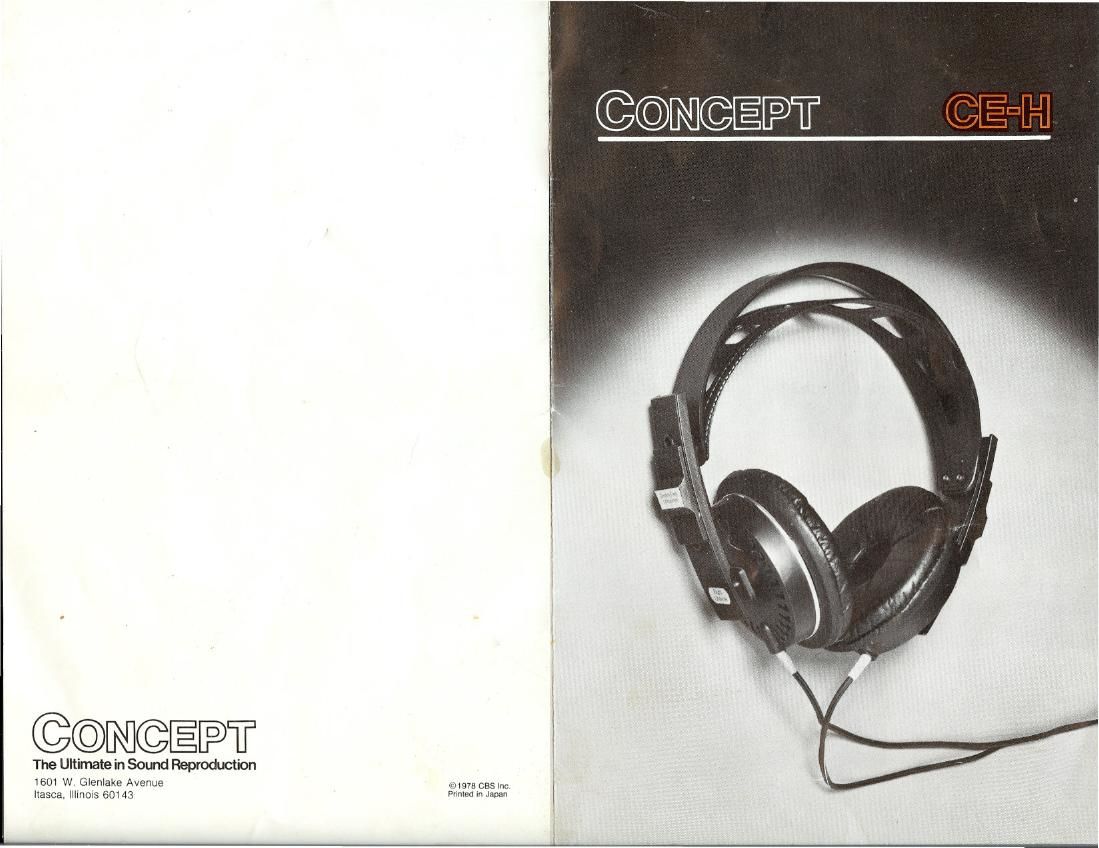

Page 1

©©N©EPT

@@[N]©E[P>T

The Ultimate in Sound Reproduction
1601 W Glenlake Avenue

4973 CBS \nc
nasca. leols 60143 anea m Japan

Page 2

Concept CE-H

Thank you for selecting the
Concept CE-H Constant Energy
Stereo Headphone. We at Concept
share your interest in the
achievement of the ultimate in sound
reproduction and feel that you will
best appreciate our latest step toward
this goal it you first understand the
design philosophy and engineering
features incorportated in the CE-H
Headphone.

The Orthodynamic design
approach makes use of the latest
technology to provide the flattest
response with the least distortion. To
begin. the radiating diaphragm is a
round sheet of thin. corrugated plastic
with extremely low mass for
impeccable transient response and
undistorted highs. A series of spiral-
wound aluminum voice coils cover
.the entire surface of the diaphragm.
This diaphragm/voice coil unit is

sandwiched between two powerful
disc magnets which are perforated to
allow transmission of sound from the
vibrating diaphragm.

The effect of these design features
is easily distinguishable when
listening to the CE-H Headphone. The
whole surface of the low-mass. high
compliance diaphragm vibrates in-
phase across the entire audio
spectrum. resulting in flawless bass
and stunning highs-with distortion
suppressed to absolutely inaudible
levels.

Additionally, the spiral wound voicé
coil arrangement assures a purely
resistive (non-inductive) load-the
perfect kind of load for any quality
amplifier. This constant load provides
an additional measure of freedom
from high frequency loss and
distortion.

Constant Energy Orthodynamic diaphragm

Specifications

Frequency Response:
20-20000 Hz 1 3 dB
Minimum Power Input:
10mw
Maximum Power Input:
3w
Sensitivity Output SPL:
96 dB/mw
THD at 96 dB:
less than 025%
Driver Type:
Constant Energy Orthodynamic
Cord Length:
4 meters
Weight:
without cord. 10.5 oz. (3009)
with cord, 12.9 oz. (3709)

Limited Warranty

Your Concept headphones are covered by a
limited warranty against defects in materials
and workmanship for a period of three years
from the date of purchase Concept warranty
repair Will be performed only when your
purchase receipt is shown as proof of owner-
ship Defective parts will be repaired or
replaced without charge if these Concept head-
phones are returned to your dealer's store. as
shown on your purchase receipt. or to any
branch of that store where. in all cases.
authorized service will be available. Check the
yellow pages or white pages of your telephone
directory for the location nearest you. if
additional assistance is required. please write
to Concept at the address provided below
describing the malfunction. Concept will send
directions in writing

Charges for unauthorized service and trans-
portation costs are not reimbursable under this
warranty. Any damage or defect resulting from
unauthorized parts or services is not covered
by this warranty Any services performed by
other than a dealer authorized to perform such
services are not reimbursable under this
warranty

This warranty becomes void if the product
has been damaged by alteration. misuse.
accident or neglect. THE WARRANTOFI
ASSUMES NO LIABILITY FOR PROPERTY
DAMAGE OR ANY OTHER INCIDENTAL OR
CONSEQUENTIAL DAMAGE WHA TSOEVER
WHICH MAY RESULT FROM THE FAILURE
OF THIS PRODUCT. Any and all warranties of
MERCHANTABILITY and of FITNESS implied
by law are limited to the duration of this
expressed limited warranty

Some states do not allow limitations on how
long an implied warranty lasts. so the above
limitations may not apply to you. Some states
do not allow the exclusion or limitation of
inCIdental or consequential damages. so the
above limitation or exclusion may not apply to
you

This warranty gives you specific legal rights
and you may also have other rights which vary
trom state to state

Service Manager

Concept

CBS Inc.

1601 W. Glenlake Avenue
Itasca. lilinOIs 60143
