Classe audio omega stereo brochure

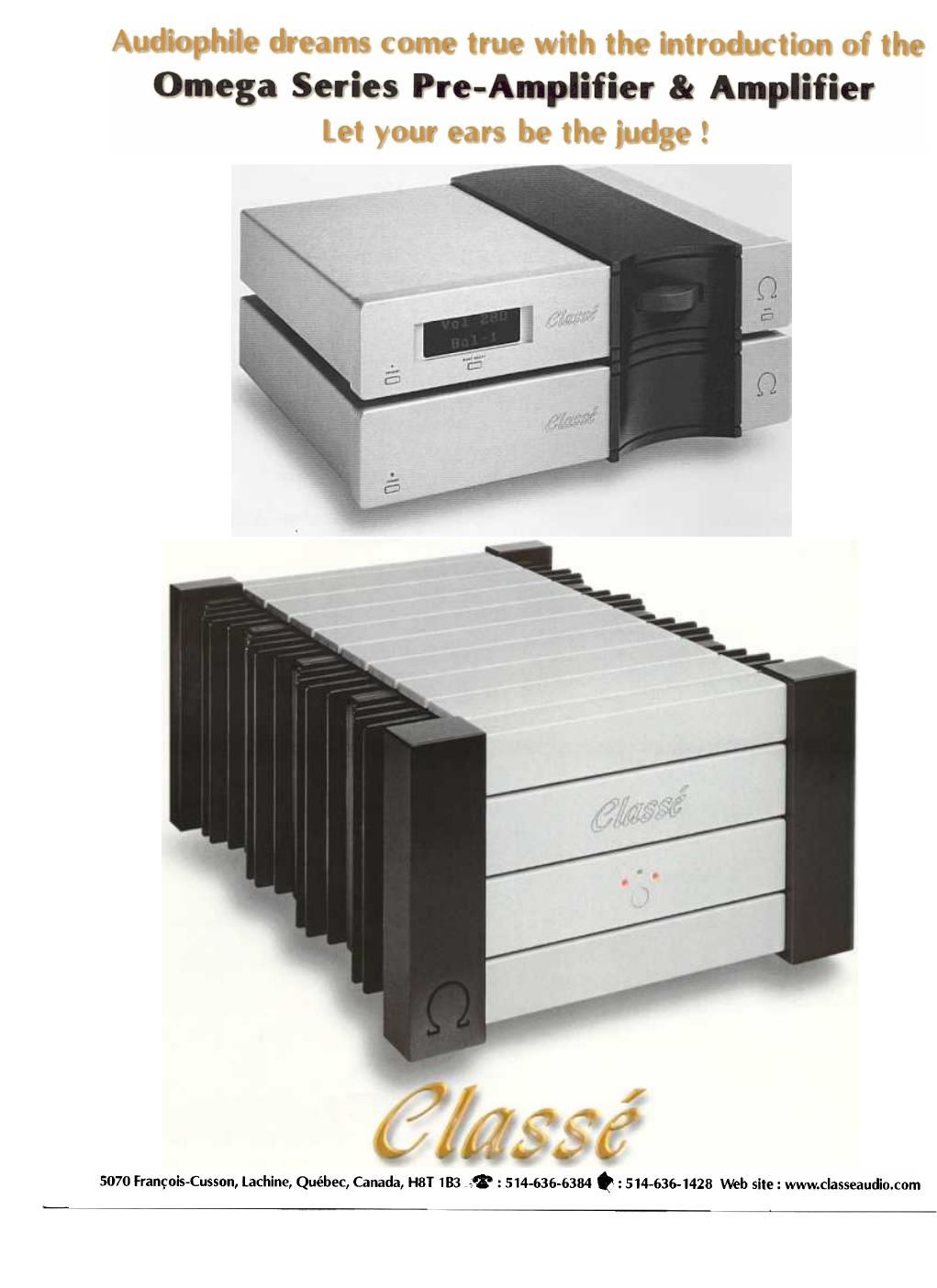

Page 1

Audiophile dreams come true with the introduction of the
Omega Series Im-Amplifier 8: Amplifier
Let your ears be the judge !

6151556

5070 Francois- Cusson, Lachine Québec Canada, H8T 1 B3 514-636 6384 Q: 514- 636- 1428 Web site. www. classeaudio. com

Page 2

The new OMEGA SERIES thus far includes an extraordinary Dual Monaural Amplifier and a Dual
Monaural Pre-amplifier, both with Ultra High performance. The OMEGA SERIES represents a totall
new circuit philosophy for Classé, based on knowledge gained during our long history of designing and
producing world class High End Audio. One of the early OMEGA concept determinants was that cost
would be no barrier to design requirements.

The OMEGA SERIES Amplifier is two separate amplifiers on one chassis, each with fully balanced
circuitry. Because power supply is so important the design includes two AC cords, two massive Torr
transformers, and two huge storage reserves. An OMEGA amplifier will deliver thirty-six hundred watts
per channel into a one ohm load.

The OMEGA SERIES Pre-amplifier has Dual Monaural design, with fully balanced circuits input to
output. Designed with the same philosophy as the OMEGA Amplifier, the OMEGA Pre-amplifier h;
dual power supplies, superb voltage regulation at all stages, and is constructed with the highest quality,
narrowest tolerance parts.
Sonically, an OMEGA is without equal. The OMEGA sound is effortless, clean and detailled, smooth
and solid, without any added or subtracted tone. You will be amazed at their ability to produce any
audio signal faultlessly through any speaker. The best CDs and LPs will give you the magical feeling of
being there. Listening through the OMEGA SERIES is a continuous adventure of finding new richness,
detail and new levels of feeling in every selection of music you play.

A quality of performance you can only compare to live .

OMEGA SERIES AMPLIFIER

Dual Power supplies, including :

2 X 2,500 VA Toroid transformers,
each with its own AC cord.

More than 2 X 100,000uF main storage reserves.

2 X Sixteen Bi-Polar ( high voltage, high current ) output
transistors per amplifier: ( 32 total )

Metalized polypropylene capacitors bypassing
each output device. ( 32 total )

Large Solar metalized polypropylene caps
on the DC supplies. ( 8 total )

Discrete, high voltage, high current voltage regulation for
the pre-driver and input sections.

Wiring and Connections :

Heavily Gold Plated Power Supply Bars connecting all
supplies of the output transistors. ( 4 total )

Heavily Gold Plated Output Terminals, coupled via Heavily
Gold Plated Connectors. ( 8 total )

Oxygen free copper wiring.

Signal carrying cables are Litz shielded,
to minimize skin effect.

Heavily Gold Plated Balanced Input Connectors ( XLR)

Heavily Gold Plated Single Ended Input Connectors ( RCA)

Amplifier Circuitry and Components :

Symmetrical design from input to output.

0.5% Metal Film Resistor.

Input is a matched pair of extremely low distortion,
low capacitance JFETs.

MOSFET pre-drivers.

Matched Bipolar High Voltage, High Current,
High Gain Output Transistors.

OMEGA SERIES PRE-AMPLIFIER

Inputs :

3 Pair Balanced ( XLR )

3 Pair Single Ended ( RCA )

Tape( 1 Pair Balanced ( XLR ) and Single Ended (RCA
Outputs :

2 Pair Balanced ( XLR )

2 Pair Single Ended ( RCA )

Tape Out :
1 Pair Single Ended ( RCA)

Features :

Dual Monaural, with two completely separate
power supplies ( In a single separate chassis

Truly Balanced from input to output

Fully Symmetrical circuitry from input to output

High Performance discrete voltage regulation at
all amplification stages.

Full Remote Contro

glass?

Let your ears be the judge
