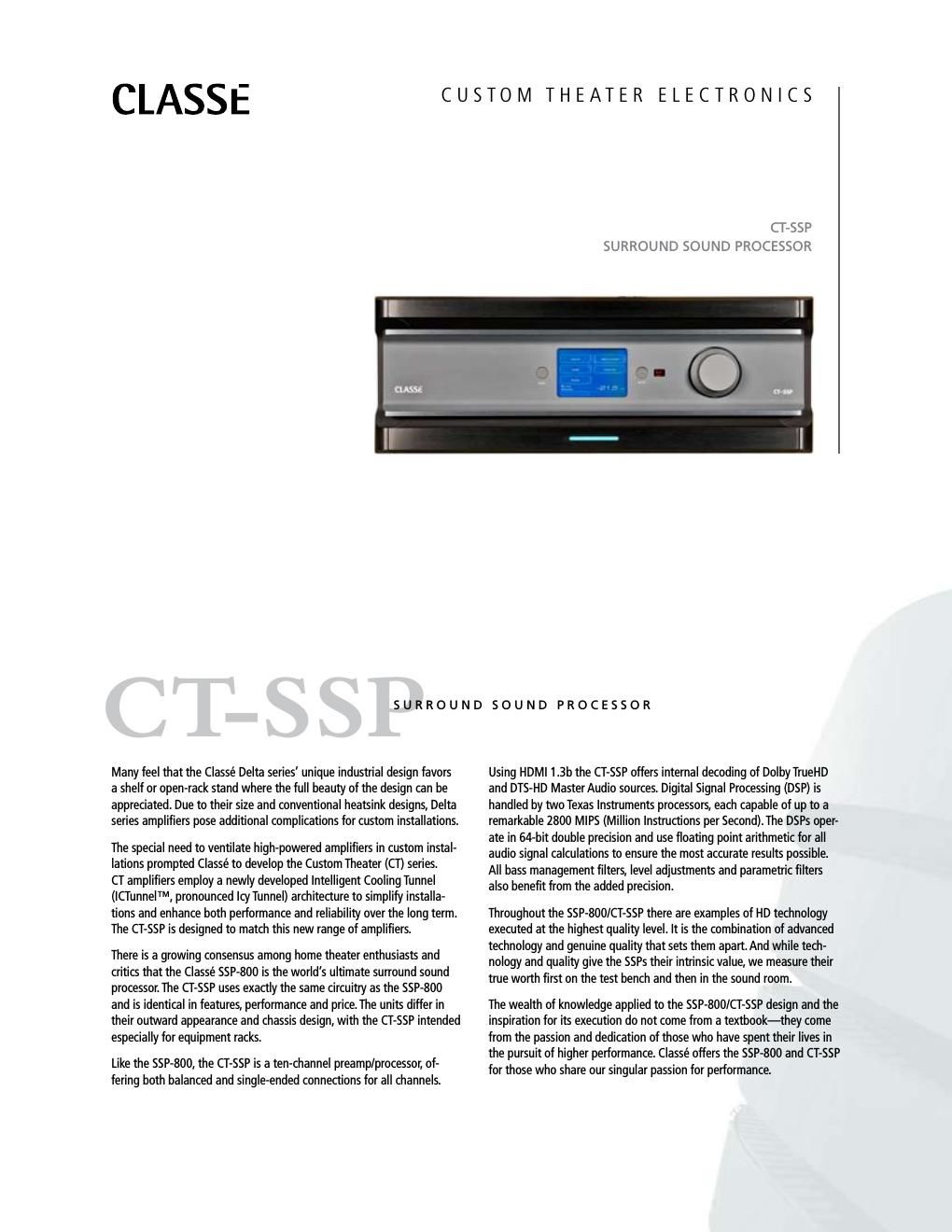

Page 1

CUSTOM THEATER ELECTRONICS CT-SSP SURROUND SOUND PROCESSOR USA & Canada - Classé Audio Inc. 5070 François Cusson - Lachine - Quèbec - Canada - H8T 1B3 Tel +1.514.636.6384 - Fax +1.514.636.1428 www.classeaudio.com - email: cservice@classeaudio.com Inputs and outputs HDMI 1.3 4 in / 2 out Component 2 in / 1 out S video 2 in Composite 2 in COAX 4 in / 1 out Optical 4 in / 1 out Analog XLR 1 pair in / 5 pair out Analog RCA 1 set 7.1 in / 2 pair in / 5 pair out DC trigger out 2 IR 1 in / 1 out CAN Bus 1 in / 1 out USB 1 RS-232 1 Video measurements Input impedance 75 ohms Composite / s video / component Output impedance 75 ohms Component HDMI Fully 1.3 compliant supporting 1080p @ 24/50/60fps, 36-bit deep color and xvYCC Audio measurements Maximum output level 8vrms Single ended 15vrms Balanced Maximum input level 2vrms Single ended via DSP 6vrms Single ended via bypass 4vrms Balanced via DSP 12vrms Balanced via bypass Output impedance 56 ohms Input impedance 100kohms Total harmonic distortion 0.001% Digital source / Bypassed analog source 0.002% Processed analog source Prices and specifications subject to change. We are not responsible for typographical errors. Printed in Canada on recycled stock.Dolby, Pro logic, Dolby TrueHD and the double-D symbol are registered trademarks of Dolby Laboratories. DTS is a registered trademark & the DTS logos and Symbol are trademarks of DTS, Inc. Frequency response 20Hz – 200kHz <0.1dB Stereo analog bypass 20Hz – 20kHz <0.2dB All other sources Signal to noise ratio 102dB Bypassed analog source 100dB Processed analog source 105dB Digital source Audio formats Dolby Digital Surround EX Dolby Digital 5.1 Dolby Digital Plus Dolby TrueHD DTS-ES discrete DTS 3/2/1 DTS 96/24 DTS-HD High Resolution Audio DTS-HD Master Audio 24bit/32-192kHz PCM Post processing modes Dolby pro logic IIx DTS-ES matrix DTS Neo:6 Mono Mono plus Stereo (downmix) Music plus Movie plus Party Video conversion Composite / s video to component and HDMI Component (upto 720p-1080i) to component and HDMI HDMI to HDMI Dimensions Width (including faceplate) 19 (483mm) Width (excluding faceplate) 17 (432mm) Depth 16.375 (416mm) (excluding connectors) Height 6.97 (177mm) Gross weight 49lb (22.3kg) Net weight 33lb (15kg)
