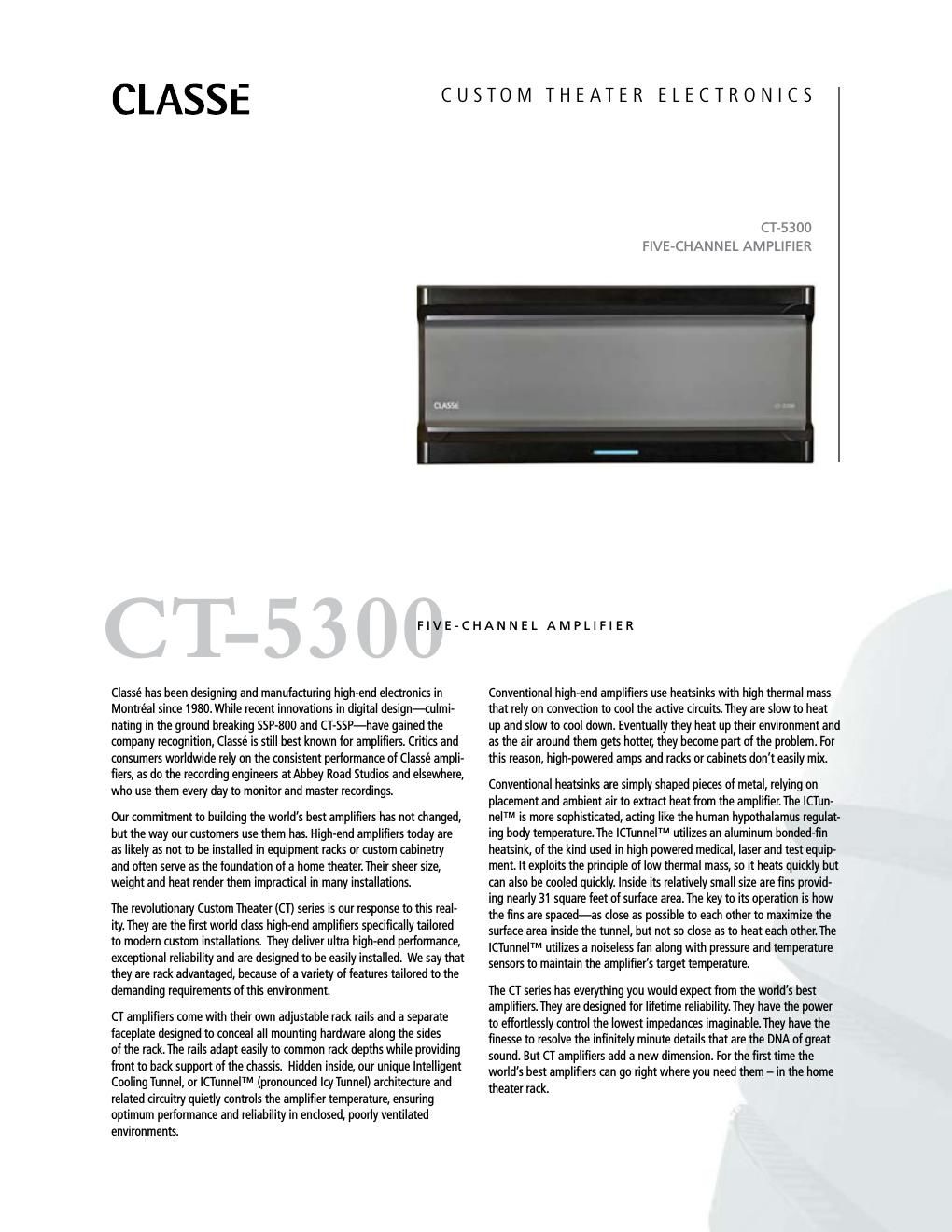

Page 1
CUSTOM THEATER ELECTRONICS CT-5300 FIVE-CHANNEL AMPLIFIER All tests un-weighted and 500kHz measurement bandwidth (except SNR). Frequency response 1Hz – 80kHz, -3dB Output power 300W rms into 8Ω (24.8 dBW) Harmonic Distortion <0.002% at 1 kHz balanced <0.004% at 1 kHz single ended Peak Output Voltage 167V peak to peak, 53V rms no load 156V peak to peak, 48V rms into 8Ω Input Impedance 50kΩ balanced / single ended Voltage gain 29dB balanced / single ended Input level at clipping 2.1V rms balanced / single ended Intermodulation Distortion >90dB below fundamental into 8Ω balanced / single ended >85dB below fundamental into 4Ω balanced / single ended Signal to Noise Ratio -116dB at peak output into 8Ω Measurement Bandwidth: 22kHz Output impedance 0.03Ω @ 1kHz Standby power consumption 6W @ 120V; 7W @ 230V Rated power consumption 1020W @ 1/8th power into 8Ω Width (including faceplate) 19 (483mm) Width (excluding faceplate) 17 (432mm) Depth (excluding connectors) 23.625 (569mm) Height 8.75 (221mm) Gross weight 140lbs (59.5kg) Net weight 113lbs (51.25kg) Mains voltage Specified on rear panel USA & Canada - Classé Audio Inc. 5070 François Cusson - Lachine - Quèbec - Canada - H8T 1B3 Tel +1.514.636.6384 - Fax +1.514.636.1428 www.classeaudio.com - email: cservice@classeaudio.com Prices and specifications subject to change. We are not responsible for typographical errors. Printed in Canada on recycled stock. PRELIMINARY SPECIFICATIONS
