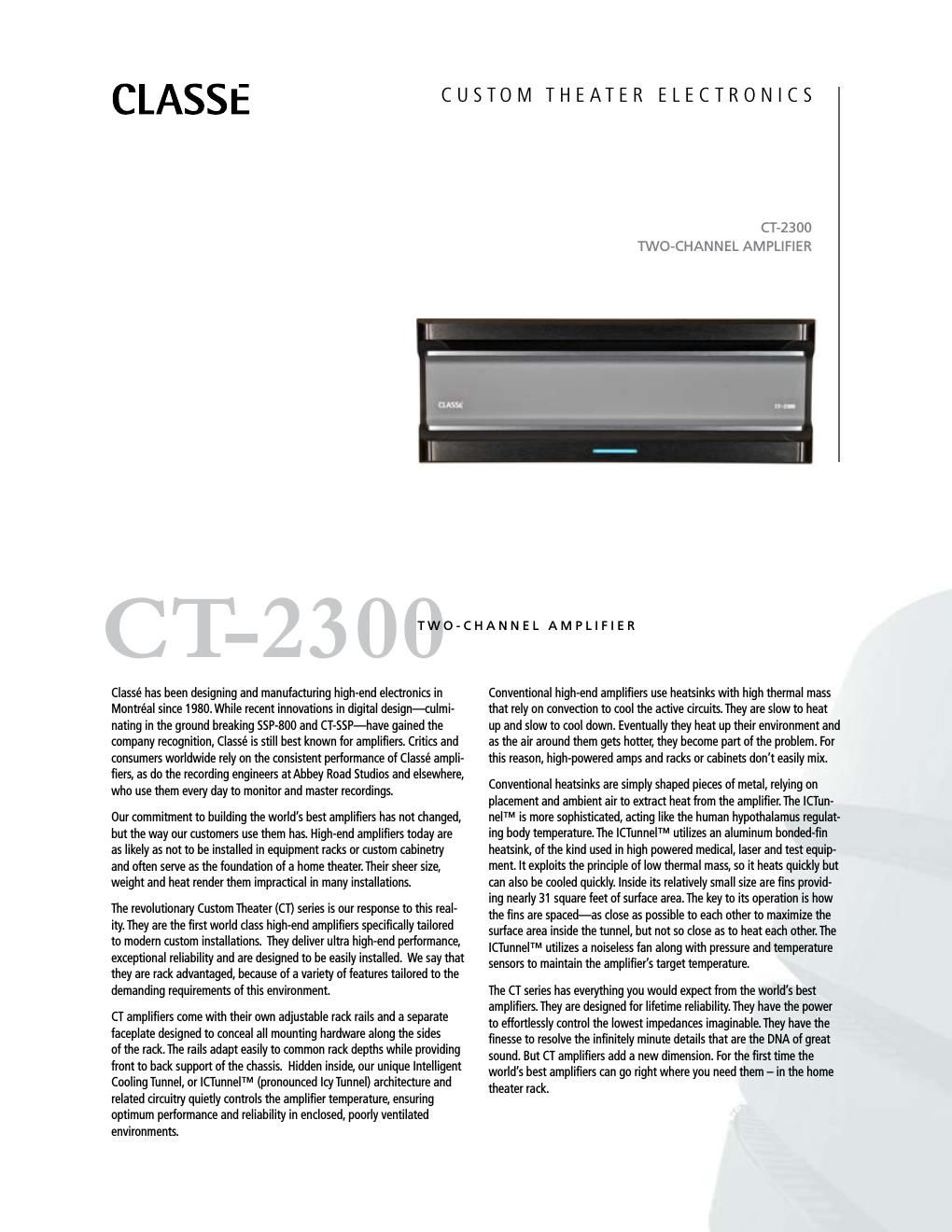

Classe audio ct 2300 brochure
This is the 2 pages manual for classe audio ct 2300 brochure.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from classe audio ct 2300 brochure (Ocr-read)
Page 1
CUSTOM THEATER ELECTRONICS CT-2300 TWO-CHANNEL AMPLIFIER All tests un-weighted and 500kHz measurement bandwidth (except SNR). Frequency response 1Hz – 80kHz, -3dB Output power 300W rms into 8Ω (24.8 dBW) 600W rms into 4Ω (24.8 dBW) Both channels driven Harmonic Distortion <0.002% at 1 kHz balanced <0.004% at 1 kHz single ended Peak Output Voltage 150V peak to peak, 53V rms no load 136V peak to peak, 48V rms into 8Ω Input Impedance 50kΩ balanced / single ended Voltage gain 29dB balanced / single ended Input level at clipping 1.88V rms balanced / single ended Intermodulation Distortion >90dB below fundamental into 8Ω balanced / single ended >90dB below fundamental into 4Ω balanced / single ended Signal to Noise Ratio -116dB at peak output into 8Ω Measurement Bandwidth: 22kHz Output impedance 0.015Ω @ 1kHz Standby power consumption 3W @ 120V; 5W @ 230V Rated power consumption 420W @ 1/8th power into 8Ω Width (including faceplate) 19 (483mm) Width (excluding faceplate) 17 (432mm) Depth (excluding connectors) 18.625 (473mm) Height 6.97 (177mm) Gross weight 109lbs (49.5kg) Net weight 89lbs (40.5kg) Mains voltage Specified on rear panel USA & Canada - Classé Audio Inc. 5070 François Cusson - Lachine - Quèbec - Canada - H8T 1B3 Tel +1.514.636.6384 - Fax +1.514.636.1428 www.classeaudio.com - email: cservice@classeaudio.com Prices and specifications subject to change. We are not responsible for typographical errors. Printed in Canada on recycled stock.
