classe audio cav 75 brochure

Extracted text from classe audio cav 75 brochure (Ocr-read)

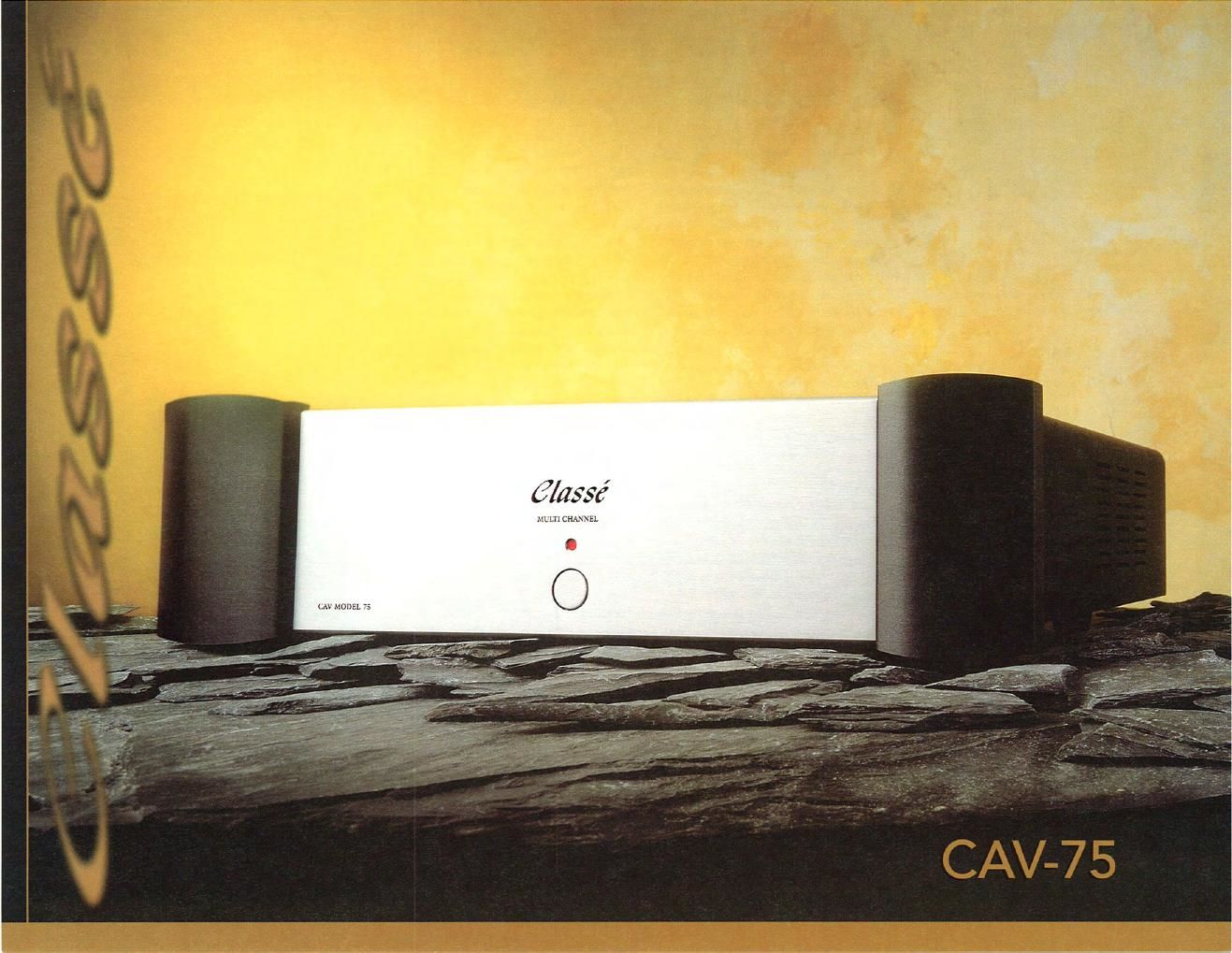

Page 1

6/4556

mum CHANNEL

aw MODEL 75

Page 2

CAV-75

Features and specifications:
I a ..

CAI/175 Features .-

6-Channel Power amplifier

75 watts/channel, switching
Capability for different channel
configurations. Custom Classé inter»
nal heat sinks, thick curved faceplate

with sculpted one piece handles.

CAI/175 Sectifitations : >7 ..

Frequency response:

ZOHZ to ZOKHZ :0.1 db
seamen¥,

0.85 Volts in for rated output
Wilmeedunce:

75 KOhm

OutLut Impedance:
0.15 Ohm

More than 135 db

THD + N:
0.004%
Maximum power
and Channel configuration
megabit: (and:

Six (6) Channels if

- 75 Watts x 6

Five (5) Channels

- 150 Watts x 1 (bridged)

- 75 Watts x 4

Four (4) Channels

- 150 Watts x 2 (bridged)

- 75 Watts x 2

Three (3) Channels

- 150 Watts x 3 (bridged)

Planer tansumgtian (idle):

73 W V
pimensiunfi »

Gross : 10.257" x 21" x 19

Net: 5.5 x 19"x15"

VVeig

Cross: 43 lbs / Net: 40 lbs

Classé Audio, Inc. shares a
dream with its clients - the true
recreation of a live performance.
Our devotion to the creation of
audio and home theater products
of impeccable quality is an
approach that an audiophile
magazine recently called a
combination of art and science
(that) exemplifies the best that
high-end audio has to offeri
This remarkable achievement is
reflected in our worldwide
reputation for unsurpassed
musical performance, reliability,
consistency, and overall value.
Classés philosophy is one of
technological evolution, not
revolution. Building on what we
know works.

All Classé amplifiers share a
common, unique design. Each
model employs a massive,
shielded toroidal nansformer to
power our sophisticated, high-
speed circuitry. In most high-
end amplifiers, this power is sent
to a small number of large
reservoir capacitors for distribu-
tion. However, large capacitors
are often slow in responding to
the rapidly fluctuating energy
demands of music. The ingenious
Classé solution uses a large
number of small capacitors
distributed throughout each
amplifier which are located in
close proximity to the circuits
they supply. The result is a
lightening-quick response creat-
ing fabulous dynamics coupled

with a more natural sound!
Microphonics, caused by com-
ponent vibration and magnetic
interference from the passage of
electric current through them,
has plagued audio designers
since the beginning of recorded
sound. Isolation is the key. At
Classé, we begin with a unique
front-end circuit topology that
mechanically decouples vibration-
sensitive components from all
sources of vibration. In addition,
our transformers rest on a
specially designed plate to draw
magnetic fields away from the
circuitry.

Bl-POLAR? MOSFET? J-FET?
Most high-end amplifiers use
only one type of transistor. At
Classé, we use all three in a
unique sequence that makes the
most of their particular voltage
and input impedance character»
istics. In addition, we have
designed small but highly
efficient extruded aluminum
heat sinks that disperse transistor-
generated heat, ensuring maxi-
mum output without distortion.

The CAV-75 offers complete
flexibility for use in a wide range
of home theatre applications
The six channels of the CAV-75
can be easily customized to meet
the amplification needs of the
most demanding home theatre
systems.

Classe' Audio Inc, 5070 Francois-Cusson,
Lachine, Quebec, Canada HST 1B3
Tel; (514) 6366384 Fax: (514) 636-1428
