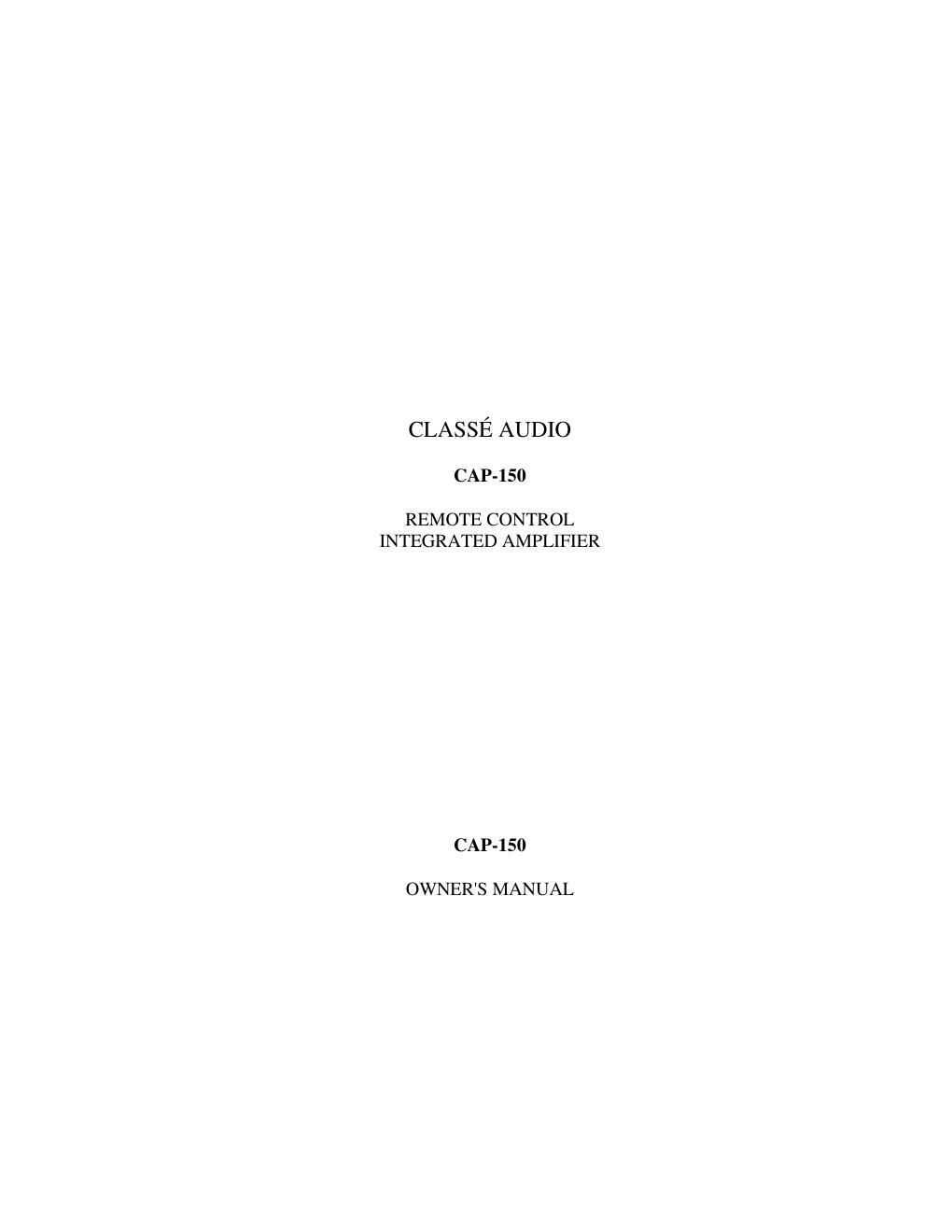

Classe audio cap 150 owners manual
This is the 24 pages manual for classe audio cap 150 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from classe audio cap 150 owners manual (Ocr-read)
Page 1
CAP150, Issue 1, Oct. 97 2 CLASSÉ DESIGN PHILOSOPHY 1. REPEATED LISTENING DESIGN SESSIONS Fine tuning of sound by exchanging and mixing of parts (transistors, capacitors, wiring, PCB boards, etc.), and adjusting many specific operating voltages within proper engineering ranges, producing an overall sonic recipe giving the most natural harmonic realism of music typical of instruments in a live performance. 2. UPGRADABLE SINGLE CIRCUIT DESIGNS All Classé products (all preamps, all amps and integrated amplifier) share exactly the same circuit design philosophy (excluding moving coil and moving magnet phono circuits). This means all amplifiers and all high level circuits of the preamps benefit from the same design goals. Similar circuits are then tailored to different power levels, etc. Differences between less expensive models and more expensive models are parts quality and complement, power supply extravagance and the amount of filtering, etc. as well as features and packaging. This means that for years Classé has been constantly sonically fine tuning and technically upgrading this circuit design and its application, thus reaching a very high level of natural musical enjoyment, as well as excellent reliability which benefits all models - least expensive, most expensive, integrated amplifier, preamps and amplifiers alike. 3. EXTREME LONG LIFE IN REAL WORLD CONDITIONS Choosing the best attainable quality parts and materials combined with the advantages of the two above-mentioned areas provide Classé owners with years of proven trouble free reliability and musical enjoyment.
Page 2
CAP150, Issue 1, Oct. 97 3 CAP-150 OWNER'S MANUAL TABLE OF CONTENTS UNPACKING & SET-UP.................................................. 4 A.C. LINE POWER............................................................ 5 INPUTS............................................................................... 6 OUTPUTS .......................................................................... 8 FRONT PANEL CONTROLS............................................ 9 PROTECTION CIRCUIT.....…........................................... 13 FEATURES AND SPECIFICATIONS ………................. 21
