Classe audio ca 200 201 side heatsink service
This is the 24 pages manual for classe audio ca 200 201 side heatsink service.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from classe audio ca 200 201 side heatsink service (Ocr-read)
Page 1
Date: July 17, 2007

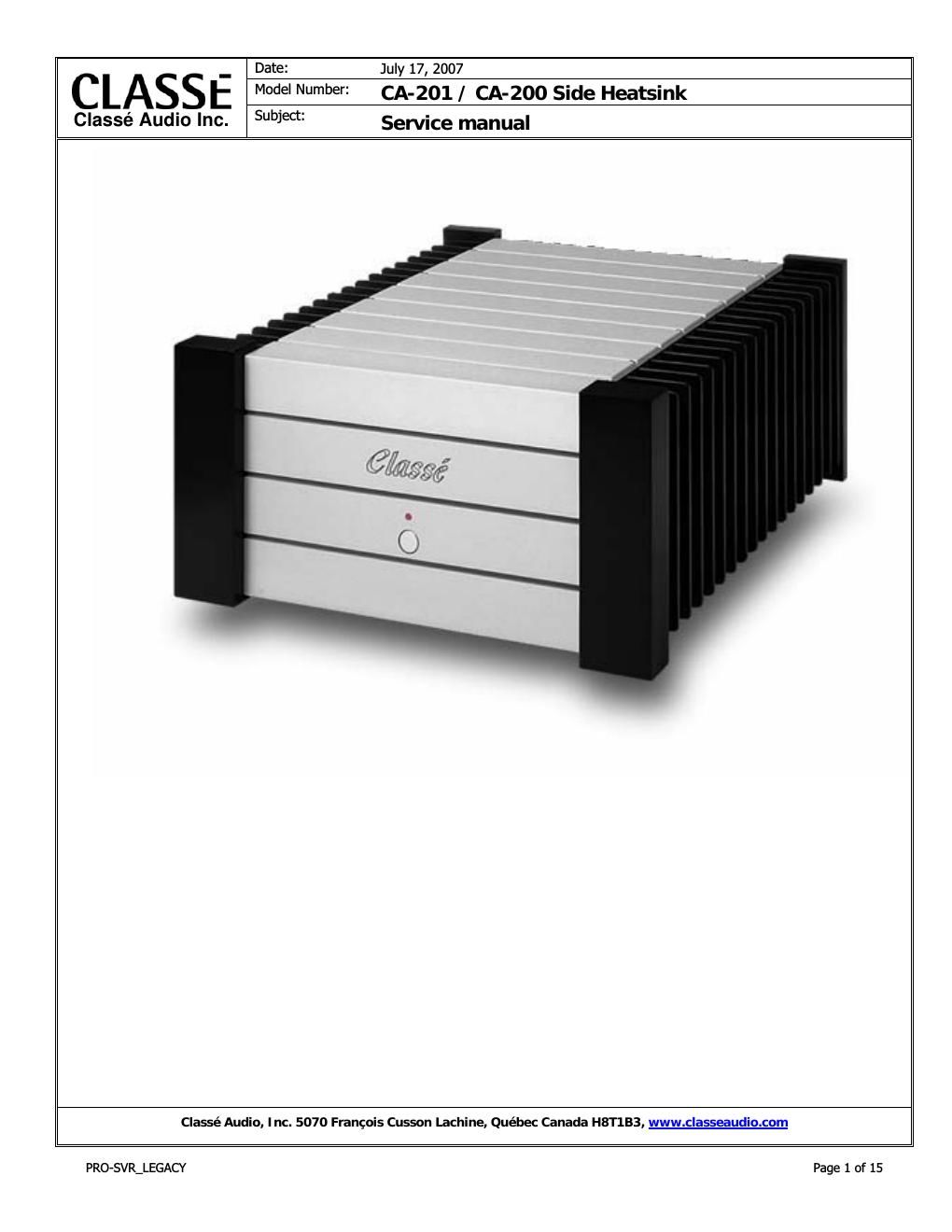

CLASS E M°de' Number: CA-201/ CA-200 Side Heatsink
Classé Audio Inc. SUbJ'ECt: Service manual
Classé Audio, Inc. 5070 Francois Cusson Lachine, Québec Canada H8T133, www.classeaudio.com
PRO-SVRiLEGACY Page 1 of 15
Page 2
Table of Contents
I ntroduction 3
I mportant Notes on Servicing 3
Ordering Replacement Parts 3
Block Diagrams 4
Start up Procedure 5
Protection Modes and I ndicators 6
Troubleshooting Guide 7
Output Transistors Testing and Replacement 8
Calibrations and Adjustments 9
Parts List 10
Updates 11
Fuses 12
Voltage Change 13
IR I nterface I nformation 14
Remote I nterface I nformation 15
Schematics 16
PRO-SVRiLEGACY
Page 2 of 15
